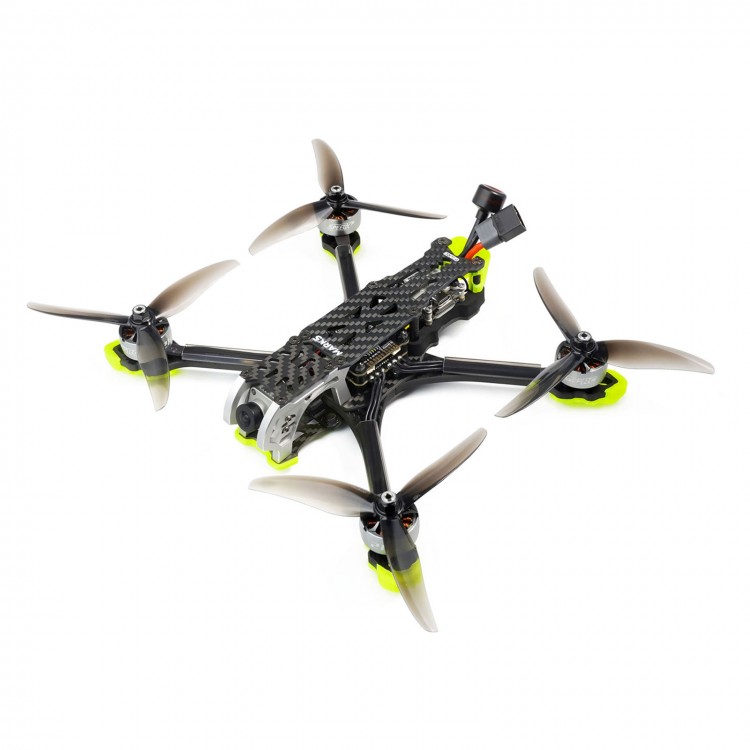

GEPRC MARK5 HD 5-Inch Freestyle FPV Drone FPV Quadcopter (for DJI Air Unit + R-XSR Receiver)

GEPRC MARK5 HD 5-Inch Freestyle FPV Drone FPV Quadcopter (for DJI Air Unit + R-XSR Receiver)

Description:
This is GEPRC new generation freestyle drone MARK5. We are proud to say the MARK5 HD quad is the best freestyle quadcopter in the market. It is now launched in three versions: HD AIR UNIT, HD VISTA and Analog.

MARK5 is developed specifically for freestyle with wide X-arm design. Unique shock absorbing structure design, less vibrations and resonance provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning but reduce weight and add more endurance. MARK5 is equipped with GEPRC's latest SPAN F722-HD-BT FC with high performance and lots of ports, supporting Bluetooth wireless connection for easy field tuning. Freshly upgraded SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC's latest 2107.5 motor, has great explosive power and very fast response speed. The new GEMFAN HQ Ethix S5 5x4x3 propellers provide delicate and silky smooth flight experience. The MARK5 is shipped with two different 3D printed action cam mounts that are for GoPro8/9/10, Naked GoPro8, Insta 360 GO2 and Caddx Peanut cameras. After continuous testing and tuning by GEPRC R&D team, we are proud to say, this is yet another GEPRC drone that comes perfectly tuned right out of the box. Just take it out and have fun!

We've been pursuing for lighter weight, better flying experience, and more functionality for all our products!

Features:
- The HD version comes with the HD System (for DJI) & the original Air Unit cam
- Aluminum alloy side plates not only look stunning but reduce weight and add more endurance
- Supports Bluetooth wireless connection for easy field tuning
- Developed specifically for freestyle with wide X-arm design
- A variety of receiver choices including our brand new ExpressLRS Rx
- Freshly upgraded SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC's latest 2107.5 motor, has great explosive power and very fast response speed
- Unique shock absorbing structure design, less vibrations and resonance
- Specially designed independent capacitor and buzzer compartment for better performance and shaking reduction.
- The new GEMFAN HQ Ethix S5 5x4x3 propellers provide delicate and silky smooth flight experience
- Shipped with two different 3D printed action cam mounts that are for GoPro, Naked GoPro8, Insta 360 GO2 and Caddx Peanut cameras
- MARK5 is the most ideal for freestyle flying and bando-bashing resistant

Specifications:
- Model: MARK5 HD AIR UNIT Quadcopter
- Frame: GEP-MK5
- Wheelbase: 225mm
- Top plate: 2.5mm
- Bottom plate: 2.5mm
- Arm plate: 5.0mm
- FC system: SPAN F722-HD-BT FC
- MCU: STM32F722
- Gyro: 6-Axis
- OSD: for BetaFlight OSD w/AT7456E chip
- ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
- VTX: AIR UNIT Module
- Camera: Air Unit Camera
- Charge connector: XT60
- Propeller: HQ Ethix S5 5x4x3
- Antenna: AIR UNIT Antenna or you can use GEPRC Momoda 5.8G LHCP MMCX Antenna Long Version
- Motor: SPEEDX2 2107.5-1960KV (6S Version) / SPEEDX2 2107.5-2450KV (4S Version)
- Optional Receiver: for PNP, Frsky R-XSR, TBS Nano RX, ELRS 915MHz, and ELRS 2.4G

Package Included:
- 1 x MARK5 HD AIR UNIT Quadcopter
- 4 x HQ Ethix S5 5x4x3 propellers (pair)
- 1 x Battery strap M15x250mm
- 2 x Battery straps M20x220mm
- 2 x Battery silicone pads
- 1 x Camera cage carbon fiber top plate
- 1 x 3D print mountings combination
- 1 x Action cam mount holder
- 1 x Set of screws
- 1 x Set of screwdriver
- 1 x Antenna fixed tube

Note:
- Camera and batteries are not included. LiPo 4S 1300mAh-1800mAh (4S version) / LiPo 6S 1050mAh-1550mAh (6S version) are recommended.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
