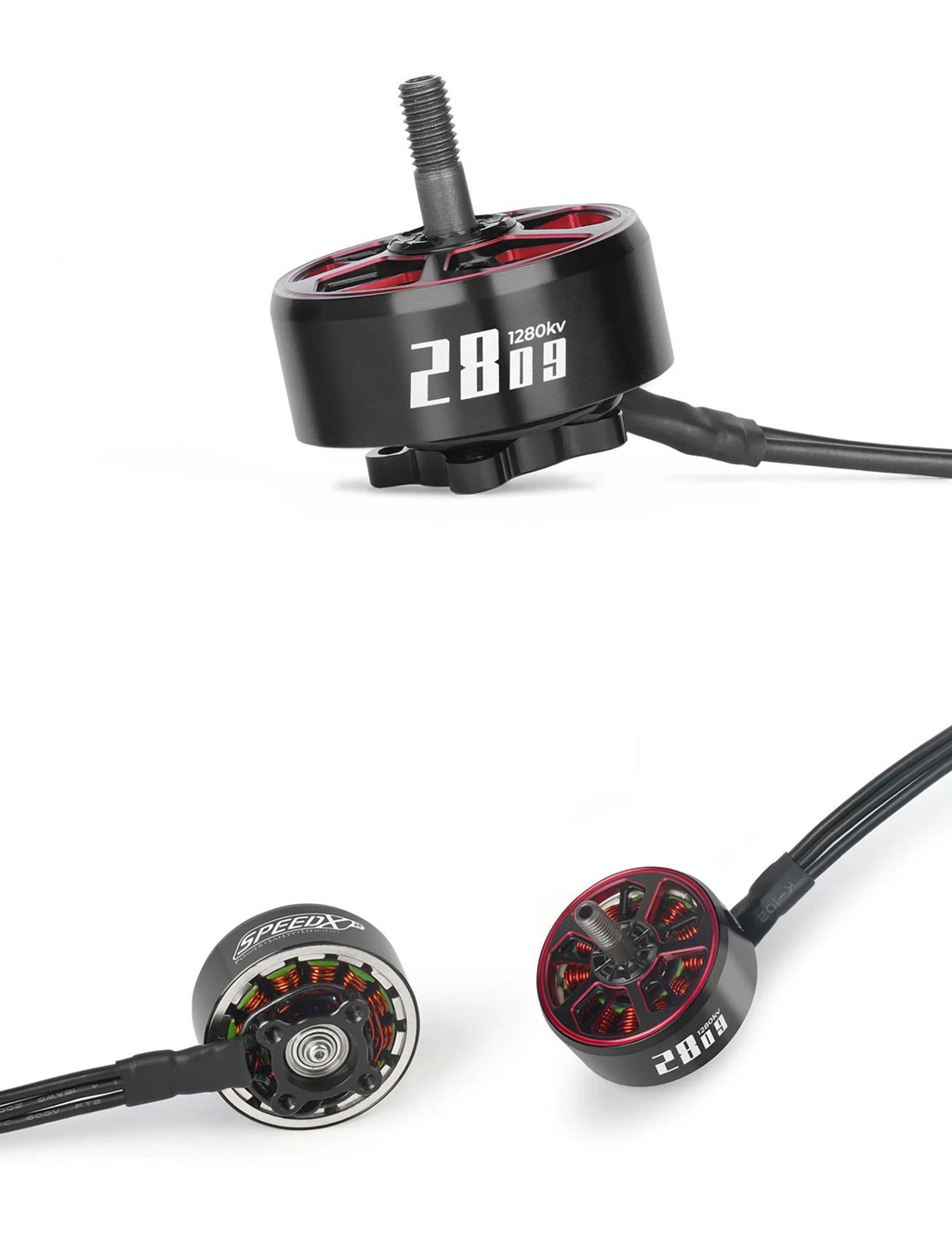

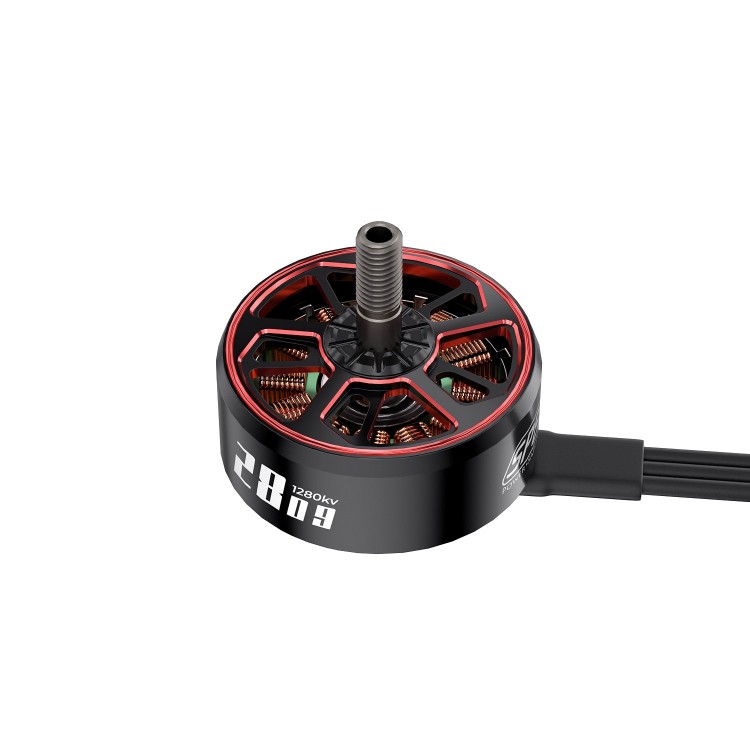

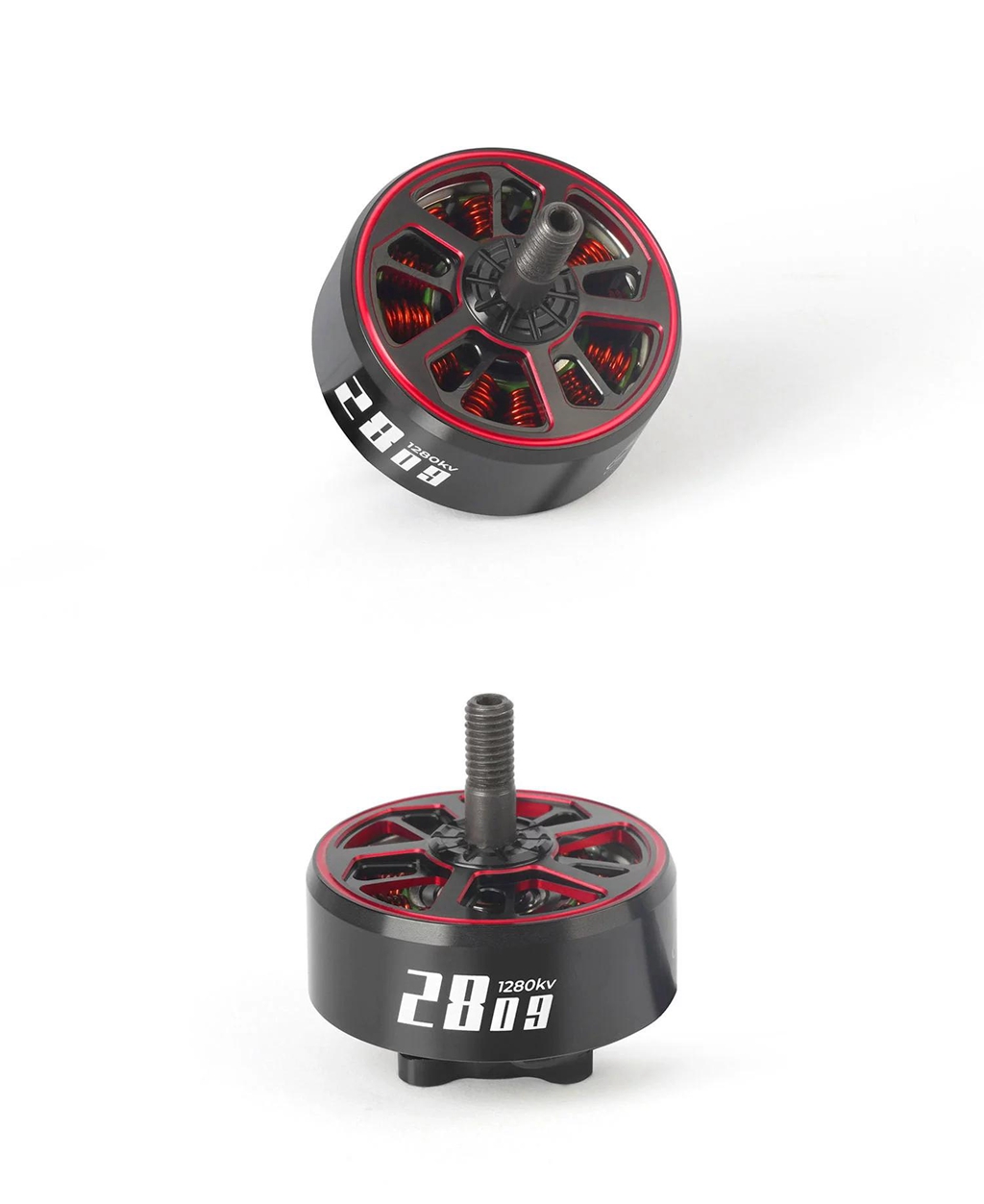

GEPRC SPEEDX2 2809 1280KV Aviation Aluminum Alloy High Efficiency Motor for 7-8 Inch FPV Racing Drone

GEPRC SPEEDX2 2809 1280KV Aviation Aluminum Alloy High Efficiency Motor for 7-8 Inch FPV Racing Drone

Description:
- The SPEEDX2 2809 motor is developed for a 7-8 inch large FPV drone. The stator is made of 0.2MM silicon steel sheets for Kawasaki. The magnetic steel uses N52SH, which improves the high temperature resistance by 30%.

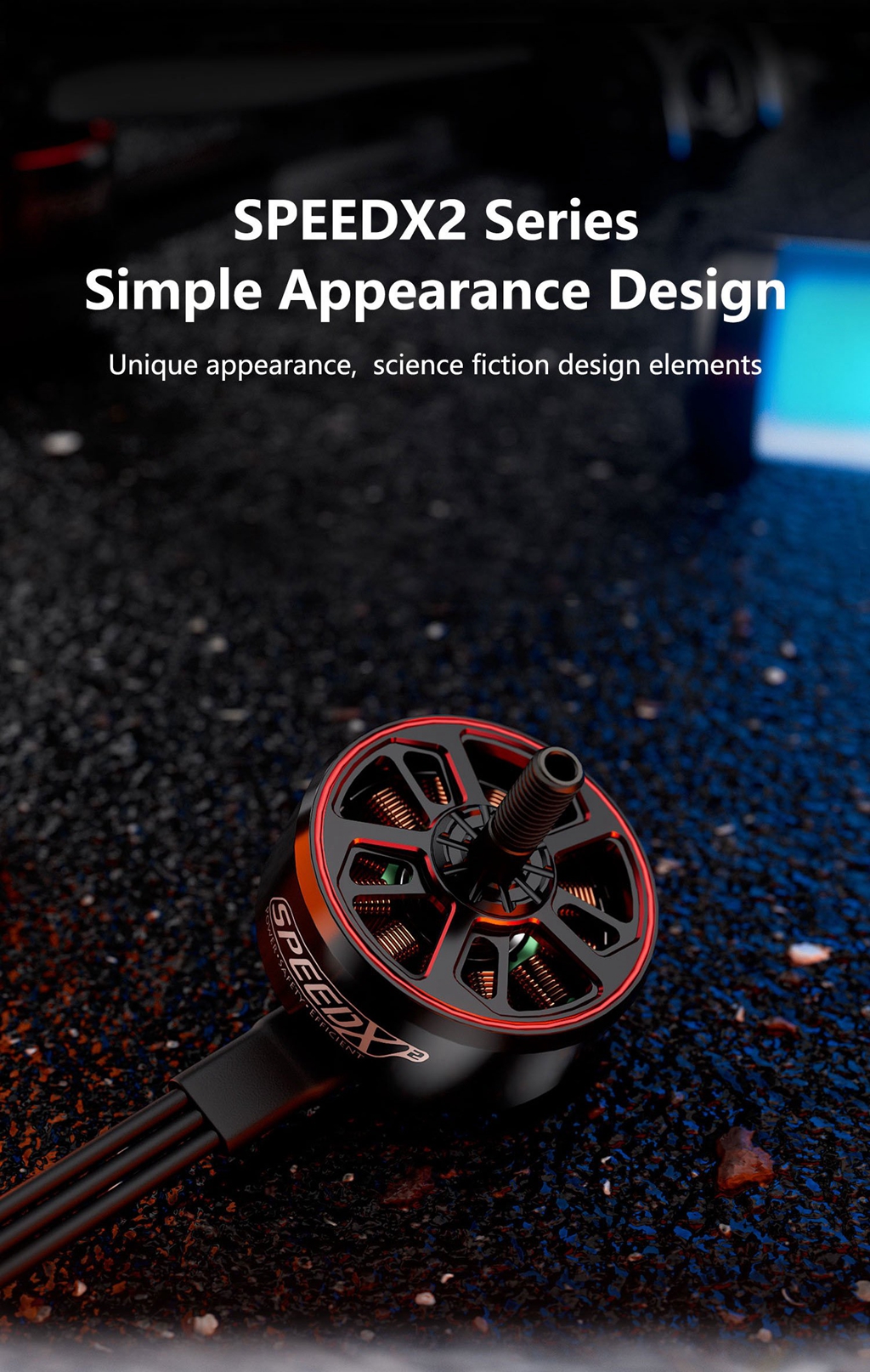

- In terms of appearance, the overall design is dark and red, with a delicate texture. The motor mounting hole is 19mm x 19mm.

Features:

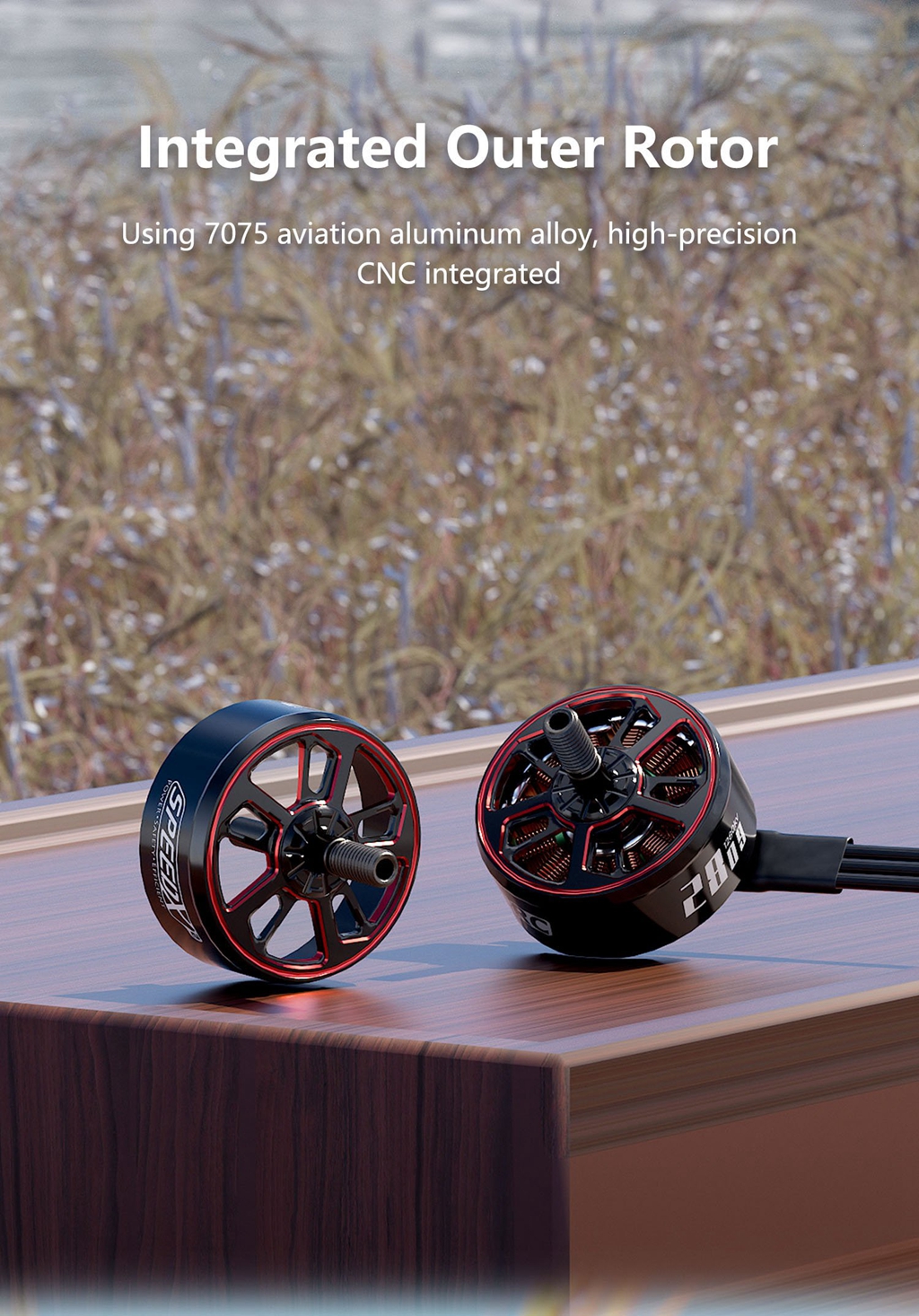

- Using 7075 aviation aluminum alloy, high-precision CNC integrated

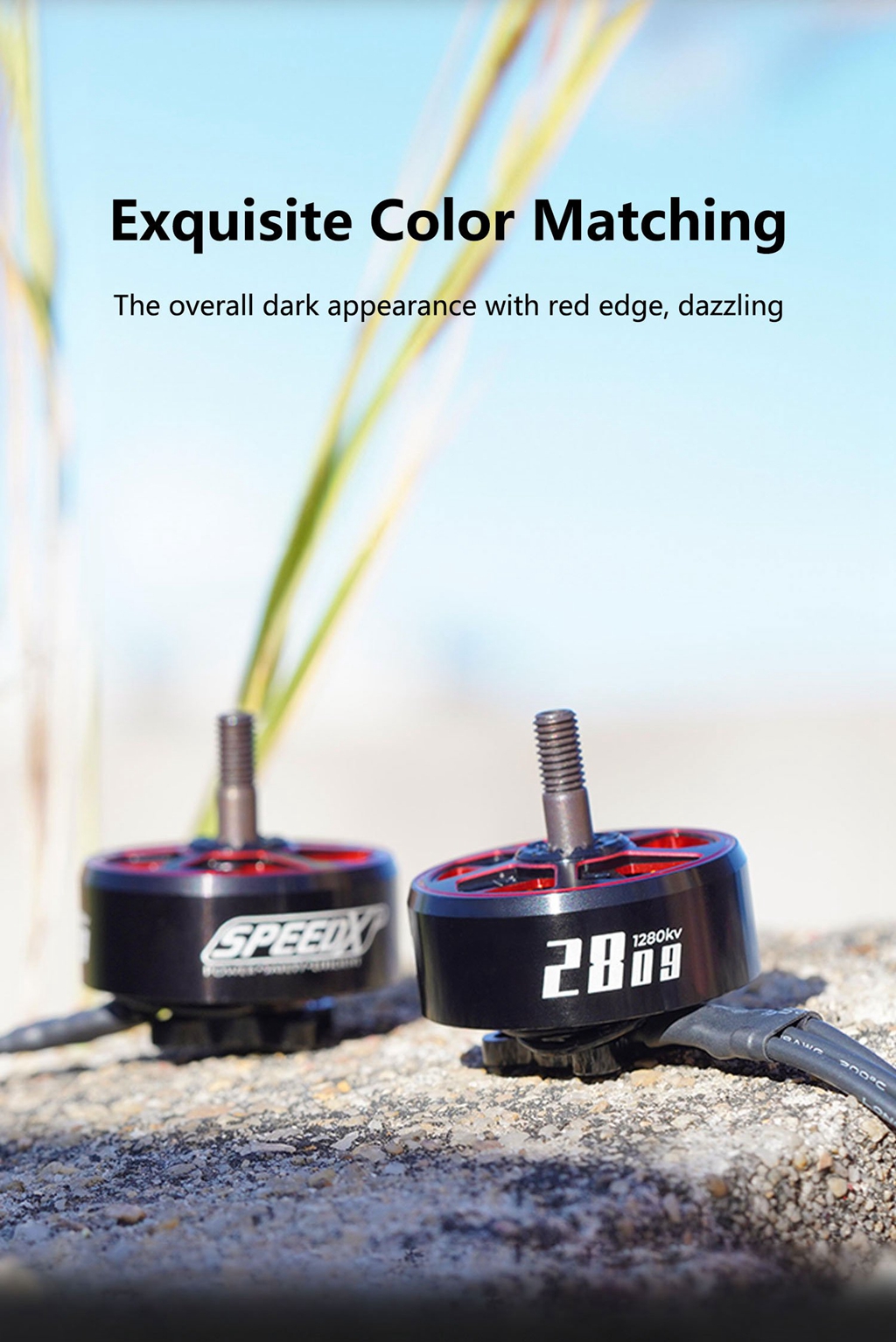

- Dark appearance with red side strips

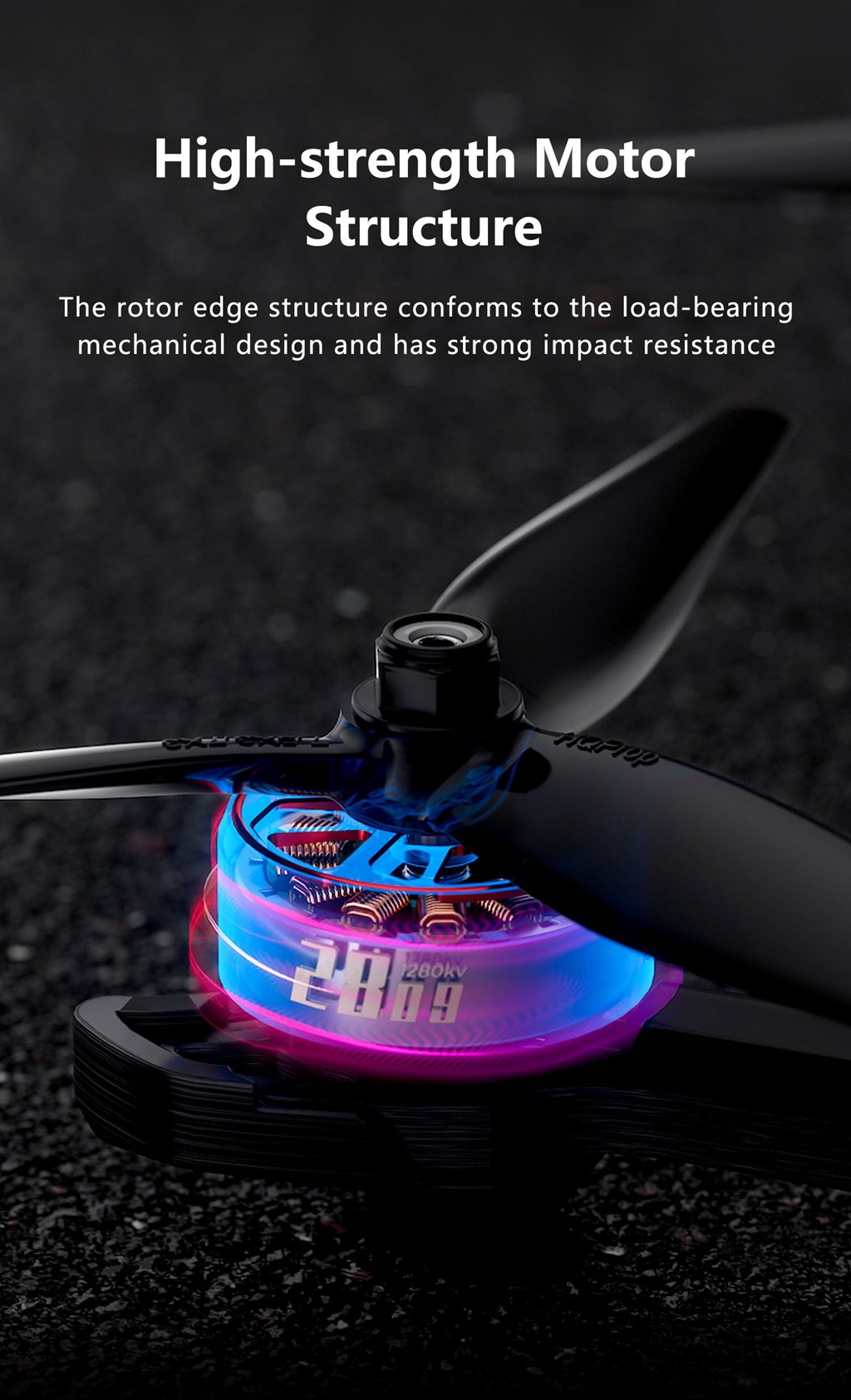

- The rotor edge structure conforms to the load-bearing mechanical design and has strong impact resistance.

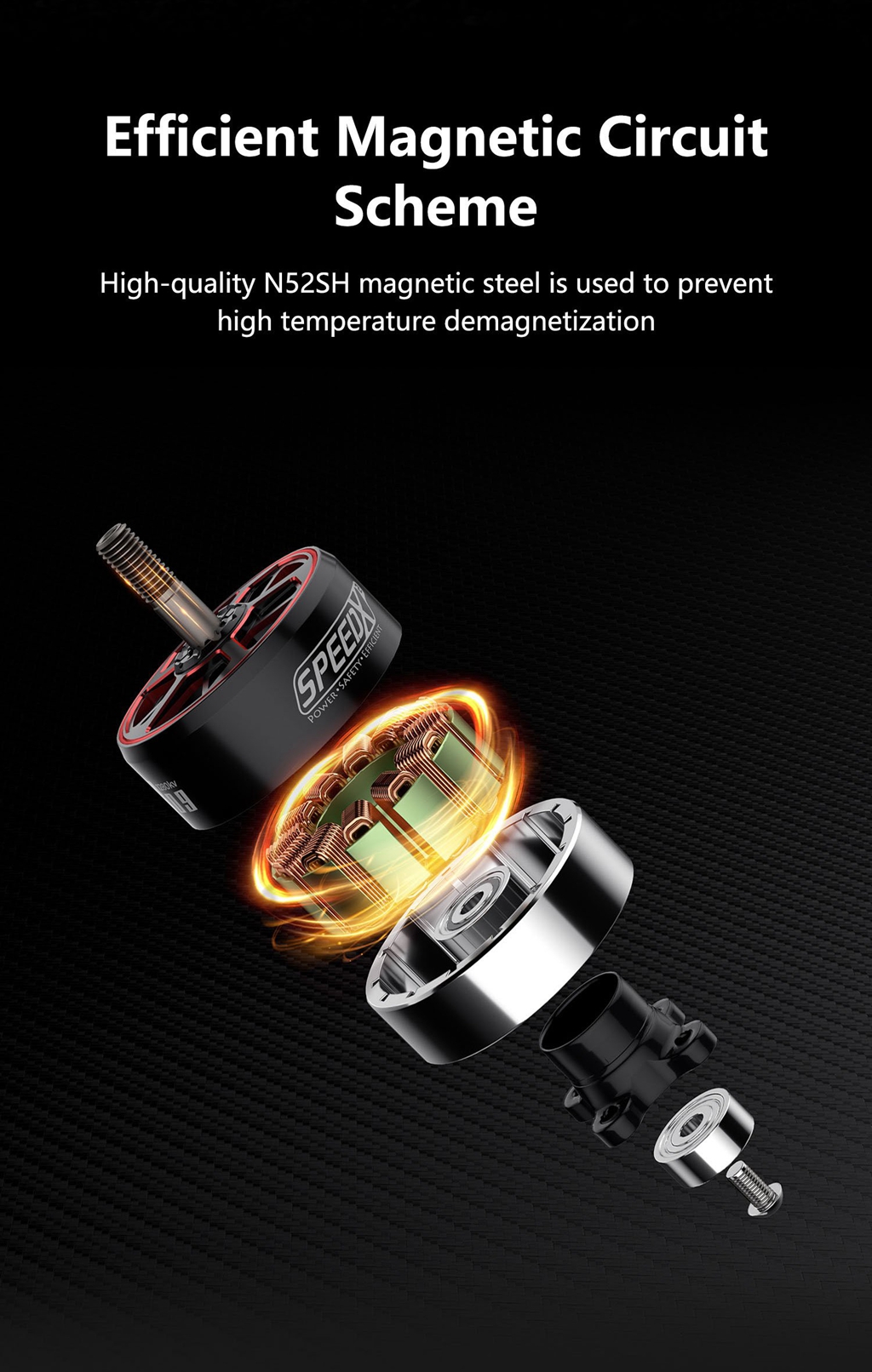

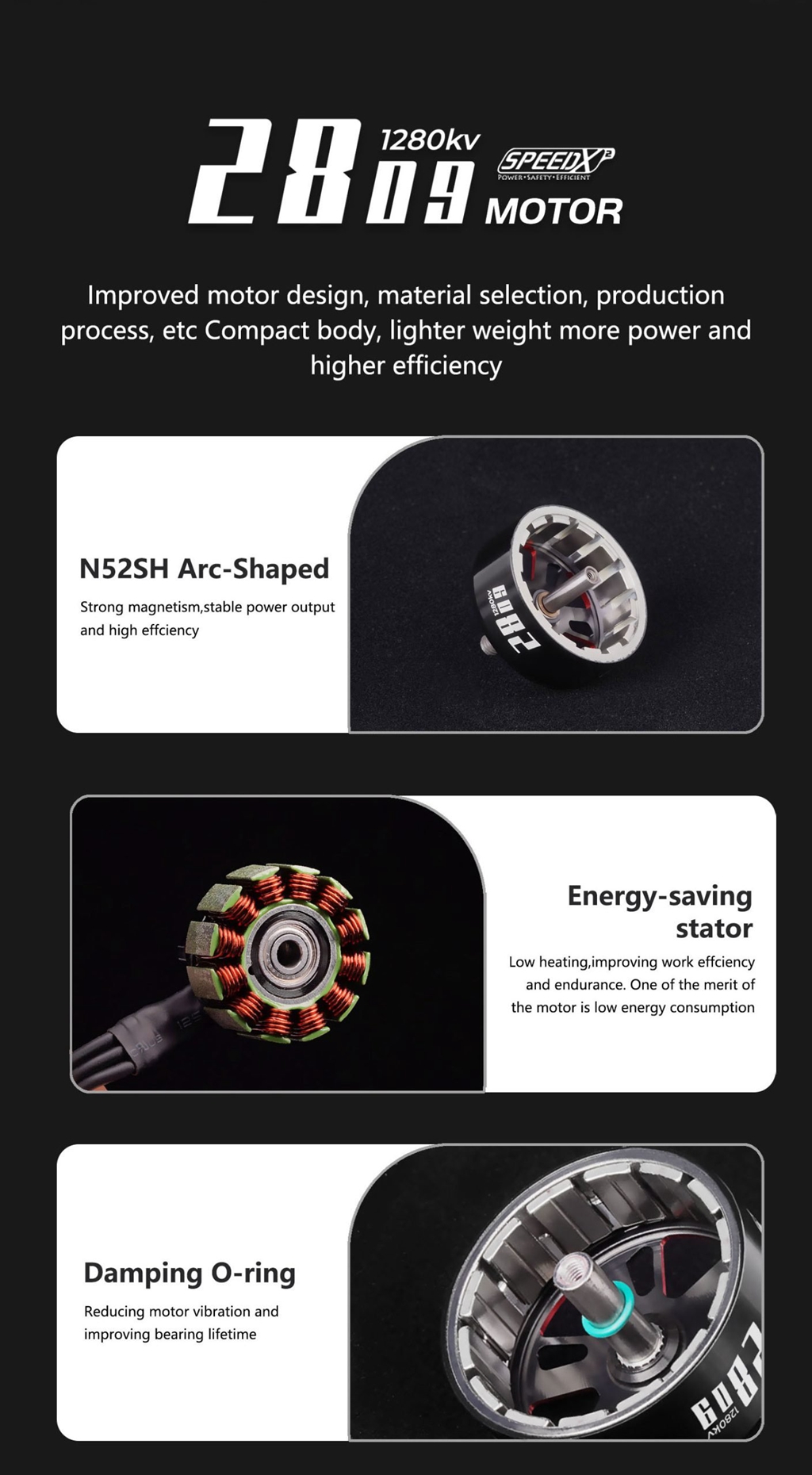

- Adopt high-quality N52SH magnetic steel to prevent high temperature demagnetization

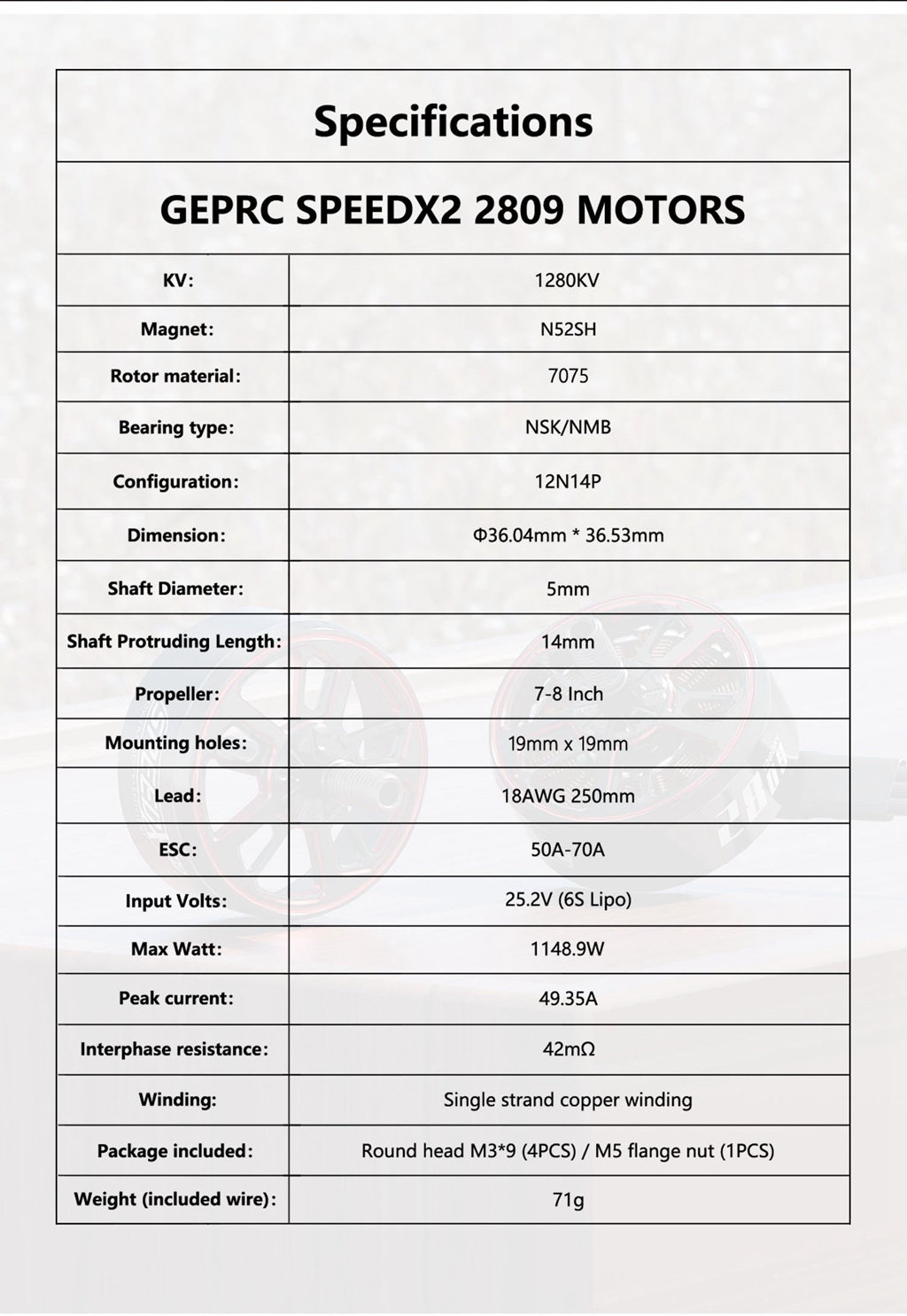

Specification:
- Model: SPEEDX2 2809 Motor
- KV: 1280KV
- Configuration: 12N14P
- Magnet: N52SH ARC
- Rotor material: 7075-T6 aviation aluminum alloy
- Stator diameter: 28mm
- Stator height: 9mm

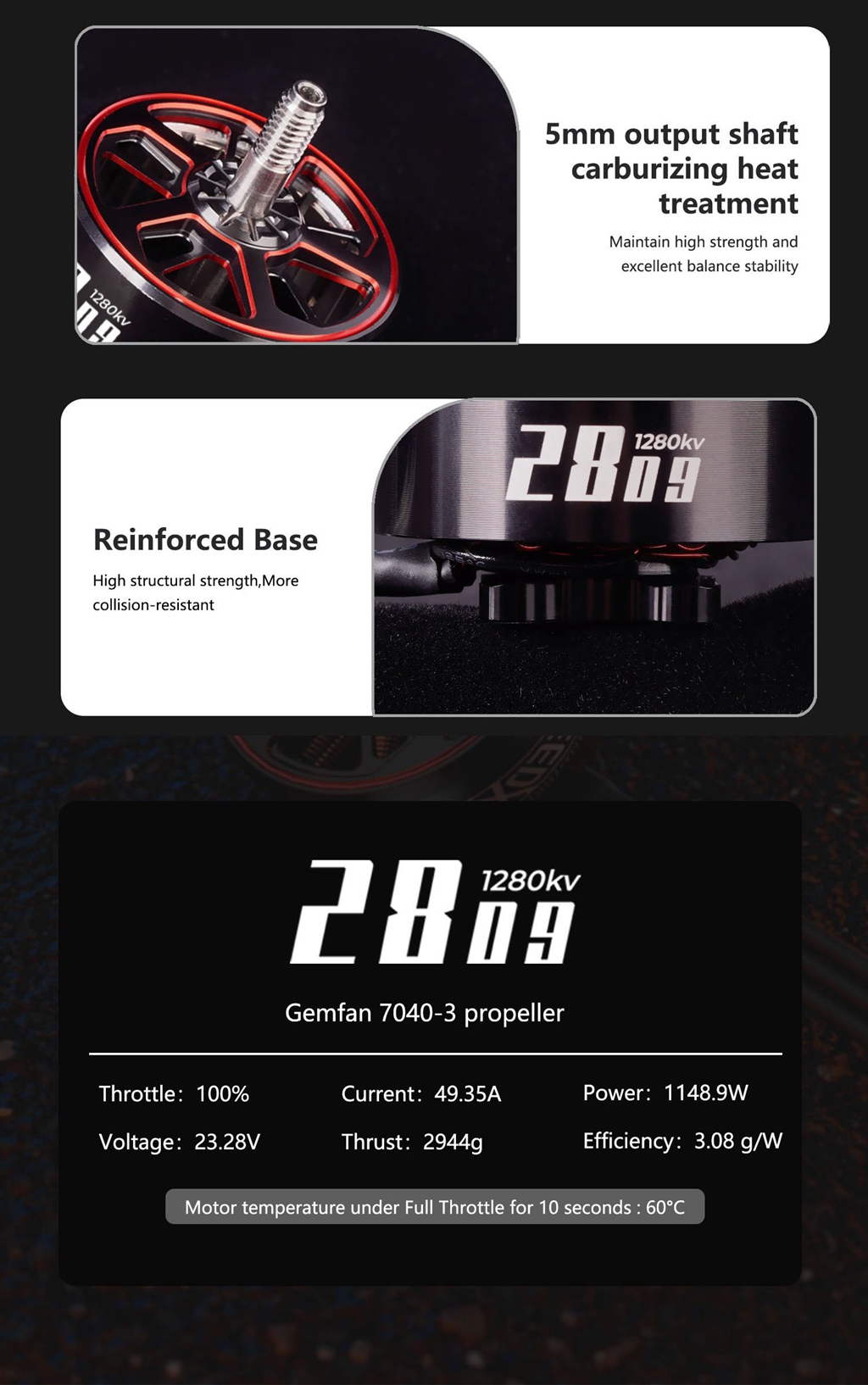

- Output shaft diameter: 5mm

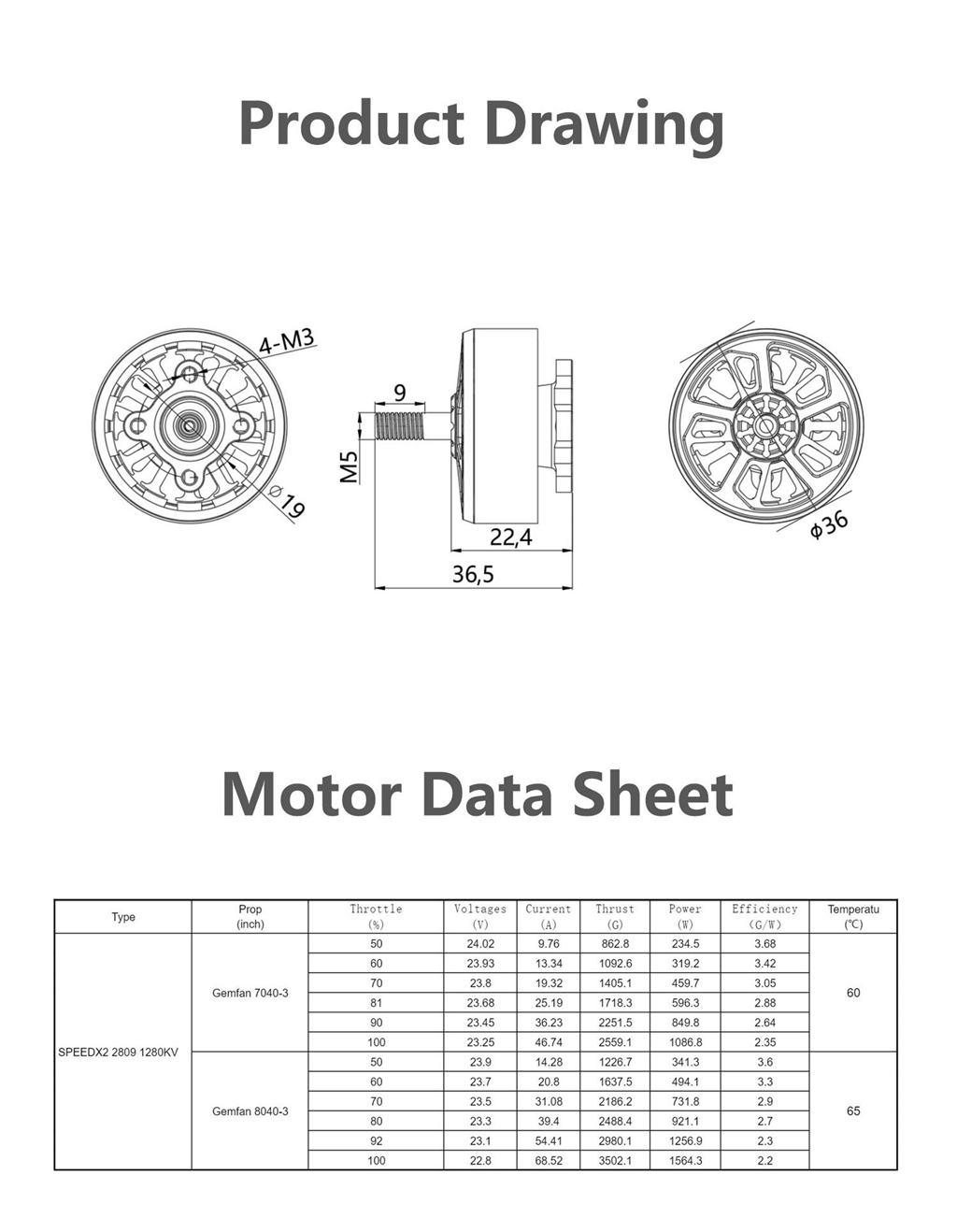

- Dimensions: 36.04mm (diameter) x 36.53mm
- Outlet specification: 18AWG 250mm
- Rated voltage: 25.2V 6S (for LiPo)
- Maximum power (W): 1148.9
- Maximum current (A): 49.35A
- Mounting hole: 19 x 19mm (M3)
- Color: red and black

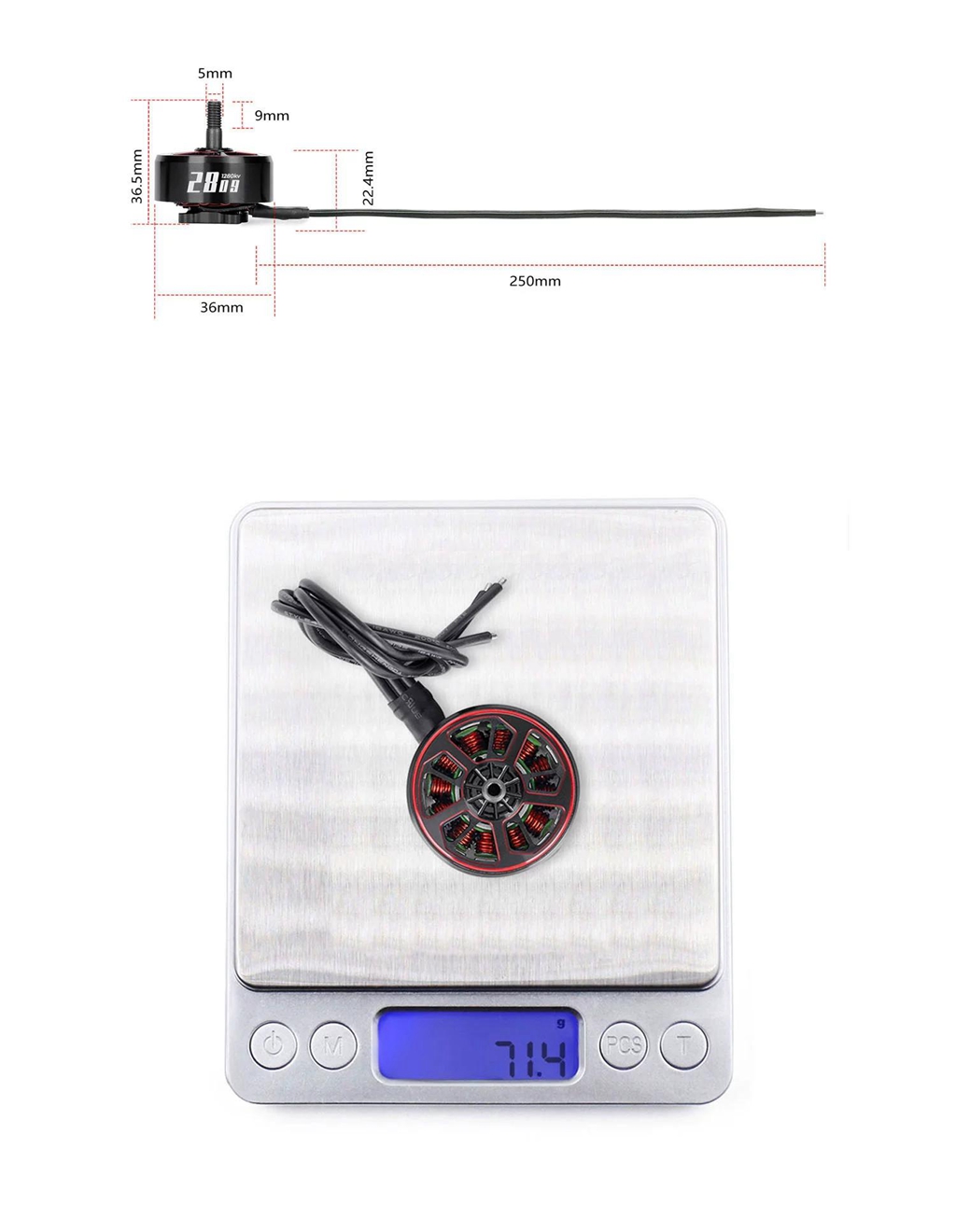

- Weight: 71.4g

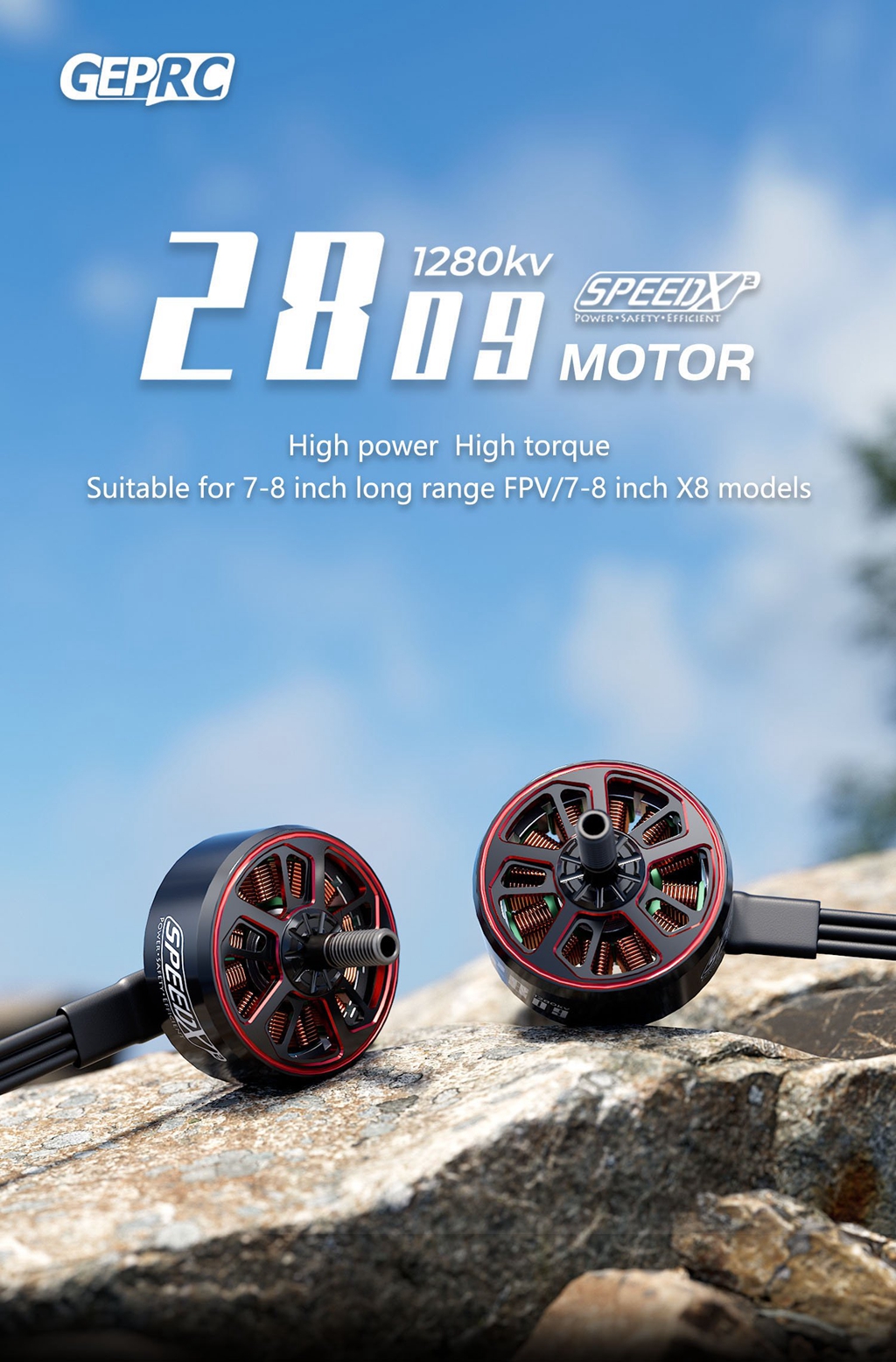

- Applicable models: 7-8 inch long range FPV/7-8 inch X8 models

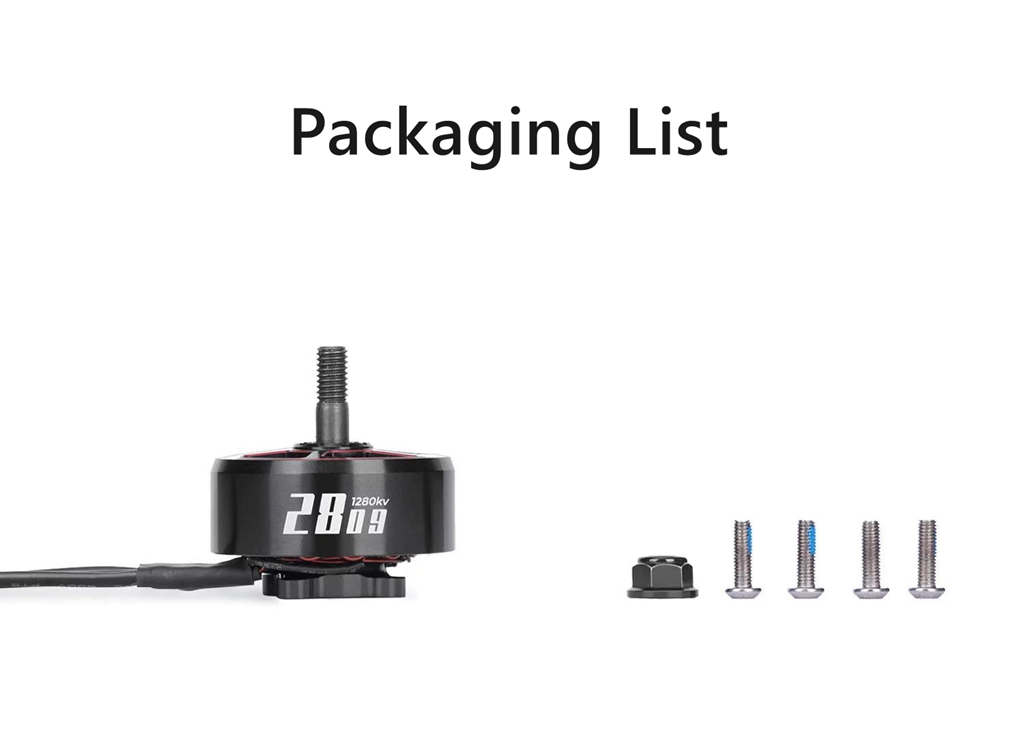

Package Included:
- 1 x SPEEDX2 2809 Motor
- 4 x M3x9 Round Head Screws
- 1 x M5 Anti-slip Nut
