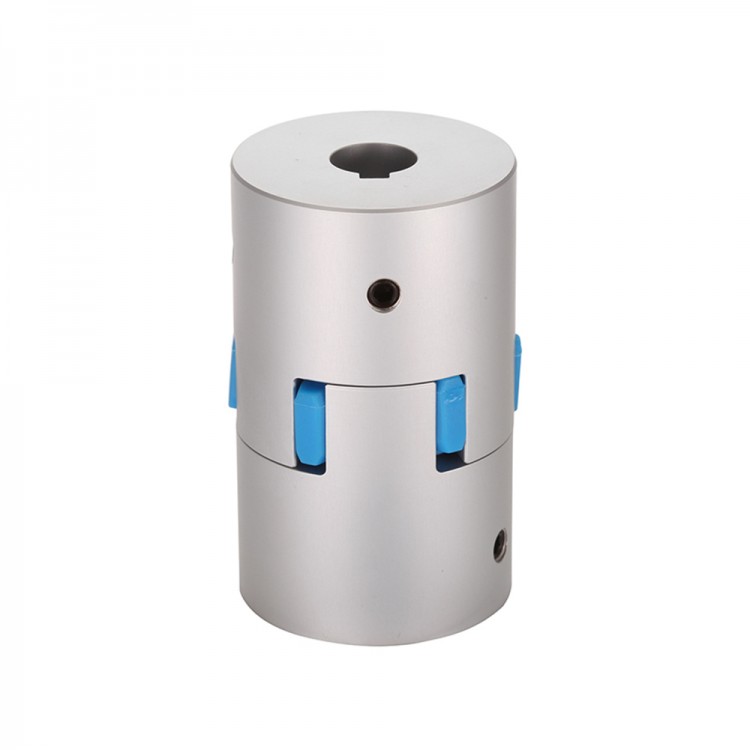

GF-20x30 Plum Blossom Coupling 4mm-10mm Flexible Coupler for Servo Step Motor Encoder CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$10.63
  • Price in reward points: 106 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $10.42 $10.20 $9.89 $9.46 Contact US
Quantity:

GF-20x30 Plum Blossom Coupling 4mm-10mm Flexible Coupler for Servo Step Motor Encoder CNC

Feature:

- No gap between the axle and the axle sleeve
- For servo motor and stepper motor
- Compensating radial, radial and axial deviation

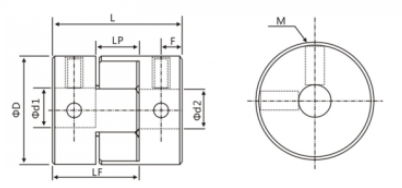

Specification:
- Model: GW-20x30
- For inner hole diameter: 4mm-10mm
- For d1,d2 shaft diameter (mm): 3,4,5,6,6.35,8,7,9,9.525,10,11
- D: 20mm
- L: 30mm
- LF: 19.25mm
- LP:8.6mm
- F: 5.3
- M: M4
- Torque:1.7N.M

Tech parameter:
- Rated torque: 5.0N.M
- Maximum speed:10000rpm
- Radial deviation torlerance: 0.1mm
- Deflection torlerance: 1degree
- Axial deviation torlerance: +0.2mm
- Static torque: 22N.M/rad
- Inertia torque:2.0x10-7kg/m2
- Sleeve material: Aluminum alloy
- Surface process: Anodic oxidation treatment
- Weight:18g

Packing Content:
- 1 x Coupling
