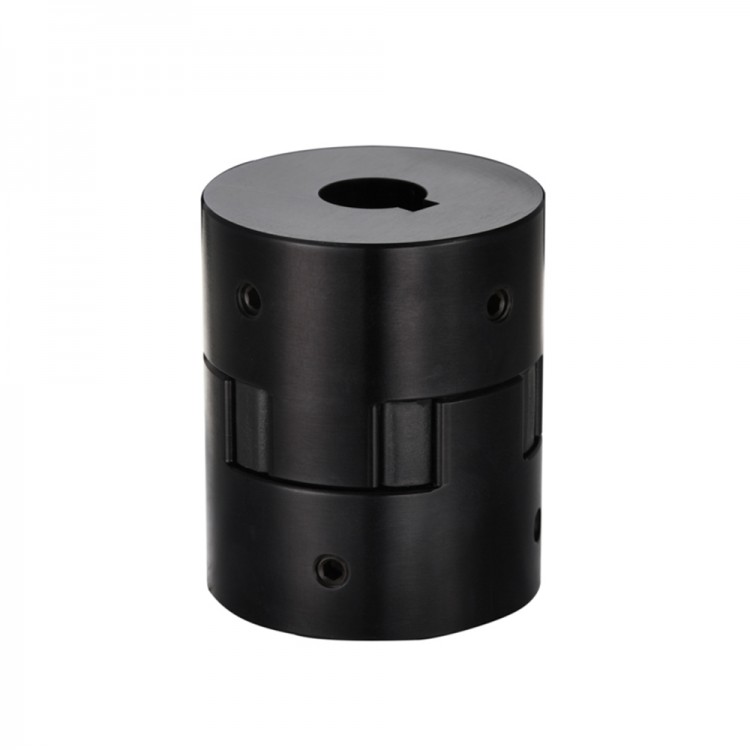

GFT-035-16X22 Plum Blossom Coupling Flexible Coupler for Servo Step Motor Encoder CNC

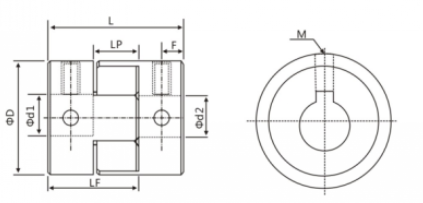

Specification:
- Model: GD-GFT-035-16X22
- For hole diameter: 4mm-10mm
- For d1,d2 shaft diameter (mm): 3,4,5,6,6.35,7,8
- D: 16mm
- L: 22 MM
- LF: 7.25mm
- LP: 7.5mm
- M: M3
- Torque: 0.7N.M
Tech parameter:
- Rated torque: 2.5N.M
- Maximum torque: 5.0mm
- Radial deviation torlerance: 0.1mm
- Deflection torlerance: 0.5degree
- Axial deviation torlerance: +0.3mm
- Maximum speed:16000rpm
- Inertia torque:0.38x10-6kg/m2
- Weight: 10g
Packing Content:
- 1 x Coupling
