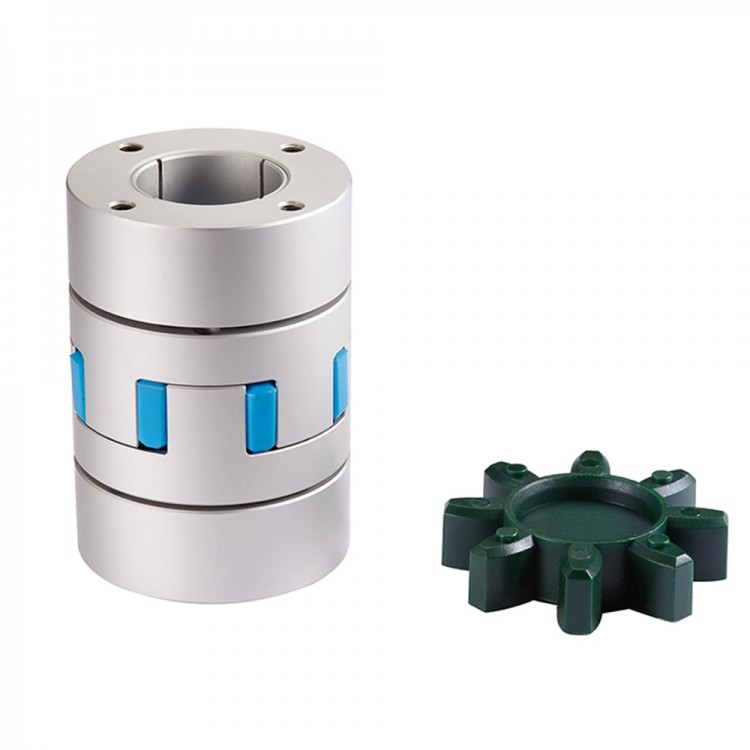

GFZ-30x50 Plum Blossom Expansion Sleeve Coupling 8mm-14mm Flexible Coupler for Servo Step Motor CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$23.74
  • Price in reward points: 237 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.27 $22.79 $22.08 $21.13 Contact US
Quantity:

GFZ-30x50 Plum Blossom Expansion Sleeve Coupling 8mm-14mm Flexible Coupler for Servo Step Motor CNC

Features:

- The main body is made of aluminum alloy
- HIgh torque and high precision control
- For servo motor and step motor
- No gap between the axle and the axle sleeve
- Same characters for CW CCW

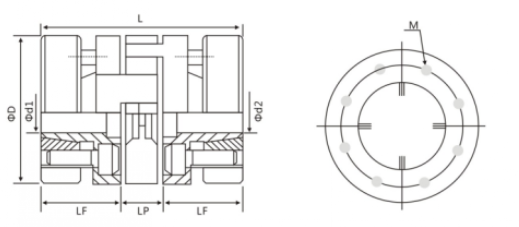

Specification:
- Model: GFZ-30x50
- For hole diameter:  8mm-14mm
- For d1,d2 shaft diameter (mm): 8,9,9.25,10,11,12,12.7,14
- D: 30mm
- L: 50MM
- LF: 30.6mm
- LP:11.5mm
- M: M3
- Torque: 1.5N.M

Tech parameter:
- Rated torque: 7.4N.M
- Max. torque: 12.8N.M
- Maximum speed:20000rpm
- Radial deviation torlerance: 0.02mm
- Deflection torlerance: 1degree
- Axial deviation torlerance: +0.6-0mm
- Static torque: 510N.M/rad
- Inertia torque:8.7x10-4kg/m2
- Weight: 70g

Packing Content:
- 1 x Coupling
