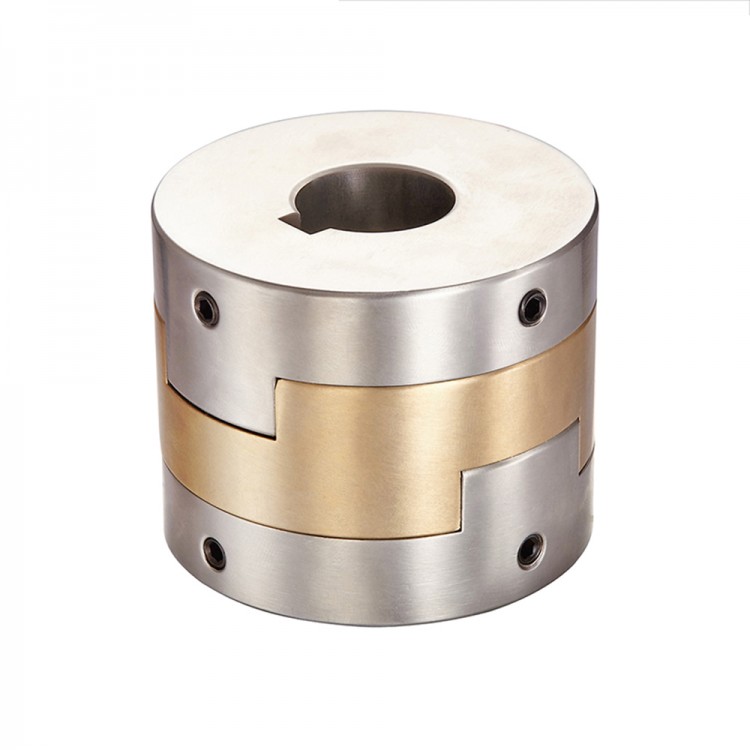

GHG-14.5x16.2 Cross Slider Coupling 3mm-8mm Flexible Coupler for Servo Step Motor Encoder CNC

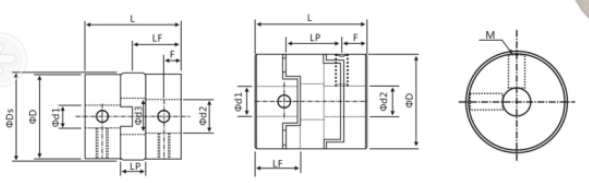

Specification:
- Model: GHG-14.5x16.2
- For hole diameter: 3mm-8mm
- For d1,d2 shaft diameter (mm): 4,5,6,6.35
- D: 14.5mm
- Ds: 15mm
- L: 16.2MM
- LF: 8.1mm
- LP:5.4mm
- F: 3MM
- M: M3
- Torque: 1N.M
Tech parameter:
- Rated torque: 3.0N.M
- Max. torque: 12.8N.M
- Maximum speed:7000rpm
- Radial deviation torlerance: 0.5mm
- Deflection torlerance: 0.6degree
- Axial deviation torlerance: +0.1mm
- Static torque: 800N.M/rad
- Inertia torque:4.5x10-7kg/m2
- Weight: 15g
Packing Content:
- 1 x Coupling
