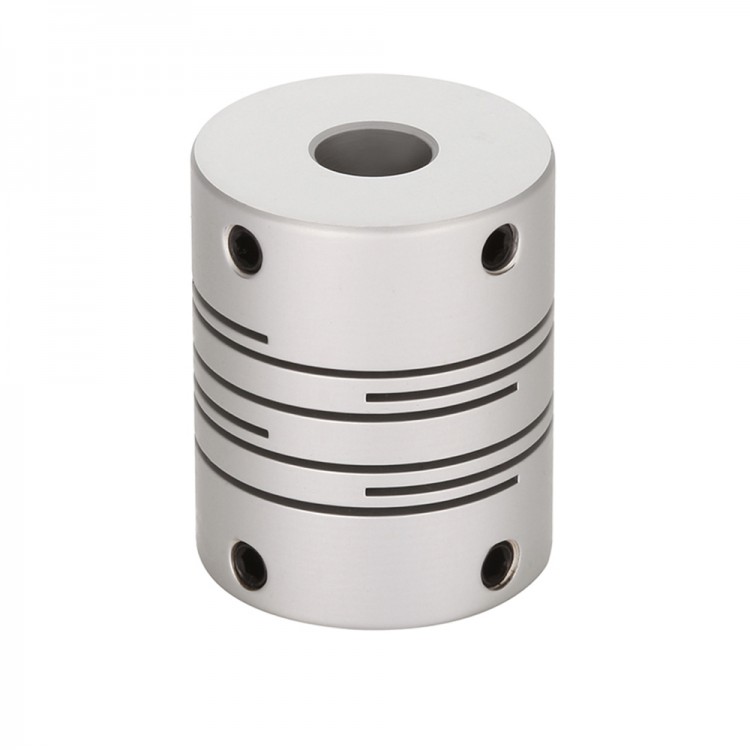

GI-25x31 Parallel Line Coupling 5mm-12mm Flexible Coupler for Servo Step Motor Encoder CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.17
  • Price in reward points: 92 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.99 $8.80 $8.53 $8.16 Contact US
Quantity:

GI-25x31 Parallel Line Coupling 5mm-12mm Flexible Coupler for Servo Step Motor Encoder CNC

Feature:

- Material: Aluminum alloy
- No gap between the axle and the axle sleeve
- For encoder and mico motor
- Compensating radial, radial and axial deviation

Specification:
- Model: GI-25x31
- For hole diameter: 5mm-12mm
- For d1,d2 shaft diameter (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.5,12.7
- D: 25mm
- L: 31mm
- L1: 0.6mm
- L2:1.8mm
- F: 4.3mm
- M: M4
- Torque:1N.M

Tech parameter:
- Rated torque: 2N.M
- Maximum speed:15000rpm
- Radial deviation torlerance: 0.15mm
- Deflection torlerance: 2degree
- Axial deviation torlerance: +0.2mm
- Static torque: 380N.M/rad
- Inertia torque:2.6x10-6kg/m2
- Elastomer material:polyurethane
- Sleeve material: Aluminum alloy
- Weight: 27g

Packing Content:
- 1 x Coupling
