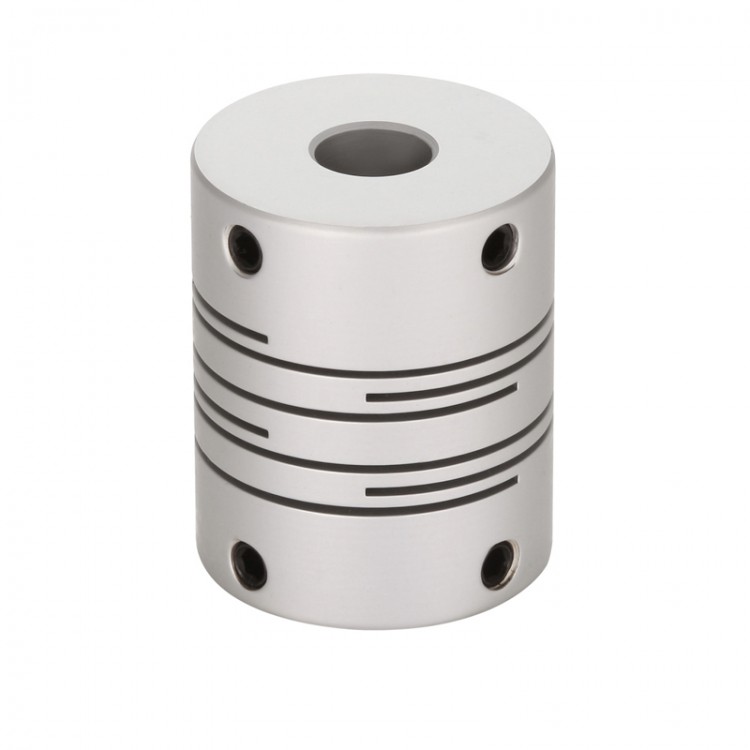

GI32x41 Parallel Line Coupling 8mm-15mm Flexible Coupler for Servo Step Motor Encoder CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$10.12
  • Price in reward points: 101 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $9.92 $9.72 $9.41 $9.01 Contact US
Quantity:

GI32x41 Parallel Line Coupling 8mm-15mm Flexible Coupler for Servo Step Motor Encoder CNC

Features:

- High strength aluminum alloy material
- Elastic effect compensating radial,angle, axial deviation
- Spring design with buffering
- For encoder and micro motor

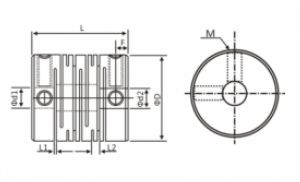

Specification:
- Model: GI-32x41
- For d1,d2 shaft diameter (mm): 8,9,9.25,10,11,12,12.7,14,15,16,17,18
- D: 32mm
- L: 41 MM
- L1: 0.8mm
- L2:2.3mm
- F: 6
- M: M5
- Torque: 4N.M

Tech parameter:
- Rated torque: 4N.M
- Radial deviation torlerance: 0.2mm
- Deflection torlerance: 2degree
- Axial deviation torlerance: -+0.2mm
- Maximum speed:12000rpm
- Static torque: 500N.M/rad
- Inertia torque: 9.6x10-6kg/m2
- Sleeve material: Aluminum alloy
- Surface process: Anodic oxidation treatment
- Weight: 60g

Packing Content:
- 1 x Coupling
