Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $7.82 | $7.66 | $7.42 | $7.10 | Contact US |

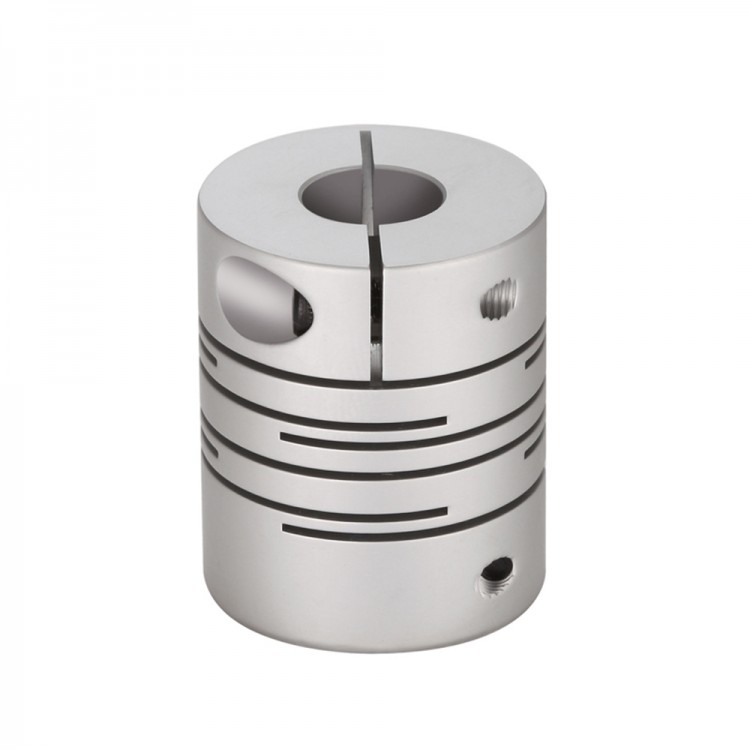

GIC20x26 Parallel Line Coupling 5mm-10mm Flexible Coupler Shaft Coupling for Encoder Step Motor CNC
Features:
- Aluminum alloy material
- Elastic effect compensating radial,angle, axial deviation
- Samw rotation for CW and CCW
- For encoder and micro motor

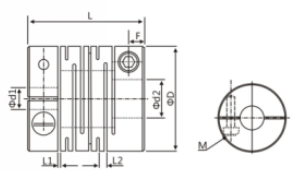

Specification:
- Model: GIC-20x26 mm
- For d1,d2 shaft diameter (mm): 4,5,6,6.35,7,8,10
- D: 20mm
- L: 26MM
- L1: 0.55mm
- L2: 1.5mm
- F: 3.75mm
- M: M3
- Torque: 1.5N.M
Tech parameter:
- Rated torque: 1N.M
- Off-center torlerance: 0.1mm
- Deflection torlerance: 2degree
- Axial deviation torlerance: -+0.2mm
- Maximum speed:7600rpm
- Static torque: 170N.M/rad
- Inertia torque: 9.1x10-6
- Sleeve material: Aluminum alloy
- Surface process: Anodic oxidation treatment
- Weight: 16.5g
Packing Content:
- 1 x Coupling
