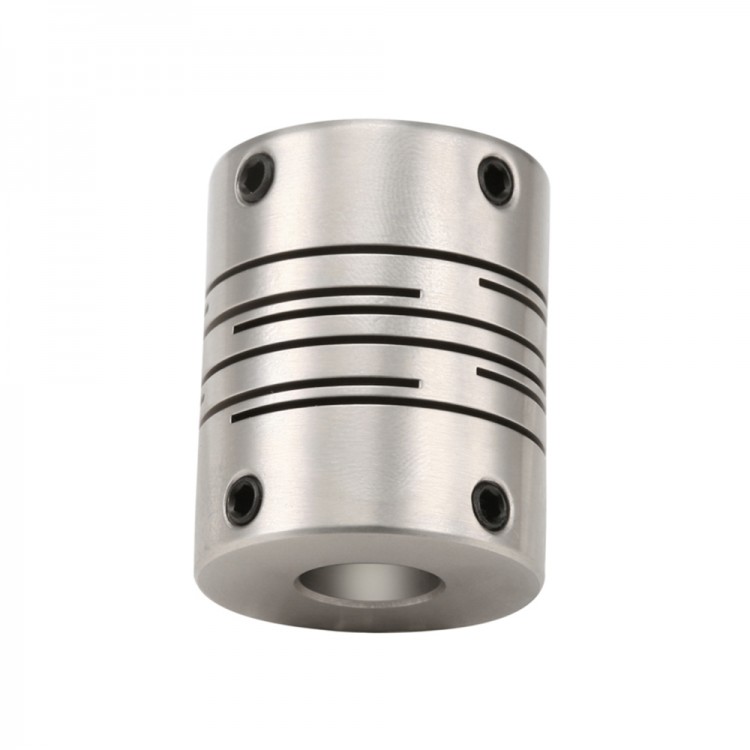

GIG28.5x38 Flexible Stainless Steel Coupling 6mm-14mm Coupler Diaphragm Coupling for Encoder Step Motor CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$20.85
  • Price in reward points: 209 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.43 $20.02 $19.39 $18.56 Contact US
Quantity:

GIG28.5x38 Flexible Stainless Steel Coupling 6mm-14mm Coupler Diaphragm Coupling for Encoder Step Motor CNC

Features:

- Stainless steel material
- High torque and precised control
- For encoder and stepper motor
- For CW and CCW
- Low inertia
- Diaphragm is made of spring steel

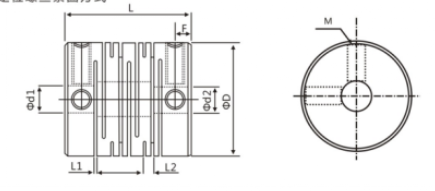

Specification:
- Model: GIG-28.5x38mm
- For d1,d2 shaft diameter (mm): 6,6.35,8,7,9.525,10,11,12,12.7,14,15,16
- D: 28.5mm
- L: 38MM
- L1: 0.8mm
- L2: 2.1mm
- F: 4.3mm
- M: M4
- Torque: 1.7N.M

Tech parameter:
- Rated torque: 4.5N.M
- Off-center torlerance: 0.15mm
- Deflection torlerance: 2 degree
- Axial deviation torlerance: -+0.2mm
- Maximum speed:55000rpm
- Static torque: 450N.M/rad
- Inertia torque: 7.5x10-6
- Body material: SUS304
- Surface process: Polishing process
- Weight: 120g

Packing Content:
- 1 x Stainless Steel Coupling
