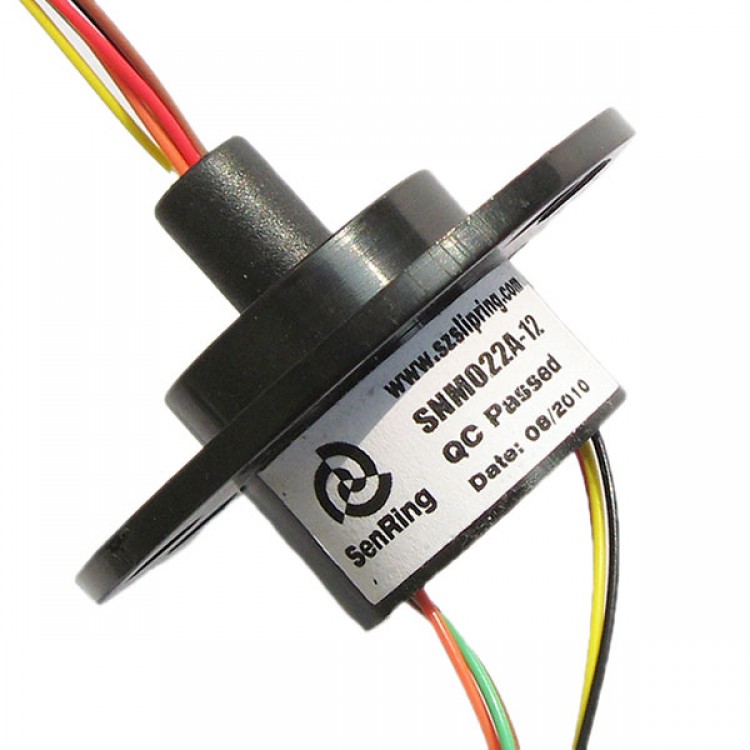

Gimbal Slipring 360 Degrees Rotation Electronic Conductor Slipring 6 Channel 2A
Parameters:
Rated voltage: 240VDC-240VAC
Current: standard per ring is 2A
Wire size: silver plated AWG28 insulation
Lead length: 250mm or according to customer requirements
Isulation strength: 500VAC @60Hz 60s
Insulation resistance: 1000M /500VDC
The change of dynamic contact resistance: < 0.01ohm
Mechanical technical parameters:
Working speed: 0-250rpm
Protection level: IP51
Working temperature: -40 ~ +80
Maximum torsion: 0.3 g / M
Tensile strength: radial 2KG, axial 0.5KG
Working life: 6 more than (depending on the speed and working environment)
Contact material: precious metals
