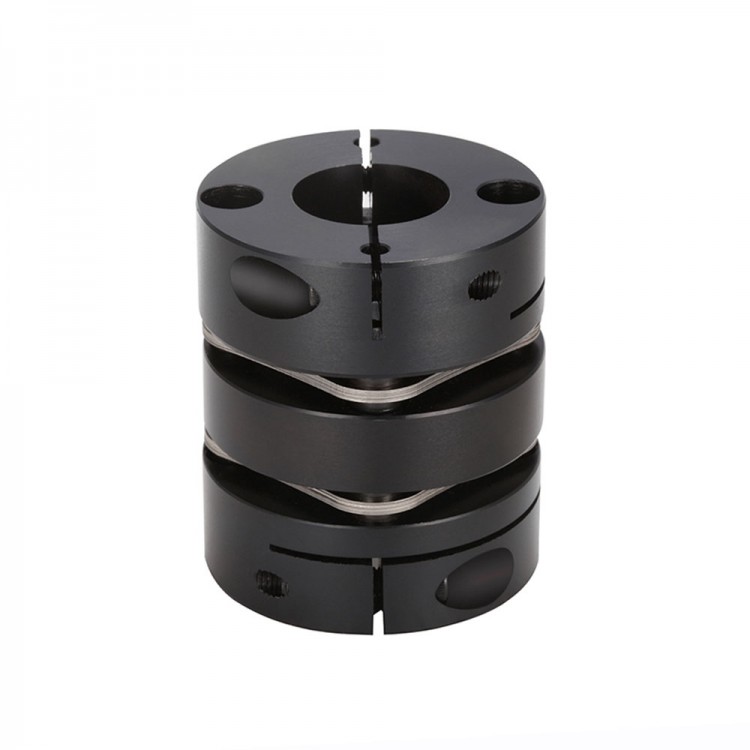

GLG-34x45 Double Diaphragm Coupling 6mm-16mm Flexible Coupler for Servo Step Motor Encoder CNC
Features:
- HIgh torque and high precision control
- For servo and step motor
- No gap between the axle and the axle sleeve
- Axle sleeve is made of #45 steel
Specification:
- Model: GLG-34x45
- For hole diameter: 6mm-16mm

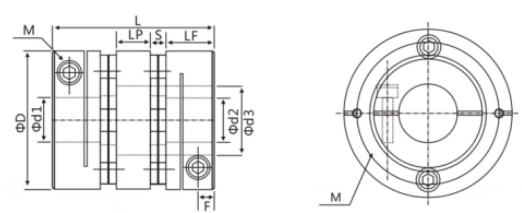

- For d1,d2 shaft diameter (mm): 6,6.35,7,8,9,9.25,10,11,12,12.7,14,15
- D: 34mm
- L: 45MM
- LF: 13.95mm
- LP: 8.9mm
- d3: 16
- S: 4.1
- F: 4.85
- M: M4
- Torque: 2.5N.M
Tech parameter:
- Rated torque: 4.5N.M
- Radial deviation torlerance: 0.1mm
- Deflection torlerance: 0.5degree
- Axial deviation torlerance: +0.7mm
- Maximum speed:5000rpm
- Static torque: 1.65x10-5kg/m2
- Inertia torque:5737kg/m2
- Weight: 192g
Packing Content:
- 1 x Coupling
