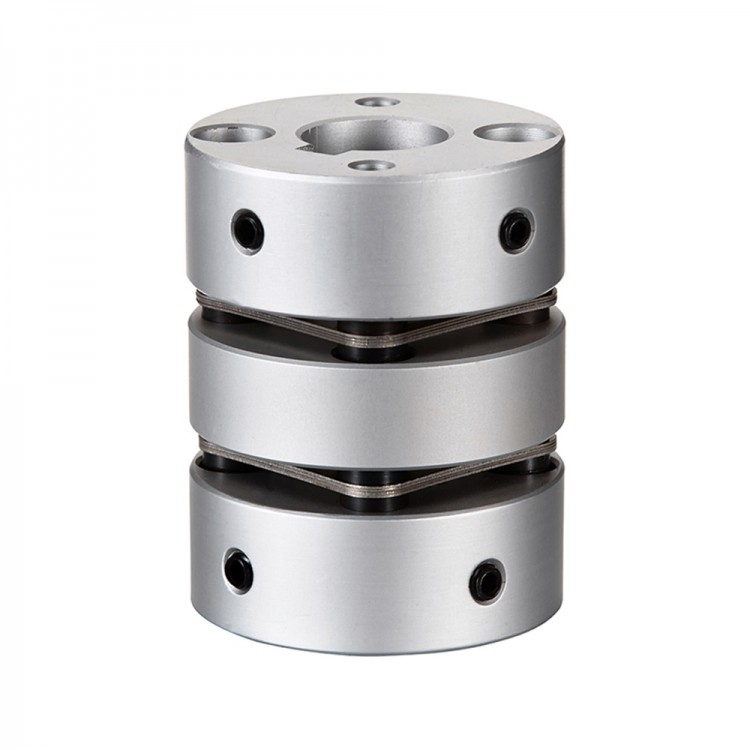

GLJ 68x75 Diaphragm Coupling 14mm-38mm Flexible Coupler for Servo Step Motor Encoder CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$39.39
  • Price in reward points: 394 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $38.60 $37.81 $36.63 $35.06 Contact US
Quantity:

GLJ 68x75 Diaphragm Coupling 14mm-38mm Flexible Coupler for Servo Step Motor Encoder CNC

Features:

- High torque and high precision control
- For servo and stepper motor
- The diaphragm is made of spring steel

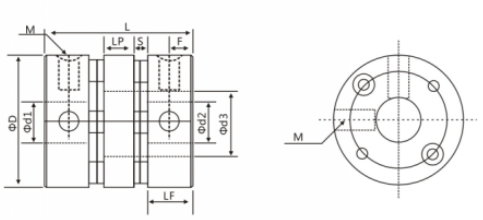

Specification:
- Model: GD-68x75
- For hole diameter:  14mm-38mm
- For d1,d2 shaft diameter (mm): 12,14,15,16,17,18,19,20,22,24,25,28,30,32,35,38
- D: 68mm
- L: 75 MM
- LF:23.35mm
- LP: 15.7mm
- d3: 45.5 mm
- S: 6.3mm
- F: 7.7MM
- M: M8
- Torque: 10.5N.M

Tech parameter:
- Rated torque: 60N.M
- Radial deviation torlerance: 0.32mm
- Deflection torlerance: 1.5degree
- Axial deviation torlerance:-+0.8mm
- Maximum speed:9000rpm
- Static torque: 19,000N.M/rad
- Inertia torque:2.0x10-4kg/m2
- Weight: 492g

Packing Content:
- 1 x Coupling
