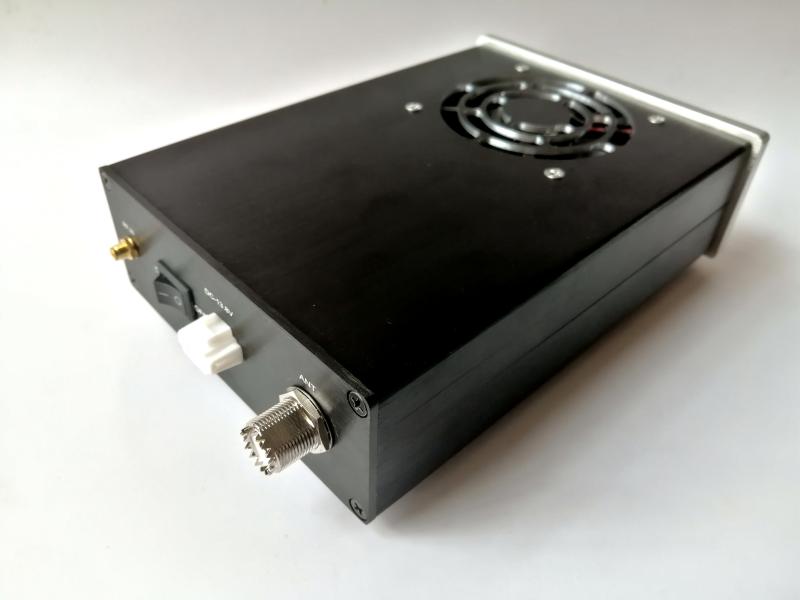

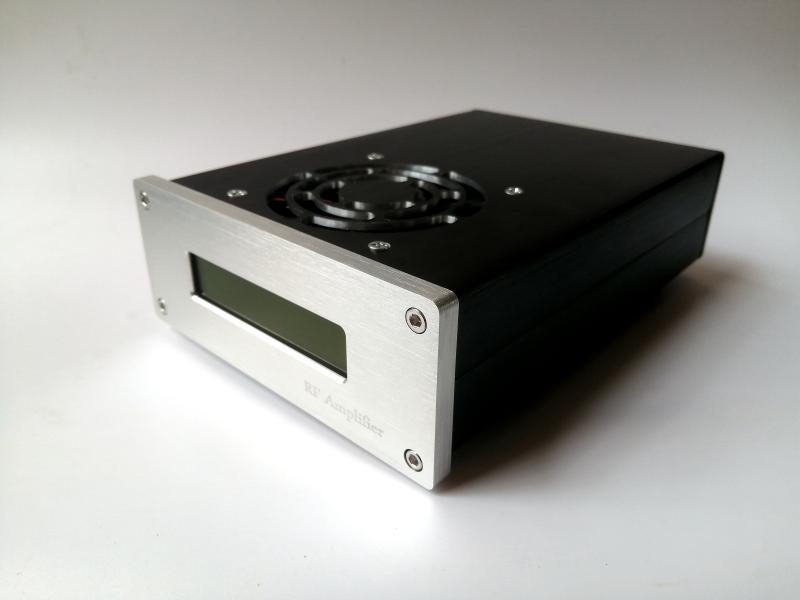

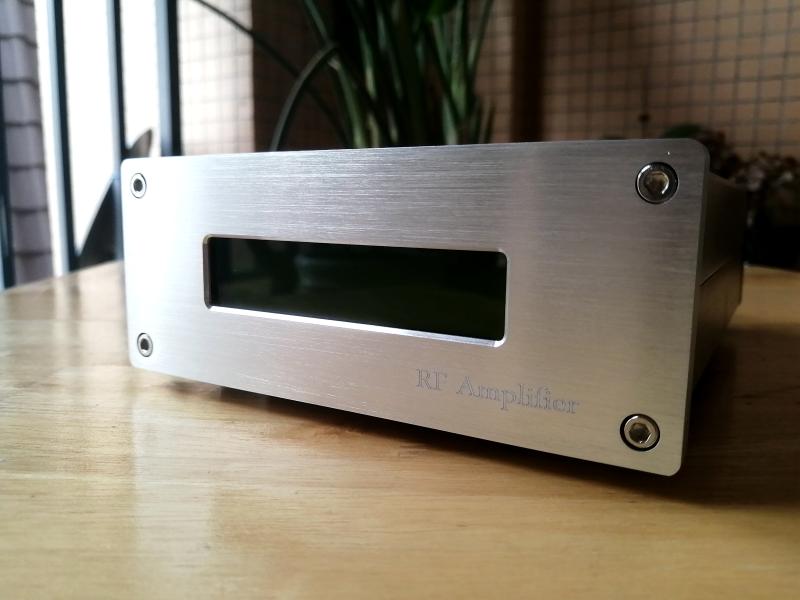

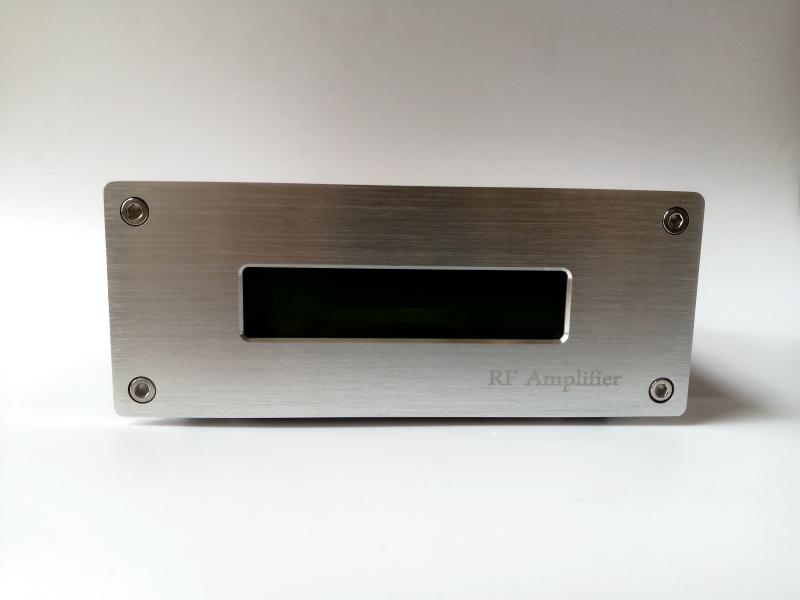

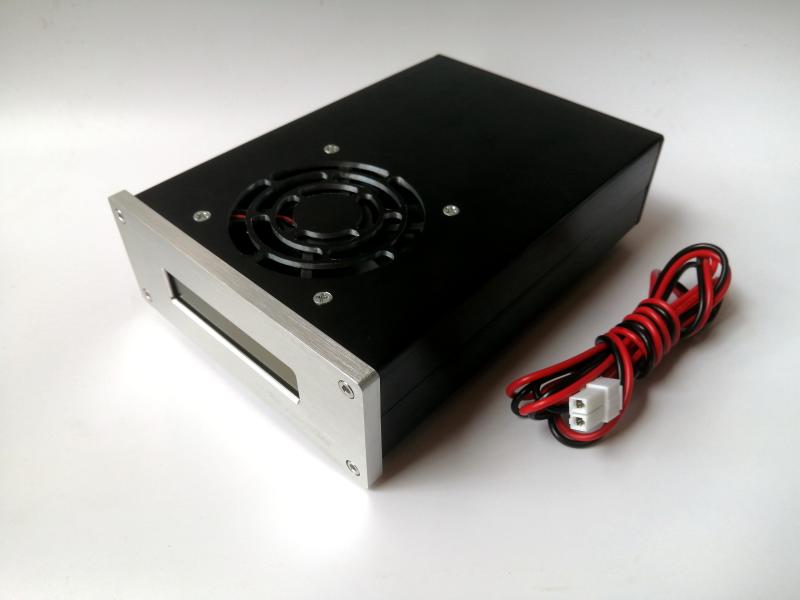

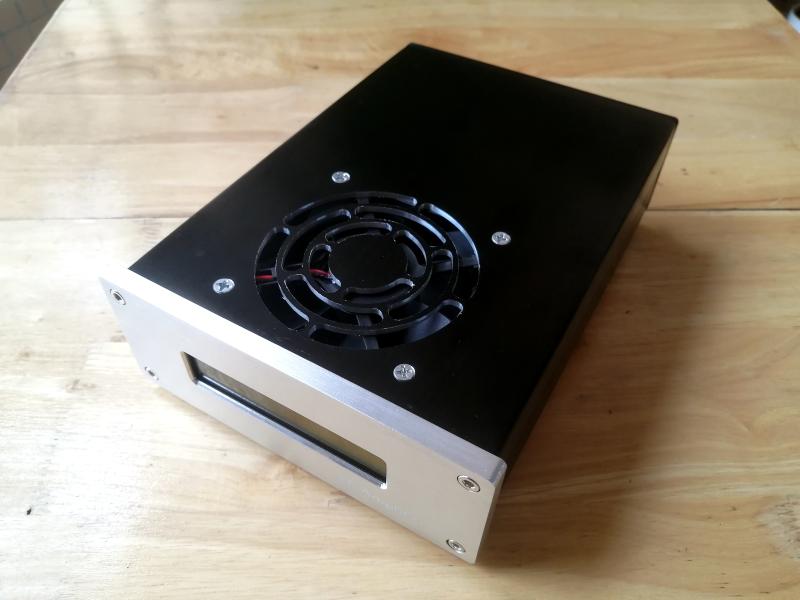

GM-6 RF Amplifier Module For 433MHz Digital FPV Power Amp Digital Transmission 70W Walkie Talkie
Features:
- Using high-grade aluminum alloy chassis
- Built-in 5th order low pass filter
- Has a high standing wave warning function
- Using DC 12V-14V power supply
Attention:
- Please not use without an antenna
- Please use an antenna that corresponds to the transmitting frequency, the standing wave is within 2.0, and the withstand power is above 150W
- Please not touch the antenna in the transmitting state
- Please not use in explosive environment (gas station, natural gas, etc.)
- Please follow your national laws and regulations and local radio management department to use
Specifications:
- Input power: 1-5W
- Load impedance: 50Ω coaxial
- Transmitting frequency: 400-470MHZ
- Power supply voltage: 12-14V
- Working mode: FM, DMR, C4FM, FSK, P25
- Standby current: 200mA
- Output power: 30-70W
- Cooling method: temperature controlled air cooling
- Clutter suppression: < -60DB

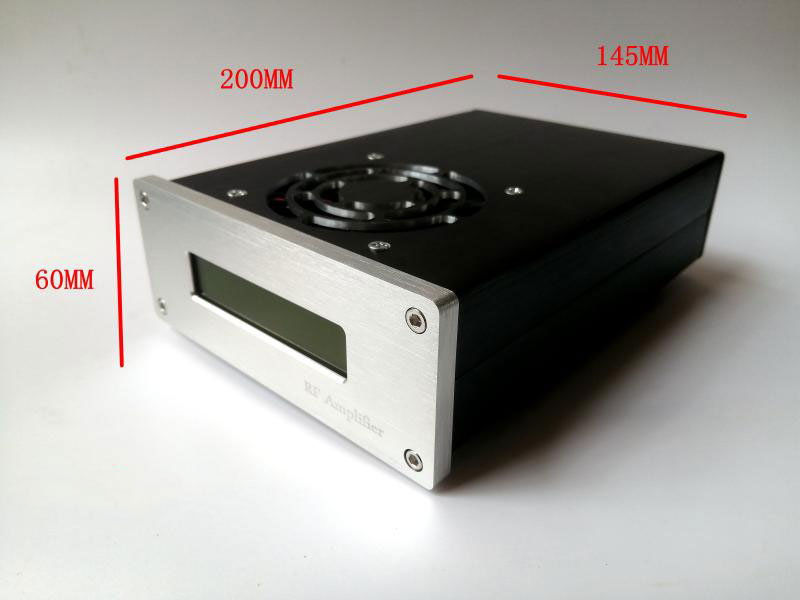

- Minimum size: 200MM*145MM*60MM
- Standing wave warning: >2
- Net weight: 1.43KG
Package Included:
- 1 x RF Power Amplifier
