GM130 1.0-300mm Film Coating Ultrasonic Thickness Gauge Ultrasonic Thickness Meter with Backlit LCD

Availability: In stock, usually dispatched in 1 business day

  • Price:$141.46
  • Price in reward points: 1415 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $138.63 $135.80 $131.56 $125.90 Contact US
Quantity:
GM130 1.0-300mm Film Coating Ultrasonic Thickness Gauge Ultrasonic Thickness Meter with Backlit LCD

Features:

* Automatic calibration of zero point and system errors can be corrected
* Automatic linear compensation: Nonlinear errors of probe can be corrected by computer software in the whole range to improve accuracy
* Data storage/data query/data deletion
* Measurement of sound velocity: The sound speed is directly measured according to the thickness of sample piece
* Metric/imperial conversion
* Low electric quantity indication
* Automatic shutdown
* LCD screen with backlight

Application:
* The thickness meter is widely used in manufacturing, metal processing industry, commodity inspection and the like. It can be used to detect metals, plastics, ceramics, glass and any other good conductor of ultrasound.

Specifications:
* Item name: GM130 ultrasonic thickness gauge
* Measuring range: 1.0~300mm (steel)
* Accuracy: ±(1%H+0.1) mm
* Resolution: 0.01mm
* Sound velocity range: 1000~9999m/s
* Operating frequency: 5MHz
* Lower limit for pipe measurement: 10mm probe: diameter 20*3mm (steel); 6mm probe: diameter 12*2mm (steel)

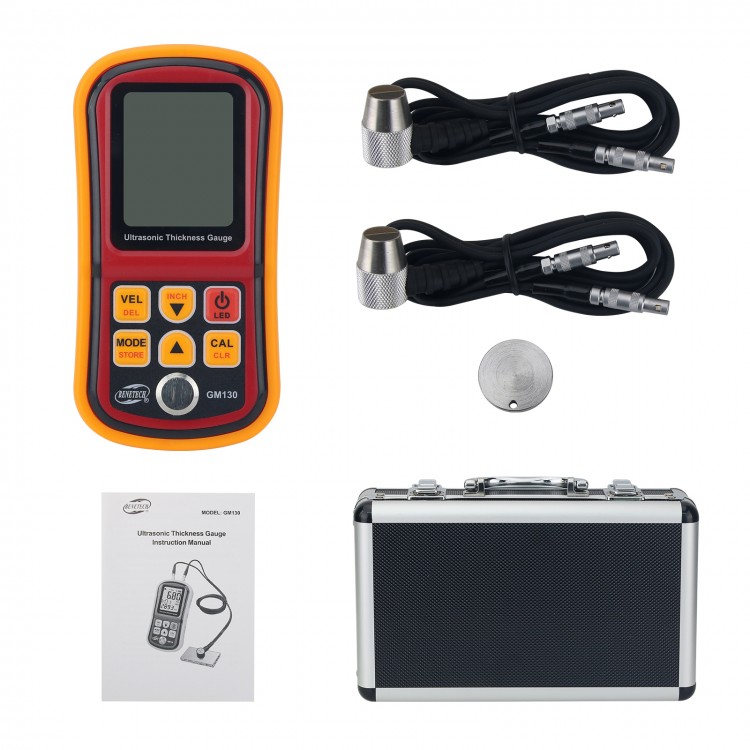

Package Included:
* 1 x Ultrasonic thickness gauge
* 2 x Probes
* 1 x Calibration block
* 1 x User manual
* 1 x Aluminium storage box

Note:
* 3pcs 1.5V AAA alkaline batteries are not included in the package.
