GM28.6x28.6 Spring Coupling 6mm-12mm Flexible Coupler for Servo Step Motor Encoder CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$7.98
  • Price in reward points: 80 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $7.82 $7.66 $7.42 $7.10 Contact US
Quantity:

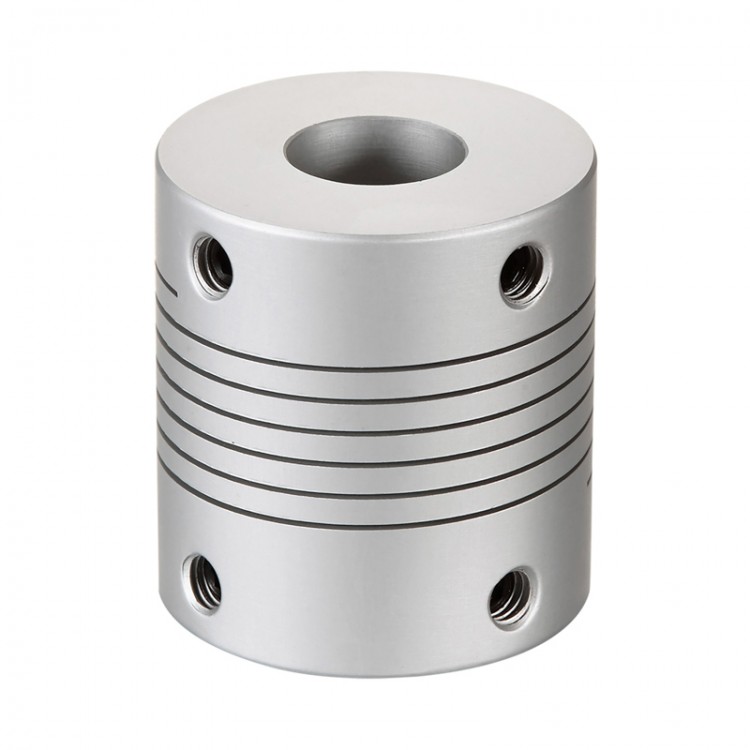

GM28.6x28.6 Spring Coupling 6mm-12mm Flexible Coupler for Servo Step Motor Encoder CNC

Features:

- High strength aluminum alloy material
- Elastic effect compensating radial,angle, axial deviation
- Spring design with buffering
- For encoder and micro motor

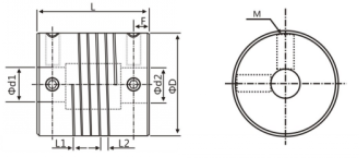

Specification:
- Model: GM-28.6x28.6
- For d1,d2 shaft diameter (mm): 8,9,9.25,10,11,12,12.7,14
- D: 28.6mm
- L: 28.6MM
- L1: 2.75mm
- L2: 0.4mm
- F: 4.2
- M: M4
- Torque: 1.7N.M

Tech parameter:
- Rated torque: 2N.M
- Radial deviation torlerance: 0.15mm
- Deflection torlerance: 3degree
- Axial deviation torlerance: -+0.18mm
- Maximum speed:14000rpm
- Static torque: 360N.M/rad
- Inertia torque: 2.3x10-6kg/m2
- Sleeve material: Aluminum alloy
- Surface process: Anodic oxidation treatment
- Weight: 39g

Packing Content:
- 1 x Coupling
