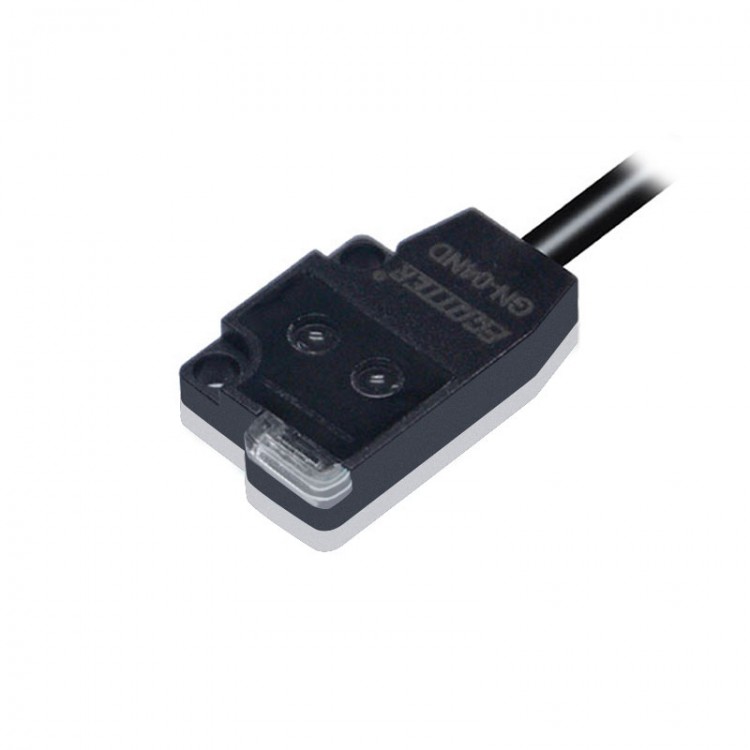

GN-04NAD Original Ultra Thin Square Photoelectric Switch for the Object Position Detection
Parameter:
- Model: GN-04NAD
- Detection distance: 1-12mm
- Detector: below 15% of the operating distance
- Connection mode: 3-core cable (diameter: 2.5mm; length: 2m)
- Power voltage: 12-24VDC±10% Pulse P-P10% below
- Light source: 650nm red modulated light
- Controlled output: NPN.NO/PNP.NO
- Maximum output current: 50mA
- Power consumption: <25mA
- Power polarity reverse connection protection: Equipped
- Short circuit protection: Equipped
- Hysteresis loop: 15
- Environment temperature and humidity: -25℃~55℃/35%~85% relative humidity
- Ambient Light: sunlight: 1000lx; lamplight: 3000lx
- IP protection grade: IP66
- Dimension: 20.5 x 13 x 3.6mm
Package Included:
- 1 x GN-04NAD Photoelectric Switch
