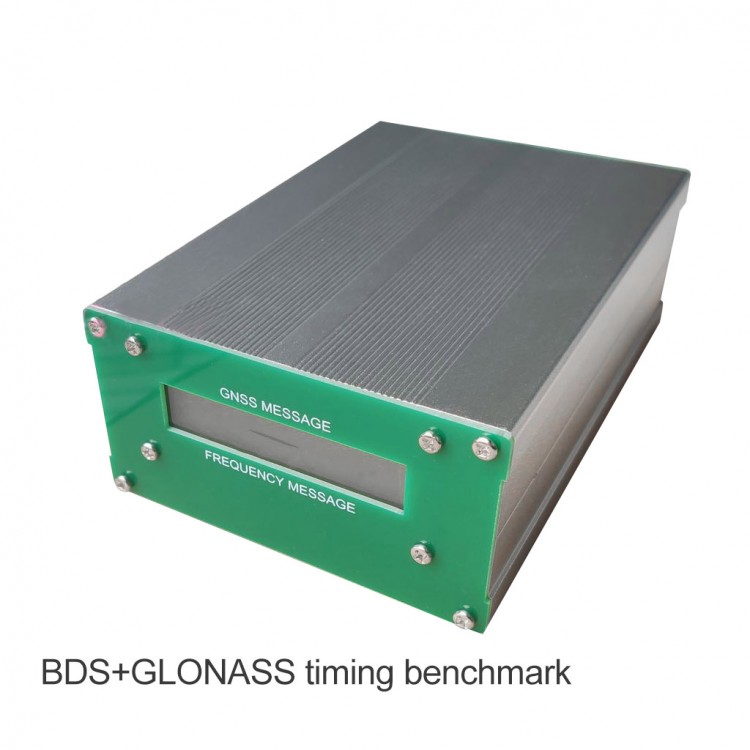

GNSS GNSSDO Disciplined Oscillator Clock with LCD Display Frequency 10MHz Output for BDS GLONASS

Availability: In stock, usually dispatched in 1 business day

  • Price:$177.83
  • Price in reward points: 1778 Reward Points: 18
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $174.27 $170.72 $165.38 $158.27 Contact US
Quantity:

GNSS GNSSDO Disciplined Oscillator Clock with LCD Display Frequency 10MHz Output for BDS GLONASS

Specification:
Name: LCD GNSS Disciplined Oscillator
Support satellite: GPS, BDS, GLONASS, GALILEO (optional)
Power: DC 11.7-12.9V, ≤15W
Antenna power: DC 5V/50mA
1PPS output waveform & amplitude: square wave, 3.3Vpp
10M output waveform & amplitude : sine wave, 1Vrms (10-15dBm), square wave, 3.3/4.7Vpp
RS232 output:GNSS NMEA signal
Display: GPS signal strength, time, frequency (multiple display modes)
Accuracy: higher than OCXO 2 order of magnitude
Size: 107*55*172mm (W*H*D, include connector)
Weight: 1kg

Package List:
-1 x GNSS Disciplined Oscillator
-1 x Adapter (AC 110-220V/DC 12V)
-1 x 5m GPS Antenna
