| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $684.42 | $670.45 | $649.50 | $621.57 | Contact US |

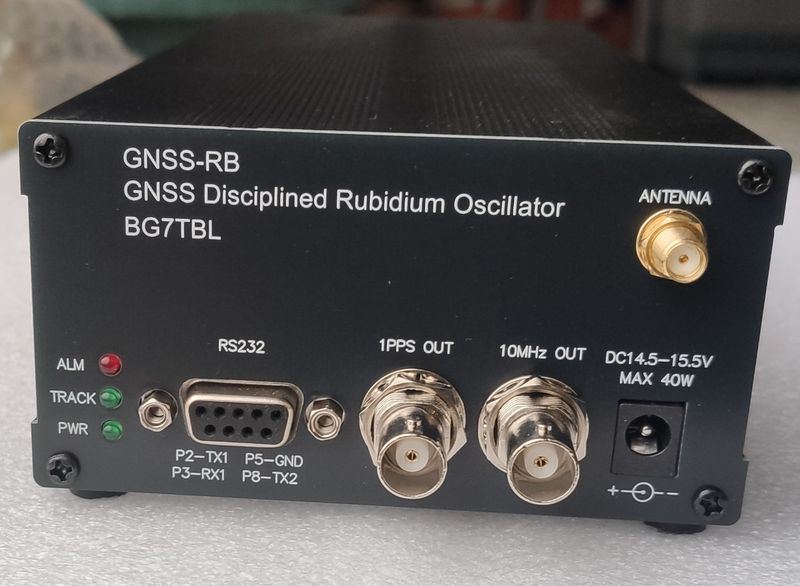

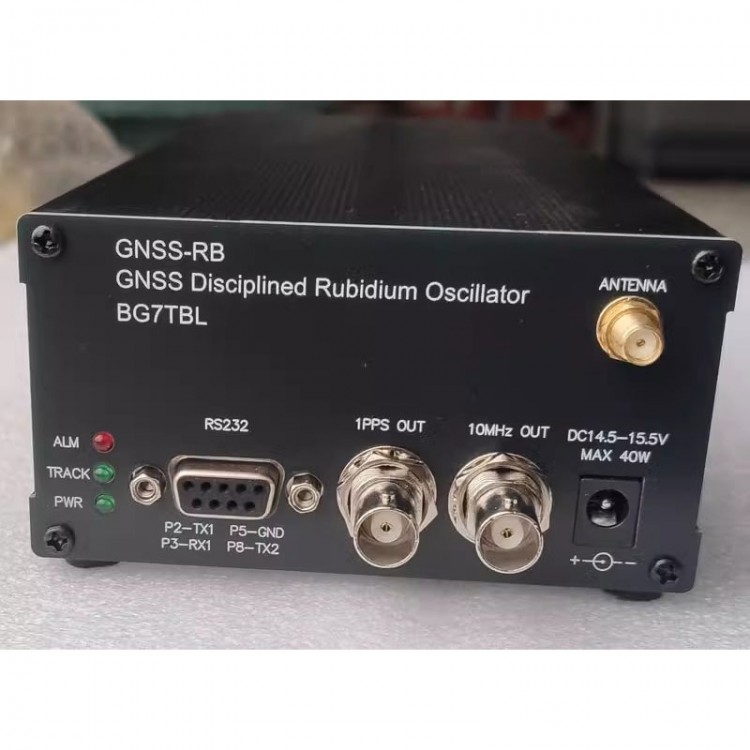

GNSS-RB-SR0100 GNSS Disciplined Rubidium Oscillator 1PPS Square Wave Output GPS/BDS/GAL/GLO/QZSS Receiving
Specification:

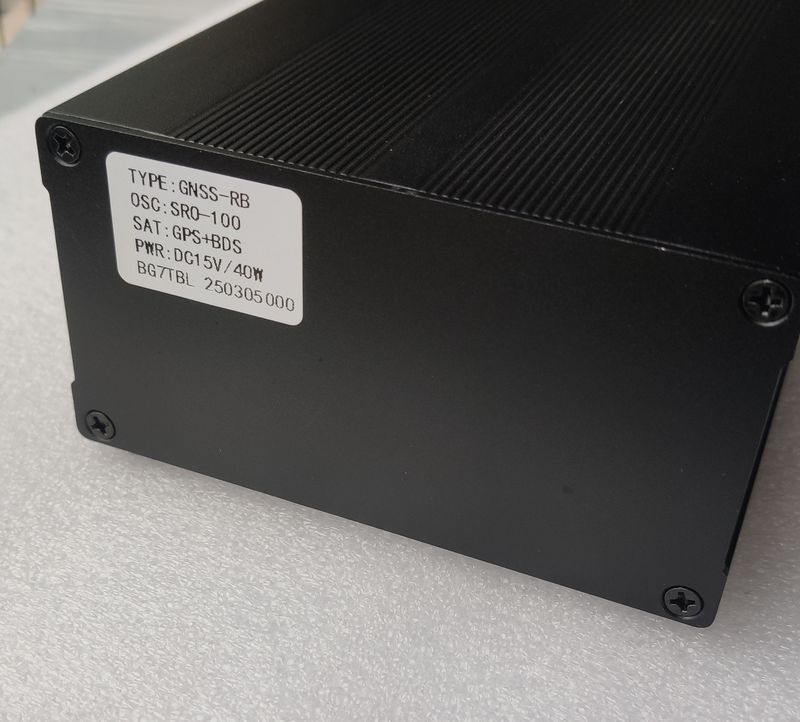

- Model: GNSS-RB-SR0100
- Power supply: DC14.5 - 15.5V start < 30W, stable < 15W
- GNSS antenna power supply: DC+5V/100mA
- GNSS receiving type: GPS, BDS, GAL, GLO, QZSS, single/double or multiple combination
- 1PPS characteristics: square wave, 3.3Vpp, 10% duty cycle, 1ns rising time
- 10M characteristic: sine wave, +12dBm amplitude
- Frequency accuracy: ±5E - 11 (factory settings)
- Frequency stability: ≤2E - 11/1s
- Phase noise: ≤-75dBc/Hz (1Hz)
- Reproducibility: < 5E - 11
- Day drift rate: <±5E - 12
- Harmonic: ≤-40dBc
- Non-harmonic: ≤-70dBc
- DB9 interface: GNSS NMEA protocol output, rubidium clock internal information output
- Using temperature: 0 - 55℃

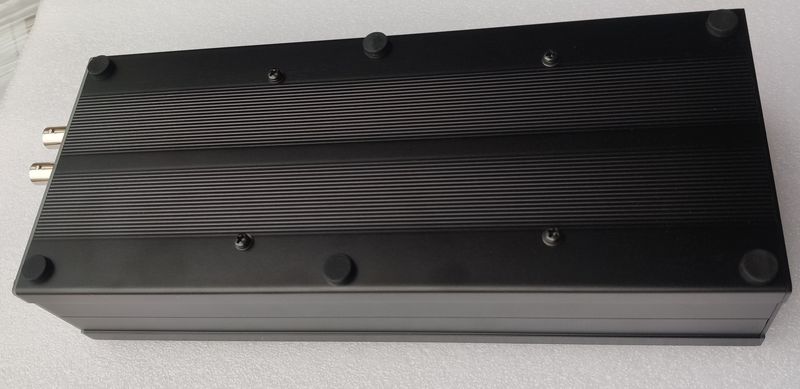

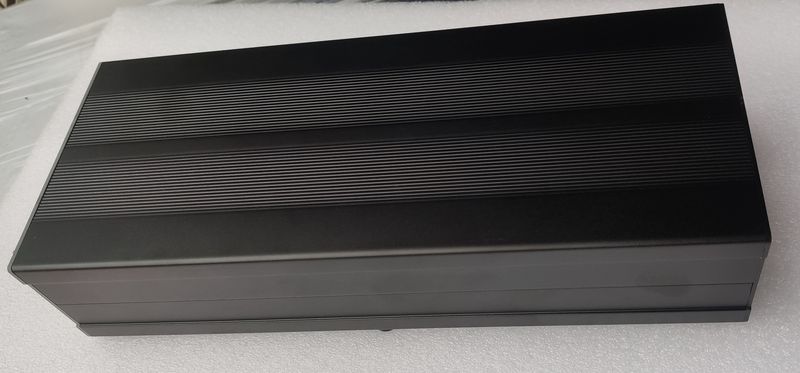

- Product size: 107 x 55 x 275mm (including the connector length)
- Net weight: < 2kg
Package Included:
- 1 x Rubidium Clock
- 1 x Power Adapter
- 1 x 5-Meter Antenna
- 1 x Adapter Board
