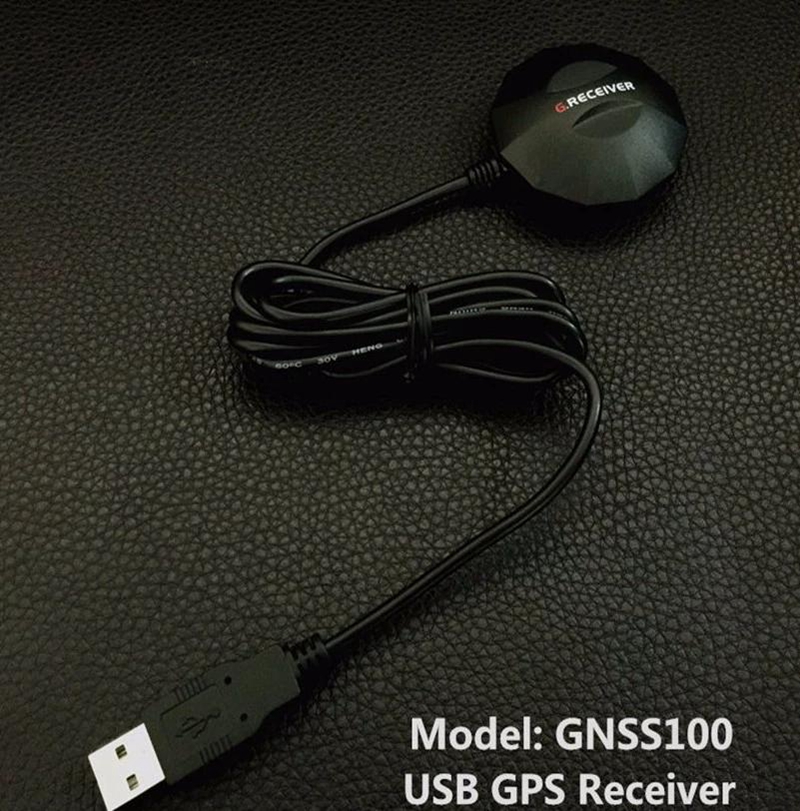

GNSS100 Magnetic USB GPS Module 50CH Receiving 1.5m GPS Receiver Built-in TCXO for Linux XP/Win7/8/10
Features:
- Built in TCXO device, maintaining good consistency within the temperature range of -40℃ to +85 ℃.
- Built in 20dB low noise amplifier and low loss filter, perfect support for passive antennas.
- The antenna end is equipped with high-quality ESD protection (TVS tube), ensuring that the ESD reaches above 8KV (air discharge).
- By default, it supports the wide area differential GPS augmentation system (S129, S137... Wide Area Augmentation Satellite)
Specification:
- Model: GNSS100
- Product name: GPS receiver

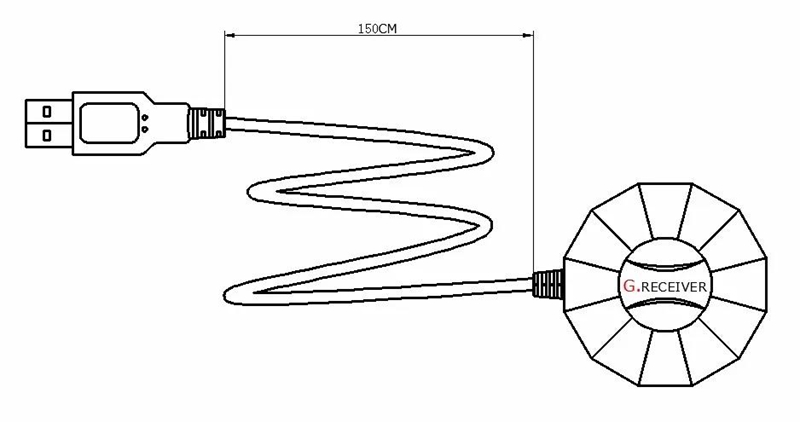

- Cable length: 1.5m
- Product interface: USB
- Communication protocol: USB
- Baud rate: 9600 by default
- Refresh frequency: 1Hz by default
- Waterproof level: IXP7

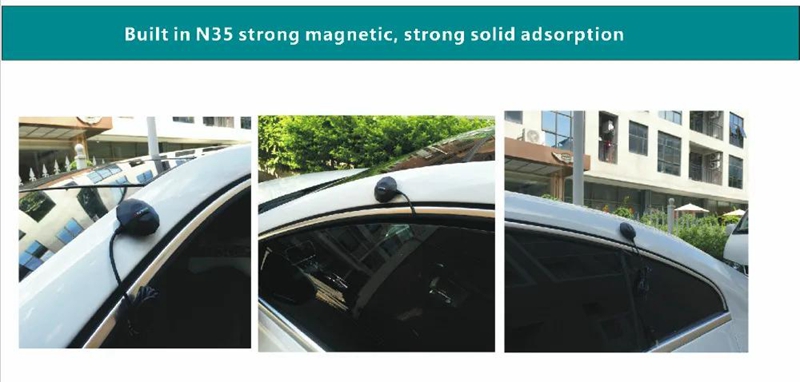

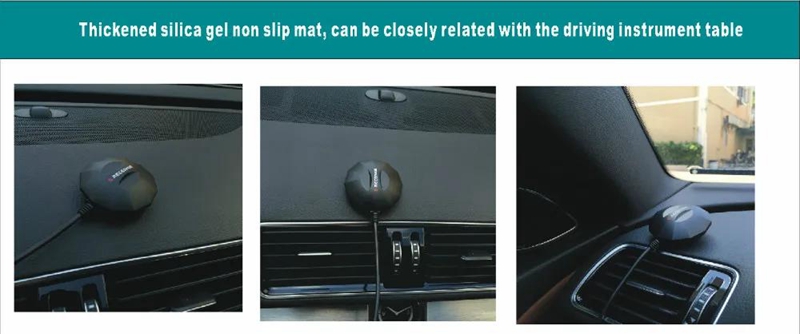

- Installation method: bottom strong magnetic and waterproof pad
- Master chip: U-BLOX G6010
- C/A code: 1.023MHz code stream
- Receiving frequency band: L1 (1575.42MHz)
- Receiving channel: 50CH
- Operating temperature: -40℃ to +85℃
- Packaging size: 30 x 30 x 7.5mm
Positioning Performance:
- <2.5m [Autonomous] [50%]
- <2.0m [SBAS]
- Speed: < 0.1m/s
- Direction: < 0.5Degrees
- Timing accuracy: 30ns
- Reference coordinate system: WGS-84
- Maximum altitude: 50000 meters
- Maximum altitude: 50000 meters
- Maximum speed: 500m/s
- Acceleration: < 4g
Electrical Performance:
- Tracking sensitivity: -160dBm
- Catch sensitivity: -146dBm
- Cold start time: 32s (average)
- Warm start time: 32s (average)
- Hot start time: 1s (average)
- AGPS (Network assisted ephemeris data): 3s
Interface Electrical Performance:
- Wide voltage range: +3.3V ~ +5.5V (main power supply); RTC power supply (not included)
- Built-in 25 x 25 x 4mm passive ceramic antenna
Others:
- Standard clock pulse: 0.25Hz ~ 1KHz
- Location update rate: 1Hz ~ 5Hz
- UART port interface (default)
- Data rate: 9600bps
- TIMEMARK pulse: 0.25Hz ~ 1KHz, width adjustable
Package Included:
- 1 x GPS Receiver
