GoGoPi Smart Robot Car Kit Unassembled AI Tracking Robot Car w/ Control Board For Raspberry Pi 4B 4G

GoGoPi Smart Robot Car Kit Unassembled AI Tracking Robot Car w/ Control Board For Raspberry Pi 4B 4G

Attention:
- Assembling is needed, with assembly tutorial provided.
- Core controller for Raspberry Pi 4B, and the memory is 4G.
- Equipped with 2DOF gimbal, which can track objects by gimbal and body.
- Provide detailed course materials and source code for Python, with tutorials.
- Free mobile phone APP is provided, which can quickly realize all gameplay.

Advantages:
- For OpenCV
- Computer vision
- For AI
- For Python programming
- Control board for Raspberry Pi 4B
- Mobile phone APP control
- High-definition camera

Description:

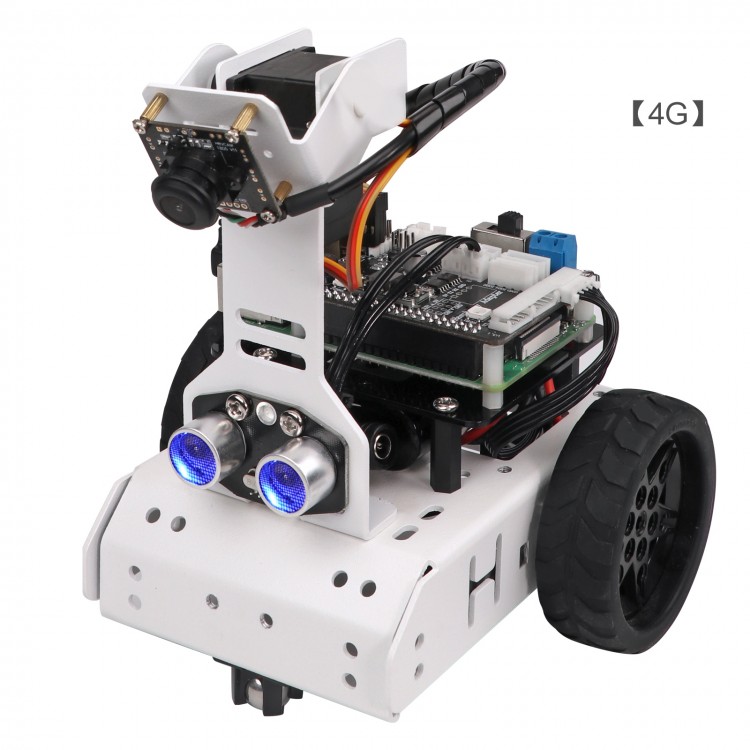

GoGoPi is an intelligent vision car, equipped with 2DOF gimbal and high-definition camera. With materials for OpenCV, it can realize color tracking, face tracking, finger recognition and other functions.

GoGoPi is equipped with RGB luminous ultrasonic, which can control the change of light and realize intelligent obstacle avoidance. In addition, it supports the expansion of multiple sensors, which can realize the fusion of multiple perceptions.

GoGoPi uses programming for Python. With detailed tutorial materials, and open source, you can easily learn AI knowledge!

What can you learn?
- For OpenCV
- Programming for Python
- Robot vision
- Build a machine vision programming environment

Features:
- Detailed course materials and development source code. Equipped with well-developed live-action video courses and rich learning materials to take you easy learning. Development source code for Python.
- Preset five smart play methods to make programming learning more interesting. Can be used for color tracking, face tracking, automatic obstacle avoidance, finger recognition, body remote control.
- Through mobile phone APP remote control, you can quickly experience AI functions. Provide a cellphone APP for Android and iOS systems. You can use the APP to experience all the gameplay such as color tracking and face tracking! The APP also supports functions such as photo storage. For Android APP, see the course materials. For iOS APP, please search for WonderPi in your mobile phone app store.
- FPV high-definition picture remote control. GoGoPi's APP can freely control the car body and gimbal. 480P camera on the gimbal can return the first vision to the APP control interface, making the remote control experience more exciting and real!
- Color tracking. Through materials for OpenCV, GoGoPi can intelligently track colors that have been set in the APP. After color is selected, GoGoPi will light up the colored lights of the corresponding color and run after the object of that color within the sight range.
- Face tracking, gimbal/car can work separately. GoGoPi can work with materials for OpenCV to track faces within the line of sight. Through mobile phone APP, you can set the PTZ to follow face alone, or set the PTZ and the car to follow the face.
- Finger recognition, human-computer interaction. GoGoPi can recognize the number of fingers in the visual range through that for OpenCV, and make feedback actions such as whistling, twisting, and changing lights based on recognition results.
- Luminous ultrasonic, automatic obstacle avoidance. The luminous ultrasonic sensor equipped with IIC interface can not only detect and avoid obstacles without occupying the CPU for Raspberry Pi. It can also adjust automatic obstacle avoidance distance and the luminous color of ultrasonic waves in real time through the mobile phone APP.
- Equipped with 2DOF gimbal, the car has no dead angles in 360°. The GoGoPi car is equipped with two anti-blocking servos. The angle of view of the pan/tilt can reach 1800° around and 1300° in pitch, and the visual range can reach 3600° with the flexible movement of the car.
- Support sensor expansion. GoGoPi reserves 3pcs IIC interfaces and 2pcs GPIO interfaces, which can expand a variety of sensors and realize the fusion of multiple perceptions.
- Open code for Python. All smart game codes for Python are open source and equipped with detailed annotations for users to learn by themselves.
- Two control methods: VNC remote desktop control, APP control for Android & iOS mobile phones.

Powerful Control System:
Control board for Raspberry Pi 4B and expansion board for Raspberry Pi can achieve more gameplay.

Control Board For Raspberry Pi 4B:
- For Broadcom BCM2711
- 64-bit 1.5GHz quad-core (28nm process)
- For Broadcom VideoCore VI at 500MHz
- Bluetooth 5.0
- USB 2.0*2/USB 3.0*2
- Micro HDMI*2 supports 4K 60Hz
- Type C (5V 3A)
- 802.11AC wireless 2.4GHz/5GHz dual-band WiFi
- True Gigabit Ethernet (network port reachable)
- Powered via additional HAT Ethernet (Poe)

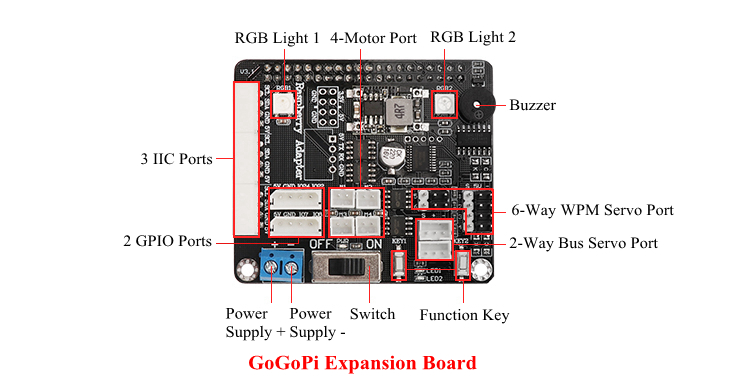

GoGoPi Expansion Board:
- Onboard independent switching power supply to ensure stable power supply
- 4 of the 6 PWM servos drives are equipped with over-current protection to improve the safety of use
- Onboard co-MCU, offload workload for Raspberry Pi, reducing resource usage for Raspberry Pi
- Built-in RGB lights, active buzzers, LED lights and other output response devices on the board
- 3pcs IIC interfaces for easy expansion
- Leads out multiple GPIO pins to facilitate development
- 4PIN anti-reverse plug interface, compatible with Hiwonder series sensors

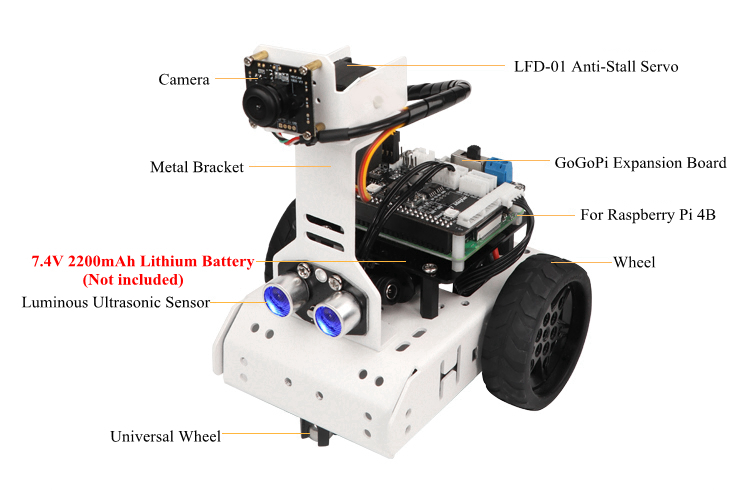

Body Parameters:

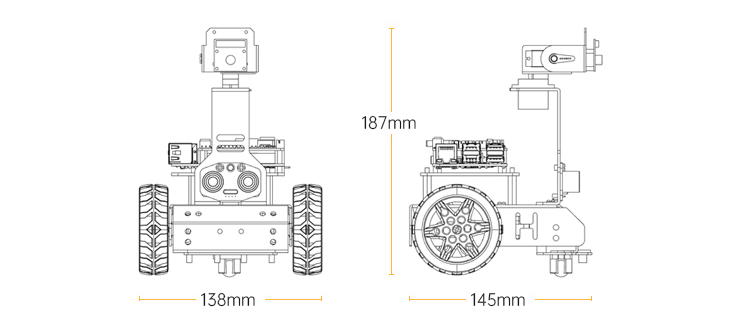

- Product size: 145*138*187 mm (LxWxH)
- Body weight: about 0.5kg
- Body materials: metal bracket, acrylic board
- Camera resolution: 480P
- Degree of freedom of gimbal: 2 DOF

Control System:
- Hardware part: Control board for Raspberry Pi 4B + GoGoPi expansion board
- Software: PC VNC software + mobile phone APP
- Communication method: Wi-Fi, Ethernet

Other Parameters:
- Servo parameters: LFD-01 anti-blocking servo, size: 32.5*12*29.85mm, stall torque: 1.8kg.cm 6V
- Control method: computer control/mobile phone APP control

Package Included:
- 1 x Set of GoGoPi Bracket
- 1 x Control Board For Raspberry Pi 4B 4G
- 1 x GoGoPi Expansion Board
- 1 x Camera & Connection Cable
- 1 x Luminous Ultrasonic Sensor
- 2 x LFD-01 Anti-blocking Servos
- 2 x Motors For TT
- 2 x Wheels
- 1 x Universal Wheel
- 1 x Charger
- 1 x Neutralizer
- 1 x 4PIN Cable
- 1 x Micro-USB Data Cable
- 1 x Set of Heat Sinks
- 3 x Balls (Red, Green & Blue)
- 1 x 16G TF Card
- 1 x Screwdriver
- 1 x Card Reader
- 1 x Bag of Accessories

Note:
- Assembling is needed.
- 7.4V 2200mAh lithium battery is highly recommended. Battery is not included in the package.
