Golden TV160-7SE Vbyone-HDMI-compatible Adapter LVDS Converter 4K LCD TV Motherboard Tester Maintaining Tool
Description:

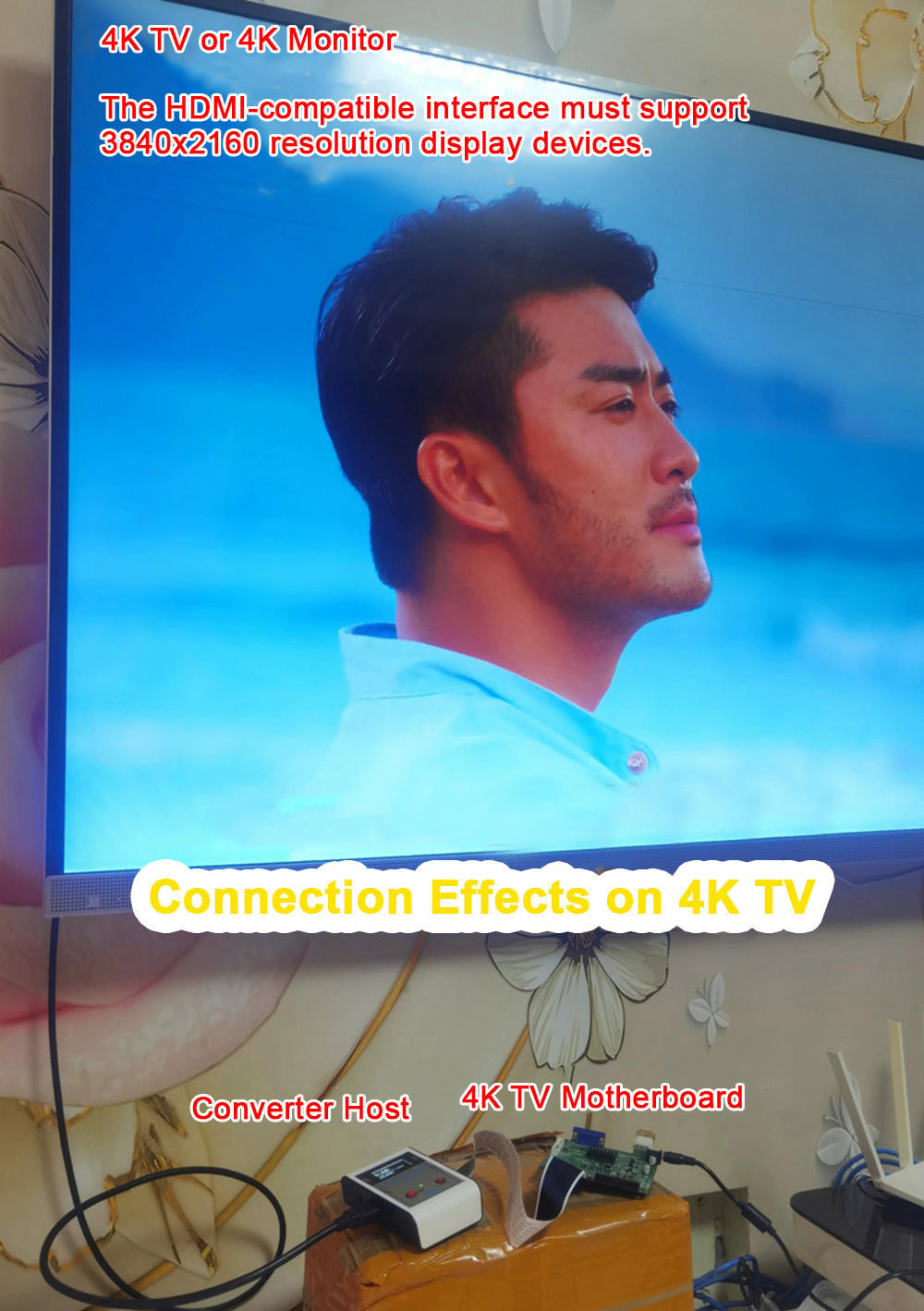

- This converter mainly solves the problem of 4K tablet PC maintenance and production, where the motherboard needs to be tested with a connected screen. Due to the variety of motherboard models, different screens need to be equipped for maintenance or production. In order to reduce the pressure on the fixture screen and prevent the screen from being burned out due to abnormal output signals caused by motherboard faults, resulting in huge losses. Based on this consideration, this converter can convert the 4K Vbyone signal sent by the motherboard into an HDMI-compatible signal to display images on 4K TVs, 4K monitors, and mobile phones for maintenance and debugging.
Features:
- This converter only supports 4K Vbyone signal input and does not support LVDS signal conversion. If you need to convert LVDS signals, you can add an LVDS to Vbyone multiplier board (not included) before this converter. It does not support dual screen 120Hz Vbyone signals, and the resolution of HDMI-compatible output is the same as the input resolution.
- Note that only when the Vbyone input is connected to the HDMI-compatible device, the small screen on this converter can display the input Vbyone format and HDMI-compatible resolution normally. That is to say, when the Vbyone signal is input, the HDMI-compatible also needs to be connected to an acquisition card or 4K display, and the acquisition card must be plugged into the phone; Otherwise, the parameters will not be displayed on the small screen.

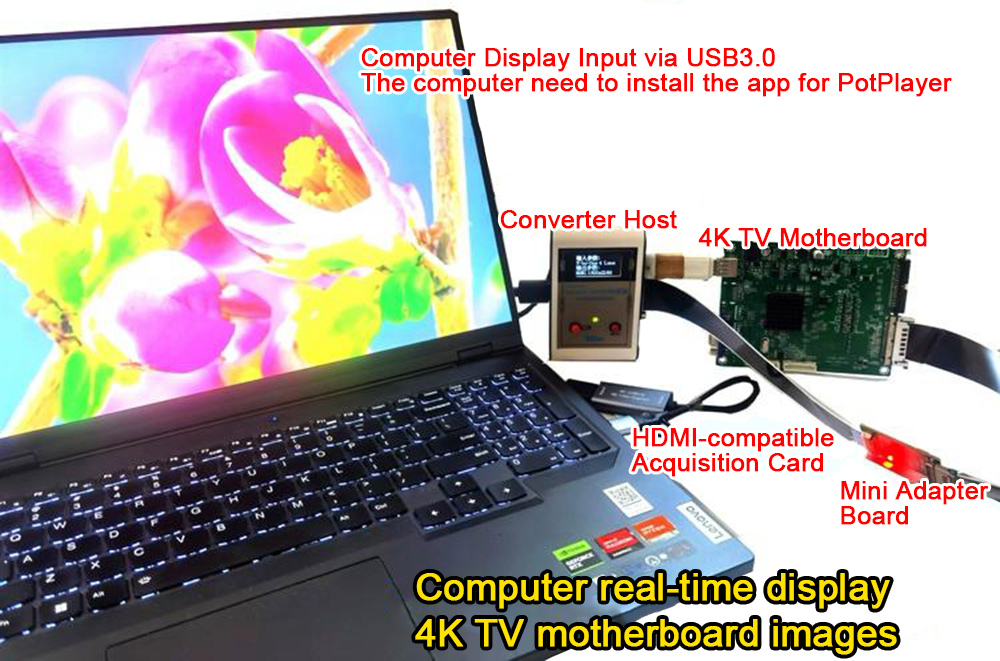

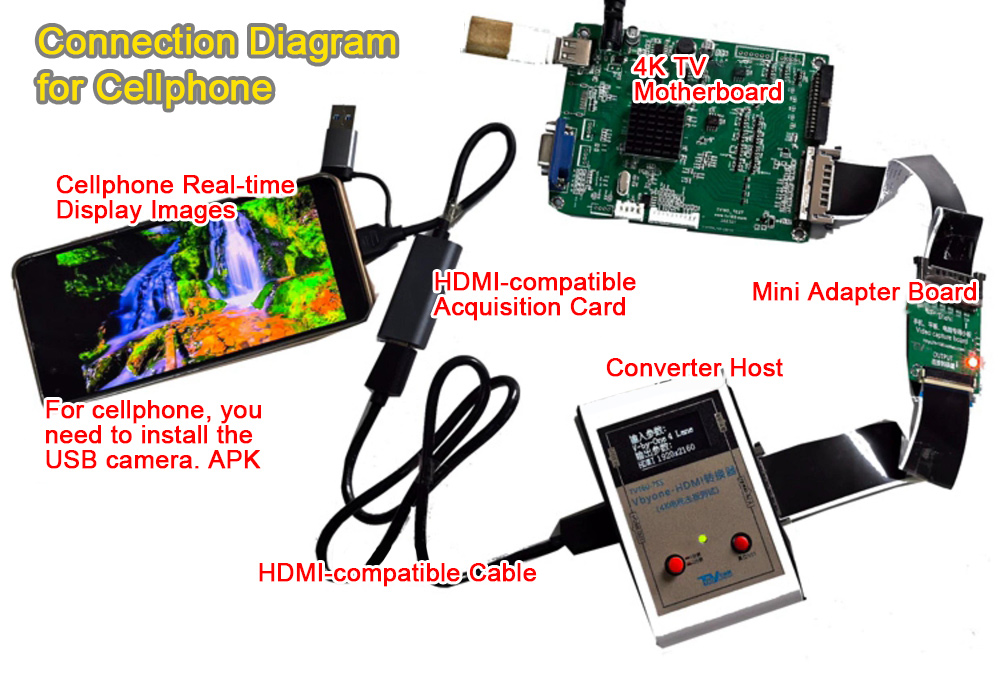

- When connecting the acquisition card, it is necessary to convert 8 sets of vbyone signals into 4 sets of vbyone signals through the acquisition card matching small board, otherwise the acquisition card does not support a resolution of 3840 x 2160; The TYPE-C acquisition card can be connected to a mobile phone or tablet PC to display motherboard images; The USB3.0 port can be connected to a computer's USB3.0 interface to display images sent by the motherboard, but this installation is required for Android phones and computers.
The TV160-7SE converter supports the following resolutions:
- VBYONE signal for 8 groups: 3840 x 2160/60Hz
- VBYONE signal for 4 groups: 1920 x 1080/120Hz
- VBYONE signal for 2 groups: 1920 x 1080/60Hz
- The above signal can support switching between 1-zone and 2-zone formats; It does not support 3840 x 2160/120Hz signals with 16 sets of dual screen cables. It cannot directly support LVDS signals. Users can purchase an LVDS to Vbyone multiplier board (not included) to test a 2k 1920 x 1080 LVDS motherboard.

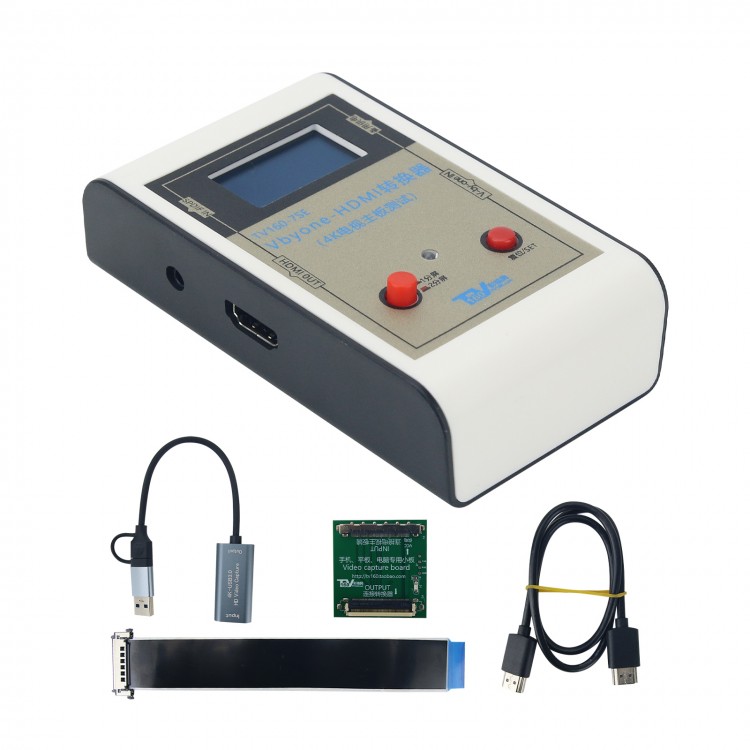

Package Included:
- 1 x Converter
- 1 x HDMI-compatible Acquisition Card
- 1 x HDMI-compatible Cable
- 1 x Mini Adapter Board
- 1 x 51Pin Cable
