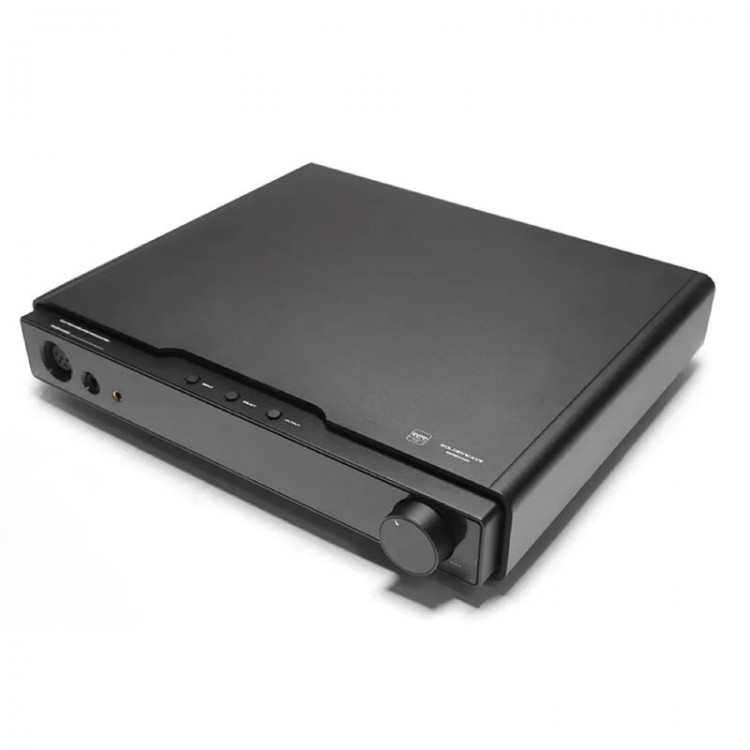

Goldenwave X HIFIMAN SERENADE Audio Decoder and Headphone Amplifier In One HYMALAYA Pro R2R DAC Module
Features:
- The HYMALAYA PRO R2R DAC core, with the dual support of a new FPGA algorithm and a precision resistance of 1/10000, outperforms the PCM1704 of the R2R DAC chip in terms of performance, achieving a total harmonic distortion rate of -60dB 0.2%.
- Using FET operational amplifiers, the discrete component LPF analog circuit has beautiful tube sound quality and high-precision low noise testing indicators.
- The design of full signal path uncoupled capacitors eliminates the nonlinear distortion caused by electrolytic capacitors, and the warm and mellow healthy sound replaces the pathological beauty.
- The SERENADE headphone amplifier circuit is based on Class A design, supplemented by paired fully discrete transistor amplification circuits, allowing the headphone amplifier circuit to inherit the sound of advanced headphone amplifier of the same series.
- A high-quality 50W circular transformer with a whole strip iron core winding, coupled with an electrolytic capacitor of nearly 30000uF and a multi-stage multi-channel low noise high-speed voltage stabilizing circuit, provides a clean and fast power supply for the entire machine.
- Rich lossless client-side support network streaming push playback of multiple mobile music playback software.

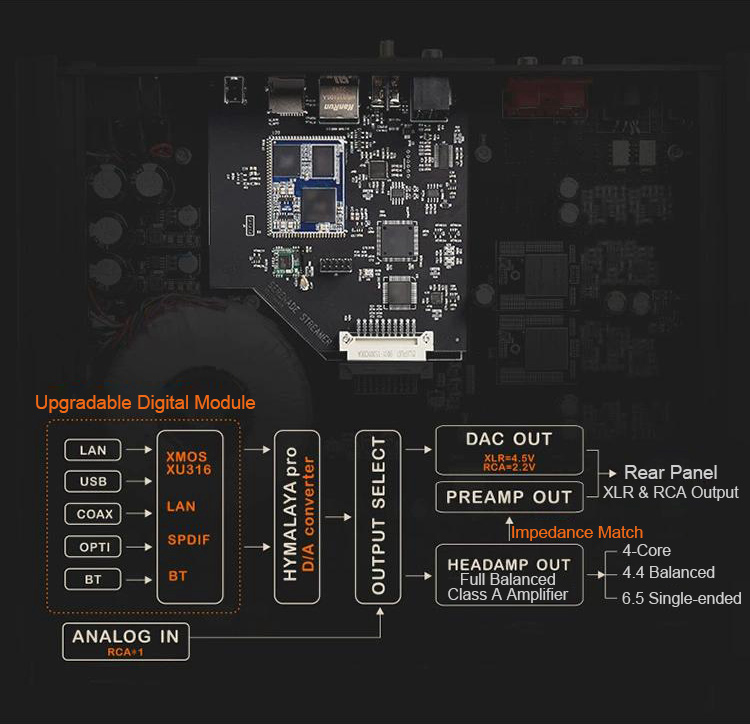

Digital Input and Supported Format:
- USB: PCM32bit/384K, DSD64 - DSD256
- COAX/OPTICAL: PCM32bit/192K, DSD DoP64
- Bluetooth: Bluetooth 5.0, LDAC, for aptX-HD, for aptX
- LAN network: PCM44.1 - PCM768, DSD64 - DSD512
Specification:
- Frequency response: 20Hz - 20KHz, +/-0.1dB at 1KHz
- THD+N: 0.0015%, -3dBFS at 1KHz
- SNR: -110dB, 0dBFS at 1KHz
- Channel separation degree: -120dB, 0dBFS at 1KHz
- DAC output level: 4.5V/XLR, 2.2V/RCA, 0dBFS at 1KHz
- Headphone amplifier output power: THD+N < 0.07% at 1KHz
- Balanced output: 4000mW at 32ohm, 760mW at 300ohm
- Single-ended output: 2800mW at 32ohm, 510mW at 300ohm
- Net weight: 3.9kg
- Product size: 300 x 255 x 50mm
Package Included:
- 1 x SERENADE Decoder
