GOSAFE-DE6516 H.265 H.264 4K 36 Channel Network Monitoring Video Decoder Support 8 Megapixel Resolution Camera Access

GOSAFE-DE6516 H.265 H.264 4K 36 Channel Network Monitoring Video Decoder Support 8 Megapixel Resolution Camera Access

Features:
- Unlimited number of channels
- IPC/NVR/DVR hybrid access
- Support infrared remote control/mouse and software operation
- 4K ultra clear output
- Support video camera decoding and display below 8 million pixels
- 36-Channel video multiplexer; 1/4/9/16/25/36 (D1 at 15fps/CIF at 25fps) display
- 1 channel HDMI (4K)/VGA output, compatible with H.265/264

FAQ:
Q: 1. Which manufacturer's equipment access decoding is supported?
A: It supports the access of common brand cameras and embedded video recorders on the market, such as for Haikang, for Dahua, and also supports the access of analog DVR, coaxial high-definition VR, streaming media, and for ONVIF protocols. It can also customize RTSP/RTMP address to add devices. The flexible choice of streaming and decoding from the video recorder or camera can effectively reduce the occupation of network bandwidth. It also supports the new firmware version after for Haikang 5.5, which can be used without entering the camera to enable ONVIF.

Q: How many channels is this?
A: The DE6516 is a single channel output with an HDMI and VAG interface, which can be connected to a display. Support 1/4/9/16/25/36 split display. Access the network monitoring video through the network port, without limiting the number of inputs, and support the addition of all monitoring devices, arbitrary image switching, and drag operation. This is similar to client software. This is obviously different from the operation mode and image display mode of NVR video recorder.

Q: How many pixels of camera can be decoded? Is the picture clear?
A: The DE6516 supports 8 million pixel camera and below, and 4K output display. The sub code stream of the camera is displayed in multiple images, and the main code stream of the camera is displayed in a single image. When switching to a single image, it will automatically switch to the main code stream. The hardware can display up to four 1080P main code streams at the same time. Don't worry about the unclear sub code stream of multi screen display, for example, sub code stream 704 x 576 (sub code stream resolution D1) x 16 (picture) ≈ 6.48 million pixels of 16 D1 resolutions, which is much larger than the display resolution 1920 x 1080 ≈ 2 million pixels. The picture quality can be adjusted by adjusting the camera bit stream, resolution and other parameters.

Q: Will the decoded image get stuck?
A: The DE6516 video decoder is an embedded system specially designed for video display. It has enough configuration within the nominal decoding capacity to avoid image jam due to insufficient hardware configuration of the decoder. In case of image jam, first check the network connection, such as IP conflict, poor network quality, ping dropping and other network connection reasons, and then check the camera frame rate, code stream and other coding settings, as well as whether there are insufficient resources due to multiple connections. If the problem cannot be solved, you can contact us at any time to provide technical support or remote assistance to solve the problem.

Q: What should I do if there is too much screen to display?
A: Basically, the real decoder does not limit the number of input channels. It can switch the image display at will. But what if the image to be displayed exceeds the maximum image segmentation display?
The DE6516 video decoder supports the screen rotation display. It can add different images for each segmentation window for rotation display. Also, based on the feature of unlimited input, the number of images that can be added to each window is unlimited. In this way, the number of images that can be rotated in each window can be flexibly set to meet various needs.

Q: How does the decoder operate? Need settings? Need a computer?
A: The DE6516 video decoder supports direct mouse insertion, computer client software operation, infrared remote control (purchased separately) and other operation modes.
When using, first set the IP address of the decoder to be in the same network segment or able to communicate with the camera and other devices, then search and add the camera or video recorder (remember to enter the correct password before searching and adding), and finally drag it to the window to display in the TV wall control.
The DE6516 video decoder has a built-in graphical operation interface, which can be directly inserted into the mouse for operation. After canceling the single decoder mode, you can also operate multiple networks with only one mouse. Of course, it also supports computer client software operation. We provide free centralized monitoring management platform software and tool software (integrated simple client). After setting, all data is saved on the decoder. After the decoder is restarted, the image connection and round robin display will be automatically restored, without the computer being turned on all the time.

Q: When the same batch of cameras need to be displayed in multiple places, what if the number of camera connections exceeds?
A: Sometimes users will ask for the same batch of cameras, and the same image needs to be displayed in multiple places at the same time, which exceeds the limit of the number of camera connections. For example, common brand cameras for Haikang can be connected for 3-6 times according to different configurations. NVR has been connected to the video and the main and sub code streams have been connected for two times. If it is necessary to display the same image in other places, if an NVR is added to add these cameras, It is equivalent to two more connections, because NVR will obtain the main and sub code streams at the same time, which is equivalent to multiple connections of cameras, causing double burden, which may lead to competition for resources, black screen and other situations, resulting in intermittent video recording. Therefore, for Haikang NVR will restrict multiple NVR to add the same camera at the same time. Of course, there is no limit to some OEM or small brand NVR, so some so-called decoders in the market are just NVR with a new shell. Using this device to decode is to use two NVR to connect a camera at the same time, which takes up camera resources and increases the network burden exponentially.
A real video decoder is different. It does not connect the camera's main and sub code streams at the same time as NVR. When the decoder has multiple images, it only connects the camera's sub code streams for display. When switching to single image display, it automatically connects the main code stream to ensure the clarity of full screen display. It only connects the camera once at the same time. It also supports the addition of embedded NVR stream fetching decoding. When adding NVR decoding, The decoder obtains the NVR forwarded image from the NVR and does not directly access the camera, which can effectively reduce the number of camera connections and increase the number of displays. By separately adding video cameras and video recorders for decoding, the number of connected displays can be effectively increased to address the need for 3-6 places to display.
If more times of display are needed, we need to use the decoder to cooperate with our SS8128 streaming media server for forwarding. The same image can be easily displayed 128 times. It can also be cascaded.

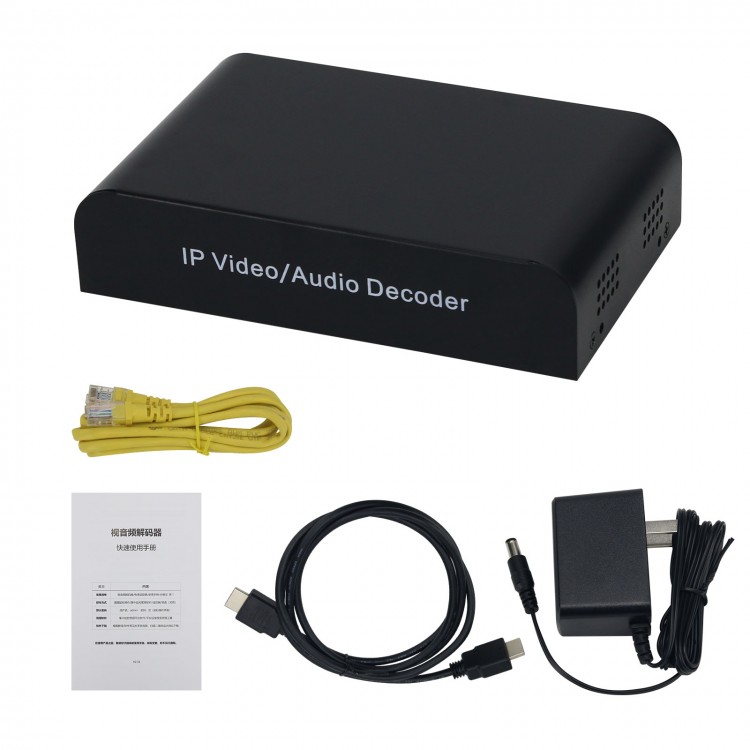

Package Included:
- 1 x Decoder
