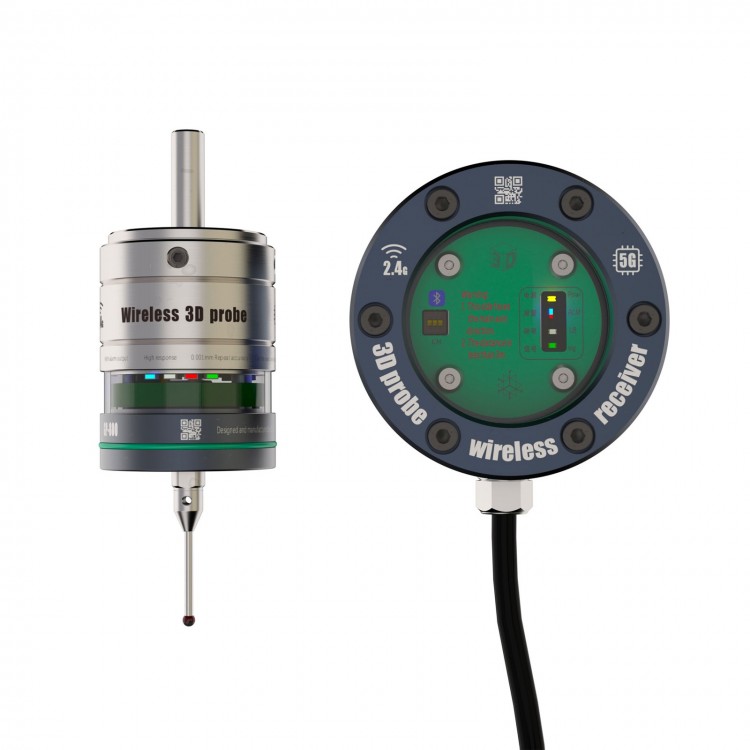

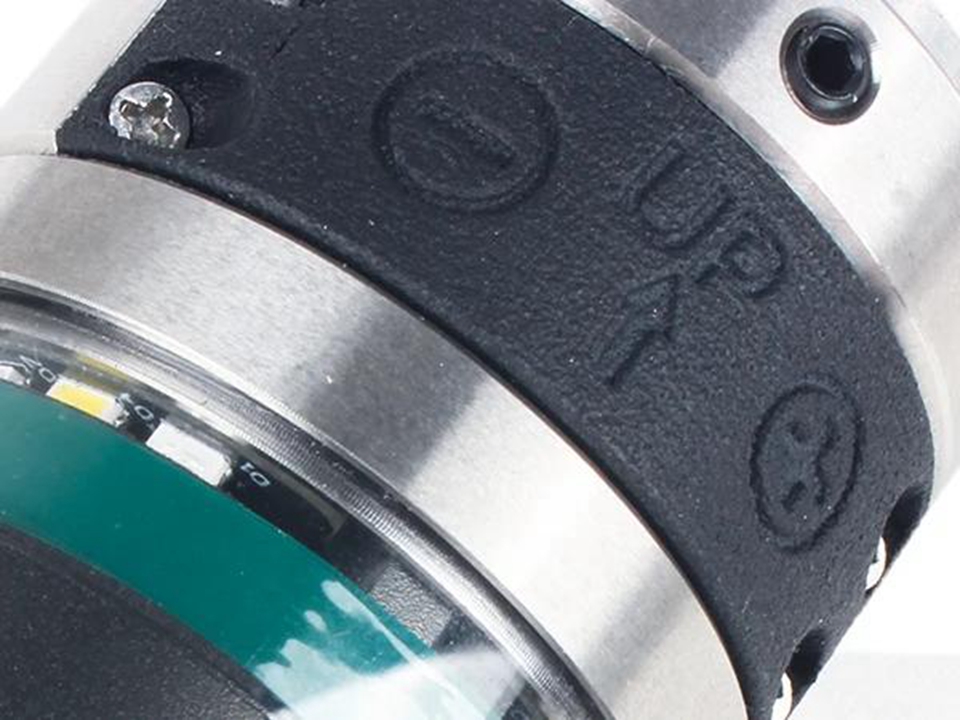

GP-800 CNC Wireless 3D Edge Finder 1um High Precision Waterproof Edge Finder Highlight LED Display

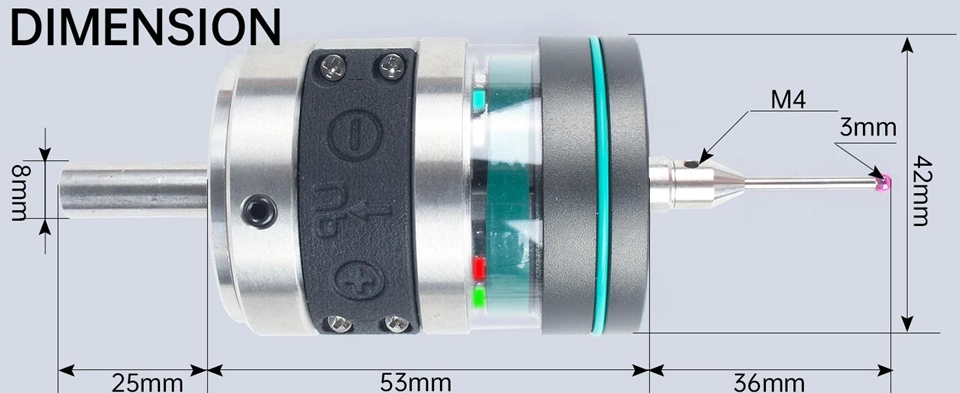

Specification:
- Material: 304 + 7075
- Receiver outer diameter: 75mm
- Probe thread: M4
- Probe length: standard 30mm
- Probe precision: 0.001mm

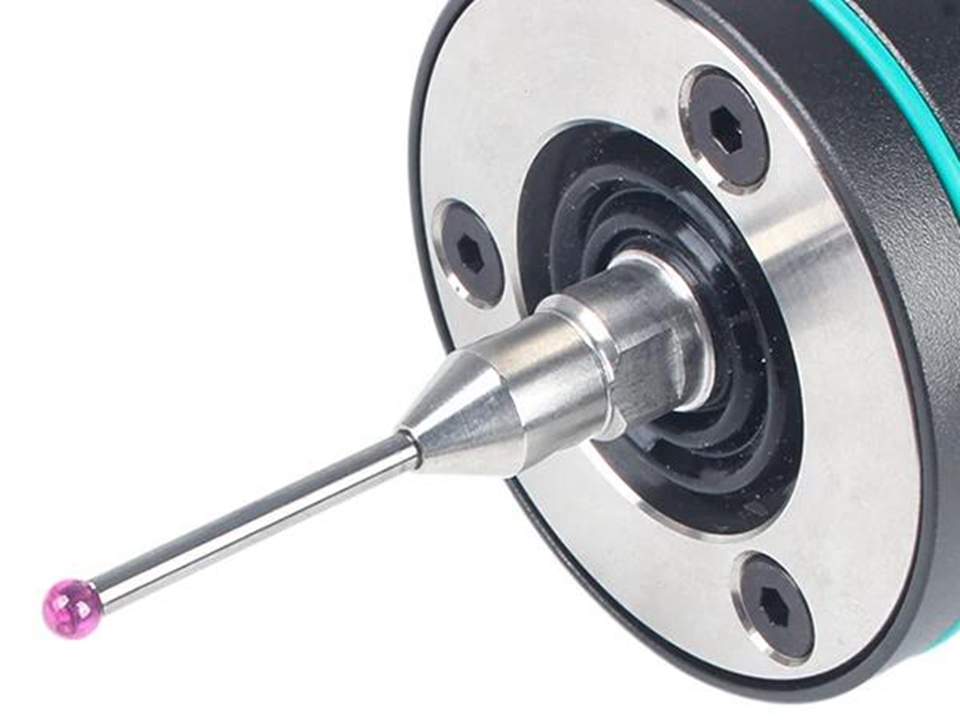

- Probe measuring head: 3mm (diameter) ruby
- Measuring clamp diameter: 8mm
- Clamping length: 25mm

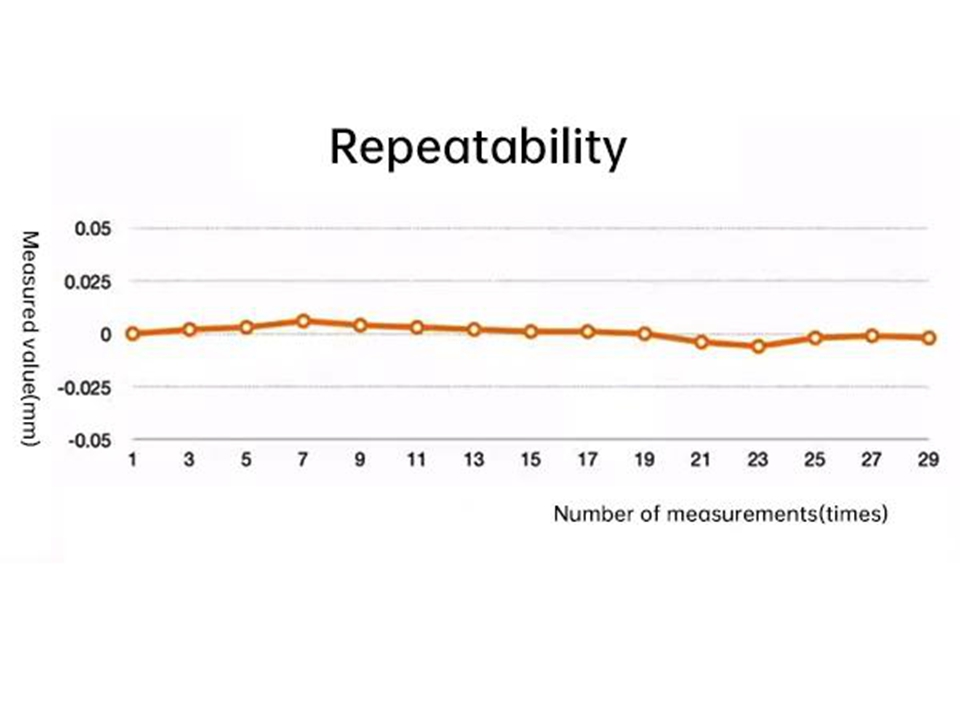

- Repetition precision: 0.001mm
- XY travel: 15”
- Z travel: 2.5mm
- Wireless transmission method: 2.4G bidirectional communication
- Wireless transmission distance: 3m (expandable)
- Offline working: support
- Wireless working: support
- Connection method: wireless connection
- Waterproof level: IP67
- Built-in battery: 3.6V 14250 lithium battery
- Receiver voltage: DC 5 - 24V
- Alarming output: yes
- Built-in battery voltage low output: yes

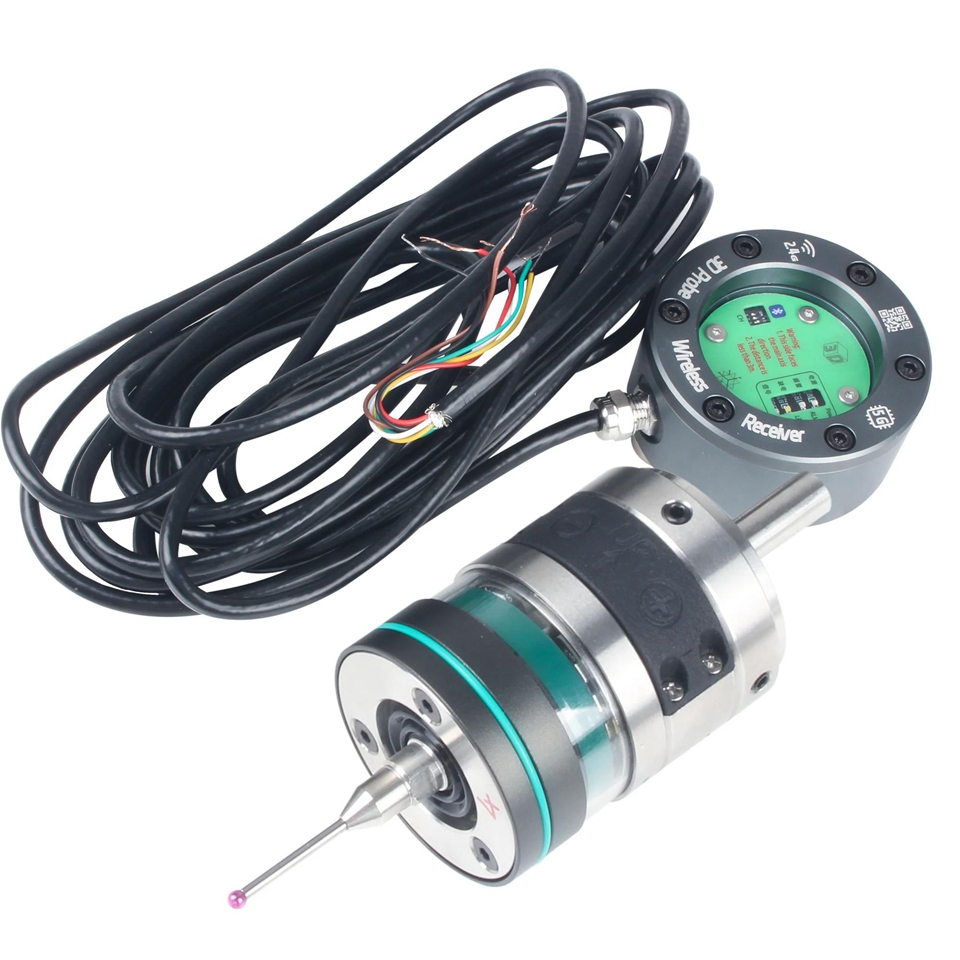

Package Included:
- 1 x Edge Finder
- 1 x Ruby Stylus
- 1 x Signal Receiver
