GP319 1-24S Lithium Battery Tester Battery Voltage Tester with Tool Box Enables Quick Measurement
Description:
GP319 is a handheld lithium battery meter. It can quickly detect the voltage of 24S batteries at the same time, automatically analyze and compare the voltages. GP319 has high accuracy, strong timeliness and clear display. It is simple, practical and reliable to use and easy to carry. It is a cost-effective battery tester.
It is suitable for outdoor detection and on-site analysis of battery voltage for scientific research units, battery dealers, battery production units and battery protection system production units.
Features:
- Can be used to detect rechargeable batteries, including lead-acid batteries, nickel-cadmium batteries, nickel-metal hydride batteries, lithium-ion batteries, lithium-polymer batteries and super capacitors
- A high-precision 12-bit high-voltage A/D detection circuit is integrated
- Supports online detection and battery status judgment of 1~24S batteries in series
- Real-time data analysis and display (including total voltage, highest voltage channel, highest voltage, lowest voltage channel, lowest voltage and maximum voltage difference)
- Supports two voltage display modes (analysis mode and high accuracy mode)
- The voltage safety parameters (maximum allowable voltage, minimum allowable voltage and two-stage allowable voltage difference) of battery can be set, with buzzer alarm
- All input channels support reverse polarity protection and short-circuit protection
- High-grade LCD display ensures stable and clear data. Its backlight can be manually controlled
- The system supports two power supply modes. It can be powered by the battery under test or by an external 9V square battery
- The system has low power consumption, beautiful and small appearance and solid structure. It is easy to carry
- The interface is imported 26-pin IDC socket, with 2.54mm pitch and gold-plated pins. The contact is firm and reliable to use
Working Environment Requirements:
- Working temperature: 10°C~40°C
- Storage temperature: -10°C to 50°C
- Operating environment and relative humidity: ≤70% RH (no condensation)
- Storage environment and relative humidity: ≤80% RH (no condensation)
- Application: Used indoors and outdoors

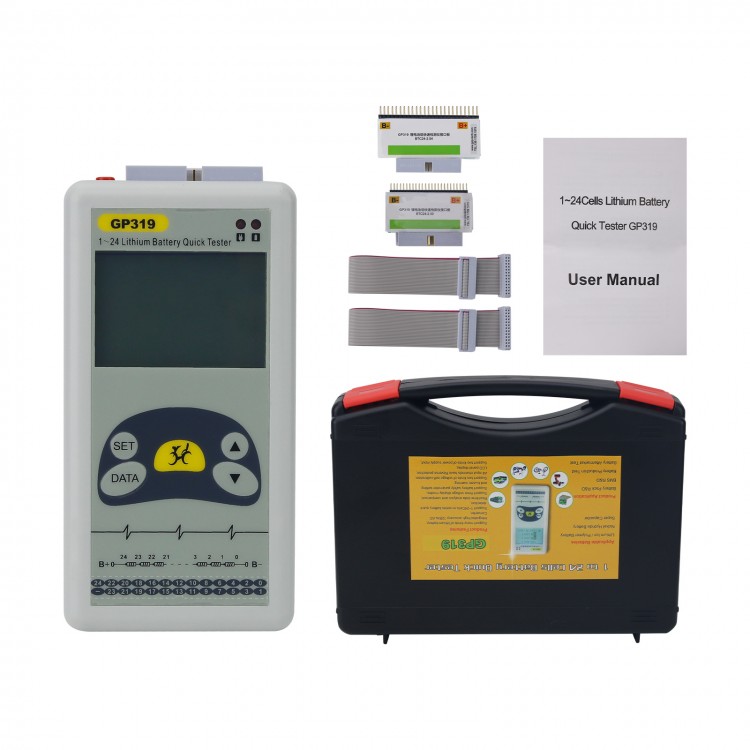

Package Included:
- 1 x GP319 tester
- 1 x BTL-24 test cable
- 1 x Test connector BTC24-2.54mm pitch
- 1 x Test connector BTC24-2.00mm pitch
- 1 x User manual
- 1 x User calibration instructions
- 1 x Plastic tool box
Note:
- It is powered by one 9V square battery which is not included in the package.
