GPS Clock GPS Disciplined Oscillator OCXO GPSDO 10MHz Square Wave Sine Wave Blue Screen+UTC

GPS Clock GPS Disciplined Oscillator OCXO GPSDO 10MHz Square Wave Sine Wave Blue Screen+UTC

Features:
- Adopts TRIMBLE GPSDO disciplined clock 10MHZ (Second Edition)
- The antenna must at least guarantee 50% of the sky to be better locked. The antenna is recommended for the top floor building.
- Low power consumption. Start DC 10V-24V, <1A. After stabilization <0.6A
- Screen display various status information
- PPS phase, MCU temperature, number of visible satellites, number of available satellites, and number of satellites locked
- GPS status, output status, positioning information, error information, and average frequency over time, non-real time information, various other states
- Reserve DB9 serial port to read more information
- The first time to calculate the location information, locking needs 4 stars or more.
- Secondary use: Lock 3 stars to lock. 2 stars can still remain locked after locking. 1 star enters the holding state.
- Statistical average of 24 hours after locking can reach 1*10-12 accuracy
- SMA port with female hole for GPS antenna
- SMA port with female hole for 10MHz sine wave 50Ω 7dbm±1dbm
- SMA port female hole 1PPS output
- BNC port female hole output 10MHZ square wave, 50Ω ≈ 1.7Vpp 1M ≈ 3.4Vpp
- DC5.5*2.1 power supply port

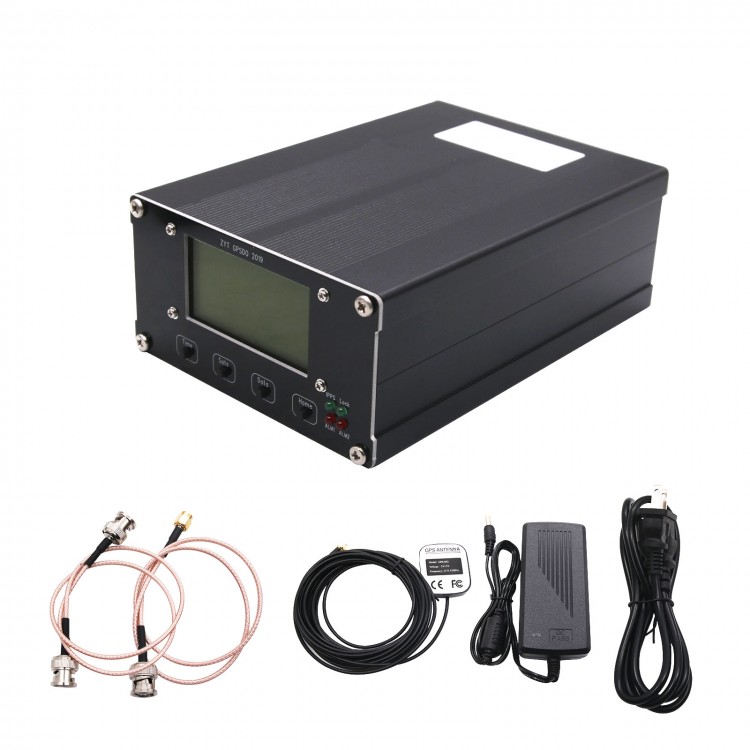

Package Included:
- 1 x GPSDO GPS Clock Blue Screen+UTC
- 1 x Set of Power Adapter (Input AC100-240V; Output 12V 3A )
- 1 x BNC to BNC Cable 0.5m
- 1 x BNC to SMA Cable 0.5m
- 1 x GPS Antenna 5m
