GPS Disciplined Clock GPS Disciplined Oscillator Frequency Standard for GPS BD Square Wave Silver

GPS Disciplined Clock GPS Disciplined Oscillator Frequency Standard for GPS BD Square Wave Silver

Features:
- GPS/BD dual-mode disciplined clock.
- Built-in 10MHz SC-cut OCXO.
- Output 1-channel 10MHz clock signal (Square Wave).
- Output 1-channel 1PPS timing pulse (synchronized to GNSS).
- GPS/BD Beidou dual-mode satellite navigation receiver collects more available satellites at the same location at the same time.
- Small size and high performance. Second stability is better than 5E-12. 1-1000s frequency stability is greater than 2E-11. Over 10000s frequency stability is better than 2E-12.
- Optimized digital phase-locked loop algorithm and hardware circuit.
- 5V power supply, starting power consumption is less than 4W, and steady state power consumption is less than 2W@25C.
- USB communications port for configuring GNSS receiver NMEA messages via USB.

Interfaces:
Front Panel:
- PWR: Power Indicator. It is on when the clock is powered on.
- TRACK: GNSS Tracking Indicator. When it is flashing, it indicates that it is tracking GNSS to correct OCXO frequency offset.
- GNSS: Satellite Navigation Receiver Indicator. It is on when the receiver works normally.
- COM: Communications Indicator. It flashes when there is data transmission.

Ports:
- USB: Micro USB Communications Port.
- 5V DC: 5V Input Port for DC Power Adapter. Input Voltage 5V-5.5V and 1A.

Rear Panel:
- GNSS Antenna: GNSS Antenna Input with 3.3V feed.
- 10MHz: 10MHz Clock Output. 5V Square wave.
- 1PPS: 1 Second Timing Pulse Output. Valid rising edge with positive pulse width 100ms and 5V HCMOS.

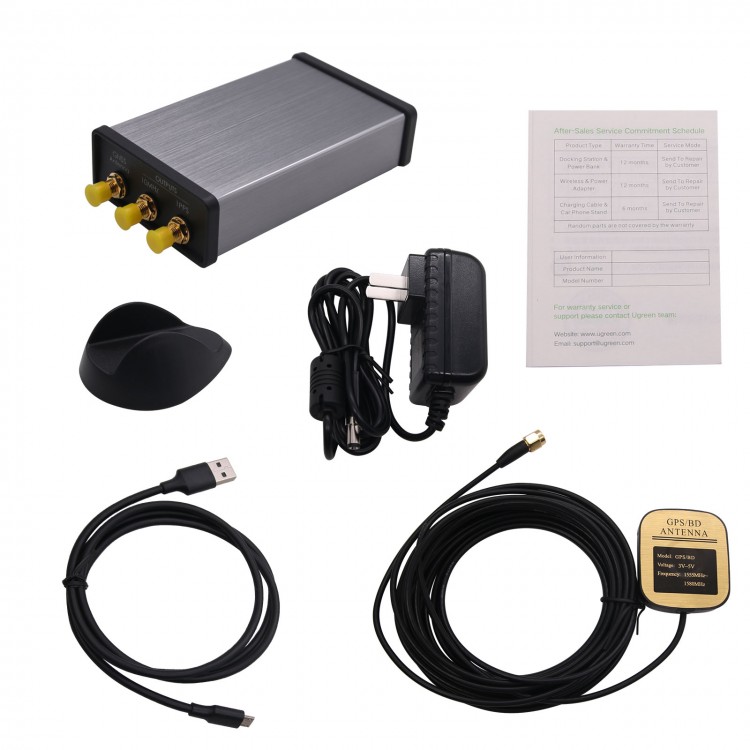

Package Included:
- 1 x GPS Clock
- 1 x 5V/1A Power Adapter
- 1 x USB Cable 1M
- 1 x GPS/BD Dual-Mode Antenna 5M
