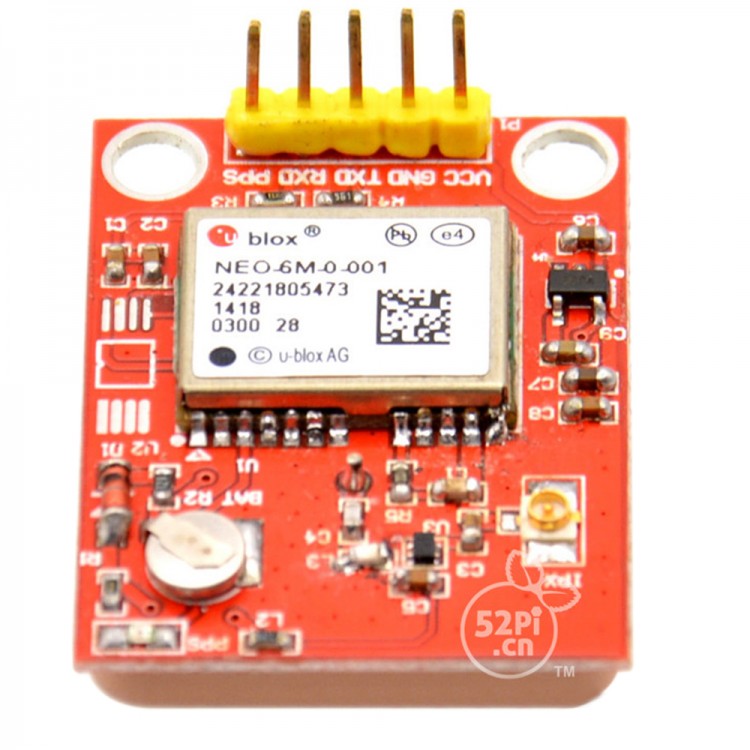

GPS-NEO-6M-001 3V 5V GPS Module with 25mmX25mm Ceramic Passive Antenna for DIY

GPS-NEO-6M-001 3V 5V GPS Module with 25mmX25mm Ceramic Passive Antenna for DIY

Description:
The module uses the NEO-6M U-BLOX module, the module comes with high performance ceramic antenna, which is equivalent to the integrated active antenna.

Module is with EEPROM, all configuration information can stored in the EEPROM, meet your various configuration requirements, module also comes with a rechargeable battery backup (to support start-up temperature or hot start, backup battery after the main power outage can maintain for half an hour or so of the GPS receiver data storage).

Features:
- Using NEO-6M U-BLOX module, compact size, excellent performance.
- Comes with the ceramic antenna, strong ability to search star.
- Through the serial port to carry out a variety of parameters settings, and can be saved in the EEPROM, easy to use.
- Compatible with 3.3V/5V level, easy to connect a variety of single-chip system.

Specification:
- Supply voltage: 3V/5V power supply
- Model: GPS-NEO-6M-001
- Module with 25mmX25mm ceramic passive antenna, signal super
- LED signal indicator
- Antenna size 25*25mm
- Module size 25.5mm*31.5mm
- Mounting aperture: 2mm
- The default baud rate: 38400
- Default output: NMEA0183 protocol

Parameters:
- Interface: TTL, compatible with 3.3/5V SCM system
- Receiving: 50CH, GPS L1(1575.42Mhz) C/A code, SBAS: WAAS/EGNOS/MSAS
- lOCATION ACCURACY: 2.5mCEP (SBAS: 2.0mCEP)
- Update speed: Up to 5Hz
- Cold boot: 27S
- Warm boot: 27S
- Hot boot: 1S
- Sensitivity: -161dBm
- Communication protocal: NMEA(default)/ UBX Bimary
- Seriel port communication baud rate: 4500,9600,19200,38400,57600,115200,230400
- Operating temperature: -40~85 deg C
- Size: 25.5*31 mm

Note:
- The current is the one that under the continuous
- When VCC>3.3V, VCCX=3.3V
- 510Ohm resistor for TXD and RXD, the wire resistance should not be too big.

Package included:
- 1 x GPS Module
