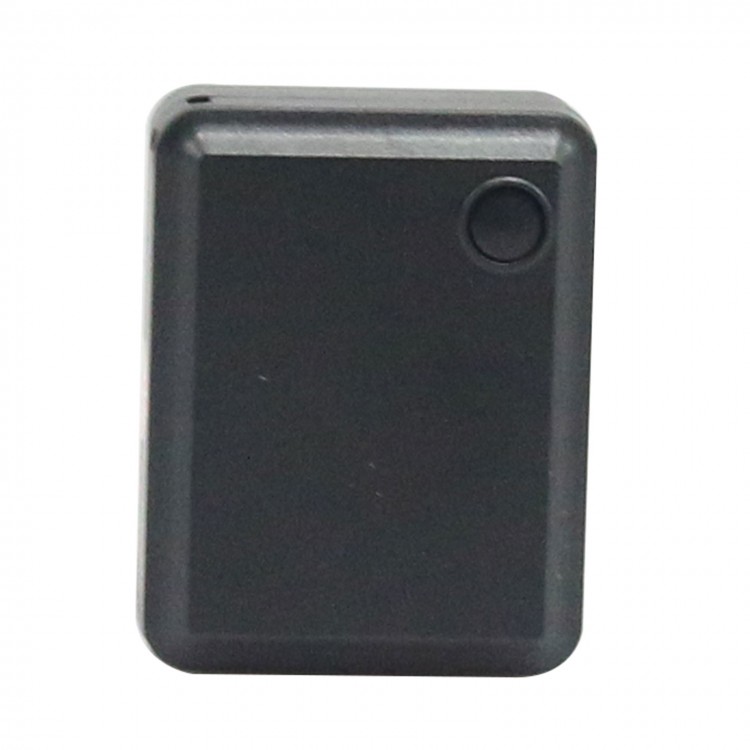

GPS Tracker TK105 Global Real Time LBS /GSM/GPRS Tracker Tracking Device Function

GPS Tracker TK105 Global Real Time LBS /GSM/GPRS Tracker Tracking Device Function

Description:
- Quad Band:850/900/1800/1900mhz

Usage
- SIM card installation
- Make sure that there is no call transfer and call display is on, and PIN code off. The SMS message must in Text format, can’t be identified for PDU format.

Startup
- Put the SIM card in SIM card slot, device will start automatically, red light keep stable lighting, device light turns off and enter into power-saving mode after 5 minutes.
- In 10 - 40 seconds, the unit will begin to work and acquire the GSM signal as well as the LBS signal and start normal working.
- For first use, please initialize the unit and restore it to default setting.
- Device Parameter Settings

Initialization
- Send SMS “SBCZ” to the tracker, it will reply “RESET OK” and initialize all the settings. (Default password: 123456).
- Remark: initialization is resetting all the parameters to factory defaults.

Set password
- Set Password: Send SMS: “# mm #old password#new password#” to the unit to change the password,it will reply SMS: “MM OK”.

Authorization
- Please set authorization number before using, it has 2 numbers can be set.
- Send SMS “##BD#1#000000#number#” to set up first authorized number; send SMS “##BD#2#000000#number#” to set up second authorized number device will reply “BD OK”.
- Single Locating
- Send SMS“123” (LBS mode), it will reply address: around 118m, jianhui rd, bao’an district, Shenzhen, China.

Voice Surveillance
- Dialing device number, device will get though and enter into voice listening mode.
- Geo-fence
- Set up: When the unit stays immobile in a place, send SMS “kwl”, device will reply “KWL OK”. In case of breach, it will send SMS “Geo-fence alert” to the authorized number.
- Cancel: Send SMS “gwl” to deactivate this function, it will reply “GWL OK”.
- SOS alarm
- Press the SOS for 3 seconds, it will send “SOS Alarm” to the authorized number.
- GPRS setting
- User must send SMS via cell phone to set IP, port and APN before starting GPRS.
- Setting APN
- APN standards for Access Point Name and differs from country to country. For more information about the local APN, inquiry from your local GPRS network operator.
- Send SMS “#apn#password#APN content#APN user name#APN password#”, device will reply - “APN OK”.
- E.g. send SMS command “#apn#123456#cmnet#”.
- Notes: CMNET is the APN content of China Mobile (it has no APN user name and password).
- IP and Port setting
- Send SMS “#IP#ip address#port number#”. If succeeded, device will reply SMS “IP OK”
- Note: “IP” in SMS must be capital letter.
- Check device setting
- Send SMS “cx” to device, it device will reply as below:
- Device restart
- Send SMS “SBCQ” to device, it device will reply “ RESTART OK”.

Package:
- 1*TK105 GPS Tracker
- 1*USB Cable
- 1*Charger
- 1*User Manual
