GPSDO Discipline Oscillator GNSS GPS Disciplined Clock GPS + BD Dual Mode 10MHz Output Ordinary OCXO
Features:
-Built-in 10MHz SC cut OCXO.
-Optimized digital phase-locked loop algorithm and hardware circuit.
-Small size and high performance, ADEV <5e-12; 1s-1000s, ADEV <2e-11; >1000s, ADEV <2e-12.
-1PPS timepulse output synchronized to GNSS.
-10MHz clock output (sine-wave and square-wave optional).
-5V power supply, start-up power consumption is less than 4W, steady-state power consumption/less than 2W@25C.
-USB communication port, the required GNSS receiver NMEA message can be configured via USB.
-GPS/Beidou dual mode GNSS receiver, more satellites can be received at the same time.
Front Panel:
-PWR: power indicator, will be on when powering
-TRACK: GNSS tracking indicator. When flashing, it means tracking GNSS to correct OCXO frequency offset
-GNSS: satellite navigation receiver indicator, when it is on, means the receiver is working normally
-COM: communication indicator, flashing when there is data transmission
-USB: Micro USB port
-5V DC: 5~5.5V/1A power supply input
Rear Panel:
GNSS antenna port + 10MHz clock output + 1PPS timepulse output

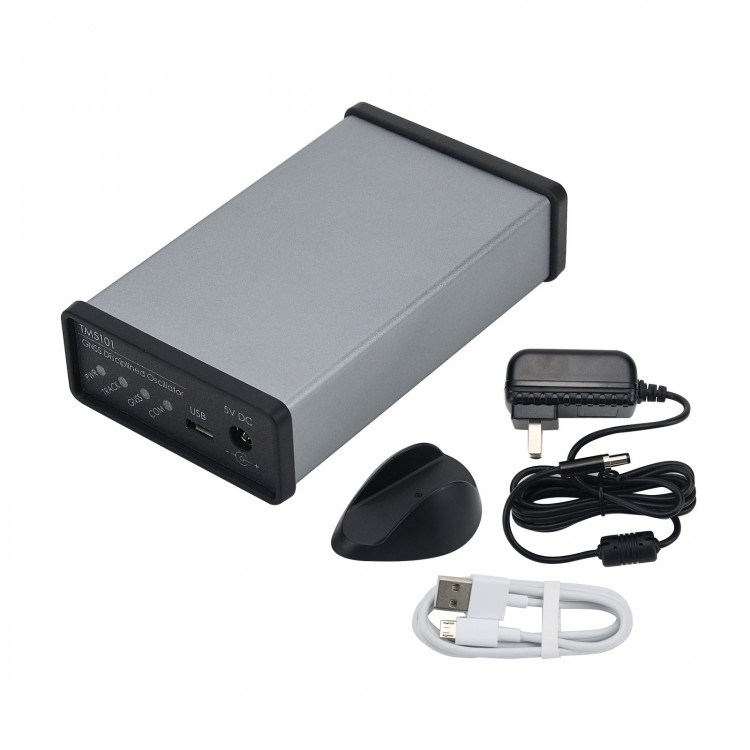

Package List:
-1 x GNSS Disciplined Oscillator
-1 x Power Adapter
-1 x USB Cable
-1 x GPS/BD Dual Mode Antenna
