Description:
- GPSDO (Global Positioning System Disciplined Oscillator), also known as GPS taming constant temperature crystal oscillator, GPS taming clock, and 10MHz standard signal source. Compared to ordinary time bases, it has higher accuracy, lower temperature drift, and more stable output.
- It uses the 1PPS signal of GPS, and after comparison with the microcontroller, the microcontroller outputs 16Bit PWM to control the output accuracy of the constant temperature crystal. The frequency adjustment voltage of the constant temperature crystal is 0-5V, so 1Bit PWM can control the output voltage to 0.000076V.
- The overall length, width, and height of the machine are 150 x 88 x 38mm (excluding protrusions).

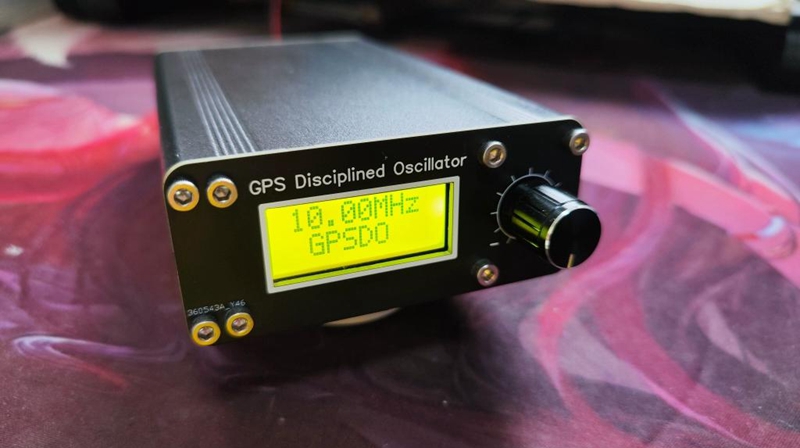

- The front panel has a display screen and encoder, while the rear panel has 10MHz output interface, 1PPS output interface, GPS antenna interface, power switch, and 12V DC power interface.
- GPSDO is suitable for high-end audio decoders, instruments, meters, frequency meters, signal sources, and other devices with an external 10MHz reference source input.

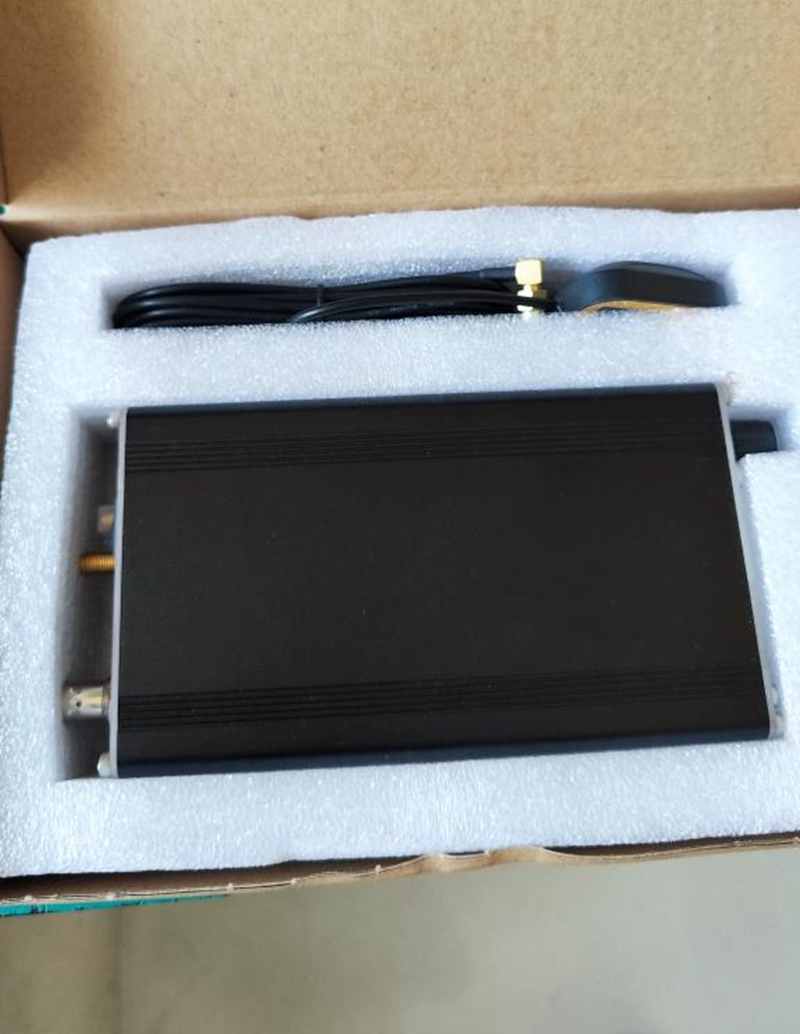

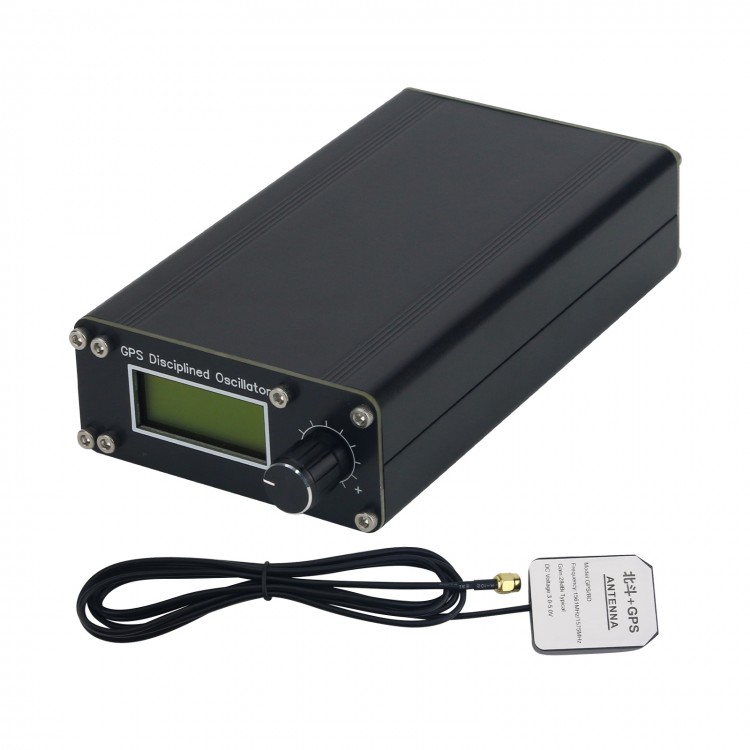

Package Included:
- 1 x Host
- 1 x GPS Antenna
