Description:
Satellite time frequency standard source/NTP network time server can receive satellite timing signals for GPS, Beidou, GLONASS, GALILEO, QZSS to tame the internal OCXO (high stability constant temperature crystal oscillator), can provide UTC standard time and self-perfect monitoring, Highly stable 1PPS, IRIG-B, TOD, 10MHz, NTP and other primary clock synchronization signals. Using closed-loop control and punctuality technology, the system has self-learning function to obtain the aging drift of high-stability constant-temperature crystal oscillator, even if the satellite signal is interrupted or interference failure occurs, it can still output accurate time synchronization signals within a certain time to achieve high Punctuality of precision. This series of products has been tested by a large number of practical applications in the market, and is stable and reliable.

Features:
·Support for GPS, Beidou, GLONASS, GALILEO, QZSS
·1PPS synchronization accuracy can reach 15ns (1σ)
·When the satellite reference source is lost, it has a punctuality function
·With the function of antenna open circuit and short circuit detection
·NTP time synchronization accuracy 0.5-2ms
·NTP v2 (RFC 1119), v3 (RFC 1305) v4 (RFC 5905)
·SNTP v3(RFC 1769), v4(RFC 2030)
·Support MD5 information verification
·Support SERVER and BROADCAST working mode
·Support DC IRIG-B (without AC IRIG-B)
·Rich interfaces
·Software is provided free of charge. Simple interface and easy to use
·Status view: Host computer software can query and control the device through the monitoring serial port or network TCP protocol, and the device information status is clear at a glance

Technical Parameters:
Receiver Parameters:
- Supported Satellites: For GPS L1, Beidou B1, GLONASS L1, Galileo E1 & QZSS L1
- Horizontal Positioning Accuracy: <2.5 m CEP50 (autonomous)
- Vertical Positioning Accuracy: <5 m CEP50 (autonomous)
- First Positioning Time:
* Reacquisition: < 1s 50%
* Hot Start: < 1s 50%
* Warm Start: < 33s 50%
* Cold Start: < 35s 50%
- Sensitivity:
* Tracking: - 165 dBm
* Acquisition: -148 dBm
- Dynamic:
* Acceleration: 4g
* Speed: 515m/s

NTP Parameters:
- Interface: 10/100 Base-Tx
- Interface Standard: Compliance with IEEE-802.3u Standard
- Interface Rate: 10/100M Adaptive
- Interface Connector: RJ-45
- NTP LAN Timing Accuracy: 0.5-2ms
- Support Protocols: NTPv2, NTPv3, NTPv4 and SNTP
- MD5 Information Verification: Yes

1PPS:
- Interface Level: LVTTL &RS-422
- Pulse Width: 100ms
- Rising Edge: ≤15ns
- Jitter: ≤500ps
- Timing Accuracy: ≤15ns(1σ)
- 24-hour Accuracy of Punctuality (Test after disciplining OCXO 24 hours): ≤50μs (OCXO); ≤5μs (DOCXO)

IRIG-B:
- Interface Level: LVTTL &RS-422
- Signal Output Format: IRIG-B 000, supporting IEEE1344
- Punctual Edge: Rising edge
- Timing Accuracy: ≤15ns(1σ)

TOD:
- Interface Level: RS-422
- Message Format: ZDA (Can be customized)
- Baud Rate: 9600
- Accuracy: The message frame header is aligned with the leading edge of the second pulse (1PPS) with a deviation of less than 1μs

10MHz:
- Square Wave:
* Level: For HCMOS
* Load: 50Ω
- Sine Wave
* Amplitude: >7dBm
* Load: 50Ω
* Harmonic Suppression: -50dBc
* Clutter Suppression: -80dBc
* Frequency Accuracy: Better than 1.0E-12 (After taming 24 hours)
* Short-term Stability (T= 1S): Better than 1.0E-11 (Can be customized)
* Phase Noise: -110dBc/Hz@10Hz; -135dBc/Hz@100Hz; -145dBc/Hz@1KHz; -150dBc/Hz@10KHz (Can be customized)

Electrical Parameters:
- Working Voltage: DC 12V
- Operating Current: Power-on < 600mA; Steady State < 300mA
- GNSS Antenna Voltage: 5V
- Network Port Specifications: RJ45, 10/100Mbps, Cross-connection adaptive
- Encapsulation Way: RJ45
- Reliability Level: 2KV Electromagnetic Isolation
- Working Temperature: -40 to 85℃
- Storage Temperature: -45 to 105℃
- Working Humidity: 5% to 95% RH (No condensation)
- Storage Humidity: 5% to 95% RH (No condensation)

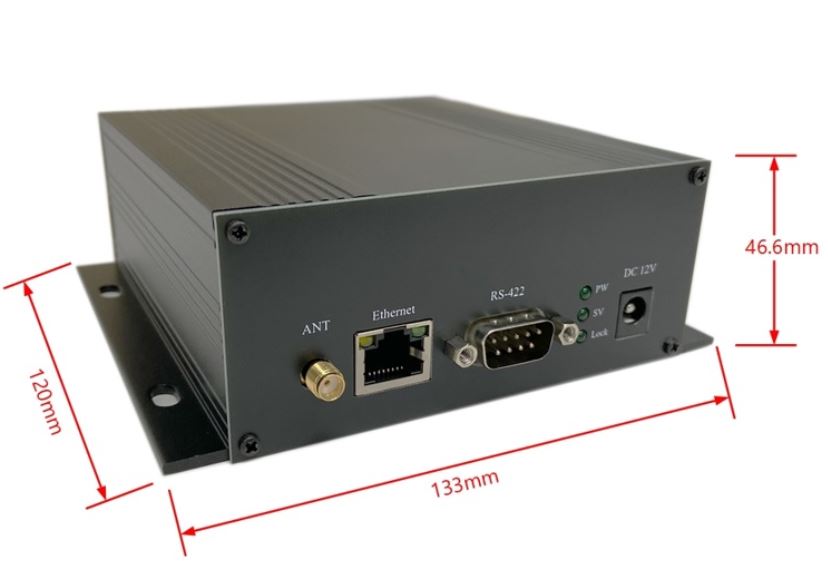

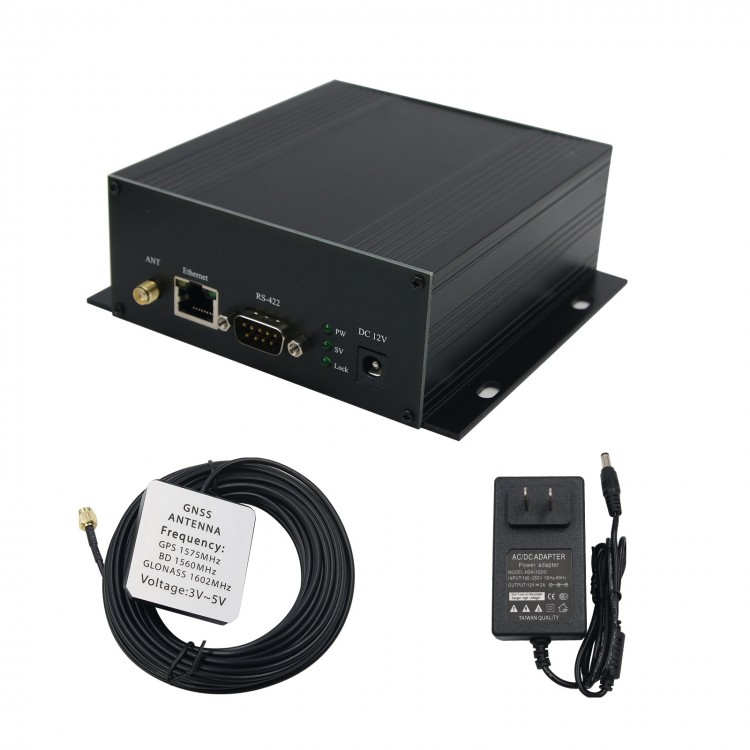

Package Included:
- 1 x 10M Antenna
- 1 x Main Unit
- 1 x 12V Power Adatper

Implementation Principle:
