GR22.5x34 Bellows Coupling 5mm-12mm Flexible Coupler for Servo Stepper Motor Encoder CNC

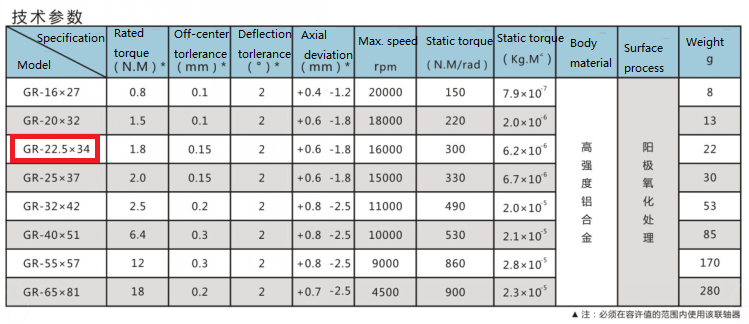

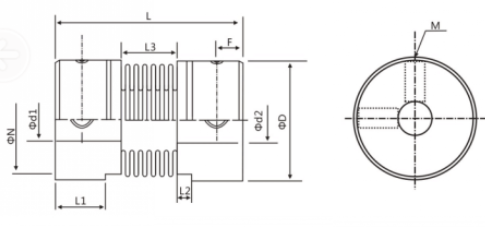

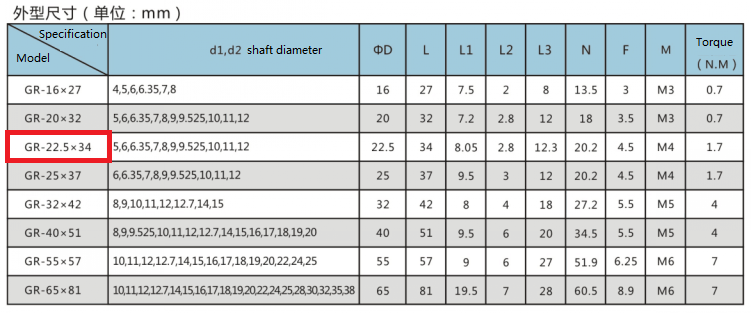

Specification:
- Model: GR 22.5x34
- Shaft coupler Often used to connect servo motor, stepper motor,
- For Encoder, screw driving, machine platform, etc
- Shaft: 5mm-12mm
- Length:34mm.
- Diameter:22.5mm.
- Material: Aluminium alloy
- Size:22.5x34 mm(D*H)
Features:
- Material: Aluminum alloy and the stainless steel for bellows,corrosion resistance
- Laser welding between the bellows and the sleeve
- Effective compensating radial, angular orientation and axial deviation
Packing Content:
- 1 x Bellows Coupling
