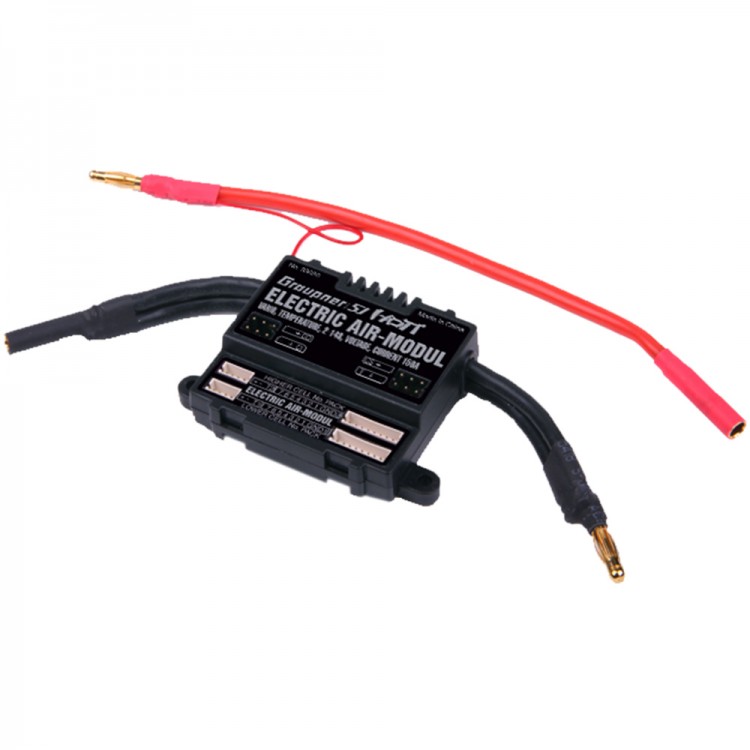

Graupner HoTT Electric Air Module 2-14S Vario Real-time Monitor for RC Model Multicopter
Overview
Graupner/SJ Electric Air module is used to monitor the real-time information on various useful data such as battery voltage, power consumption, motor RPM, flight altitude and fuel consumption. all function of Electric air module can be programmed with HoTT transmitter or Smart box. It is recommended to the user who uses a electric motor, but it could be used to Engine model as well
Features
- Vario with altitude signals and climb/drop signals
- Warning thresholds for minimum altitude, maximum altitude, climb/drop speed in two stages
- Altitude display (- 500 ... + 3000 m) and storage of minimum and maximum altitude
- 2x temperature and voltage measurements with warning thresholds for min/max voltage and min/max temperature
- Single cell measurement 2 ... 14S with warning threshold for minimum voltage
- Voltage, current, and capacity measurement with warning thresholds for min/max voltage, max capacity, max current
- Current limiting programmable
- Messurment of the current with shunt resistors 2x 0.2 mOhm (5 W) parallel = 0.1 mOhm
- Warning time can be set to: OFF, 5, 10, 15, 20, 25, 30 seconds, always
- Warning repeat time can be set to: always, 1, 2, 3, 4, 5 minutes, once
Specification:
- Operating voltage: 3.6~8.4V
- Dimension: 51*47*18mm
Package included:
- 1* Graupner electric air module
