Gravity UART OBLOQ IOT Module V1.0 ESP8266 Internet of Things Module

Gravity UART OBLOQ IOT Module V1.0 ESP8266 Internet of Things Module

http://wiki.dfrobot.com.cn/index.php?title=(SKU:_TEL0118)Gravity:_OBLOQ_-_IoT_Module_%E7%89%A9%E8%81%94%E7%BD%91%E6%A8%A1%E5%9D%97

EASY IOT link

Azure IOT link

Sample code link (Github)

Internet of things user manual

Product Description:

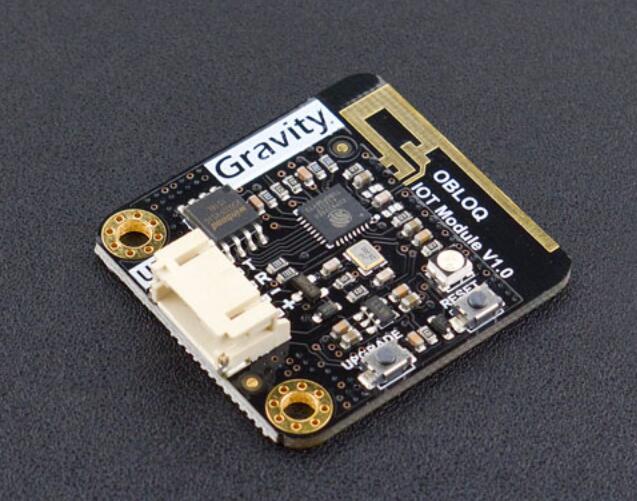

- OBLOQ is a ESP8266 serial port to Wifi internet of things module,to transmit and receive information for internet of things.
Small size,low price,simple interface,plug and play,for 3.3V~5V control system.

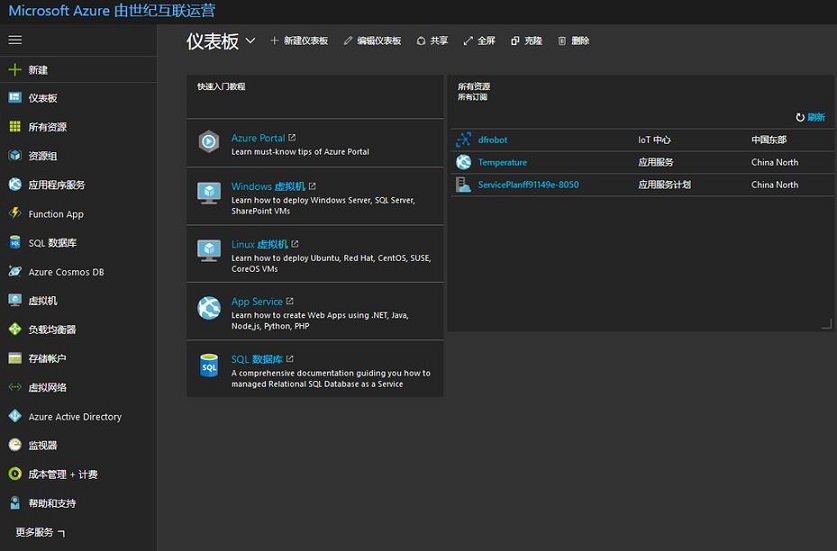

- OBLOQ can also connects Microsoft Azure IOT and other standard MQTT protocol IOT.

New users freely register of 10 devices
Convenient connecting
Multi-platform support

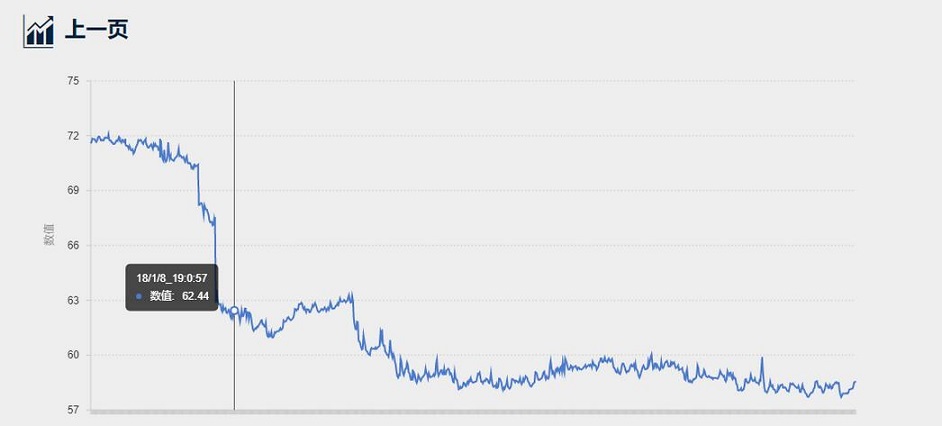

Real-time monitor data and analysis
Plentiful examples and projects
Open the door of internet of things in 10 minutes

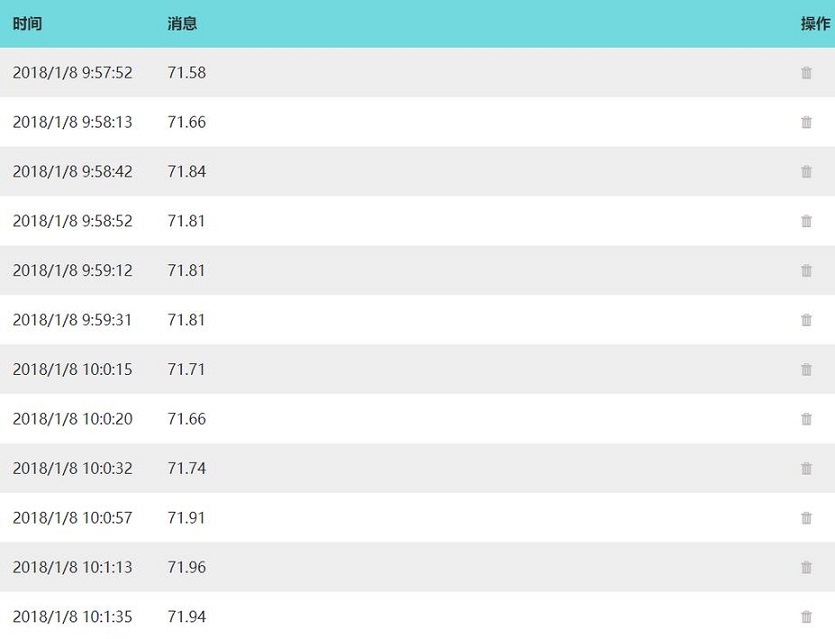

Send and check the message

Note: OBLOQ does not support 5G WiFi network,please use traditional 2.4GHz band.

Features:
- Built-in low power 32 bit CPU:It can be used as an application processor
- Built-in protocol stack:TCP/IP protocol stack
- Encryption type:WPA WPA2/WPA2–PSK
- Support connecting standard MQTT protocol and TTL serial port wireless application.

Technical parameter:
- Working voltage:3.3-5V
- Interface rate:9600
- Wireless frequency:2.4GHz
- Interface type:Gravity UART 4PIN
- Wireless mode:IEEE802.11b/g/n
- SRAM:160KB
- External flash:4MB
- Support low power consumption:<240mA

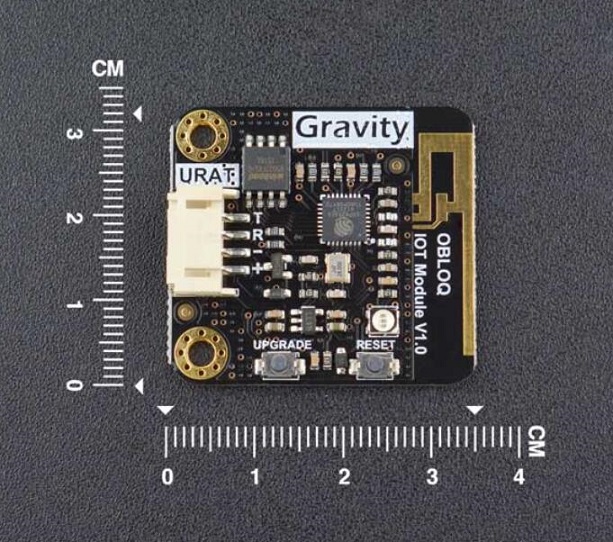

- Size::35mmX32mm/1.38inchX1.26inch
- Weight:16g

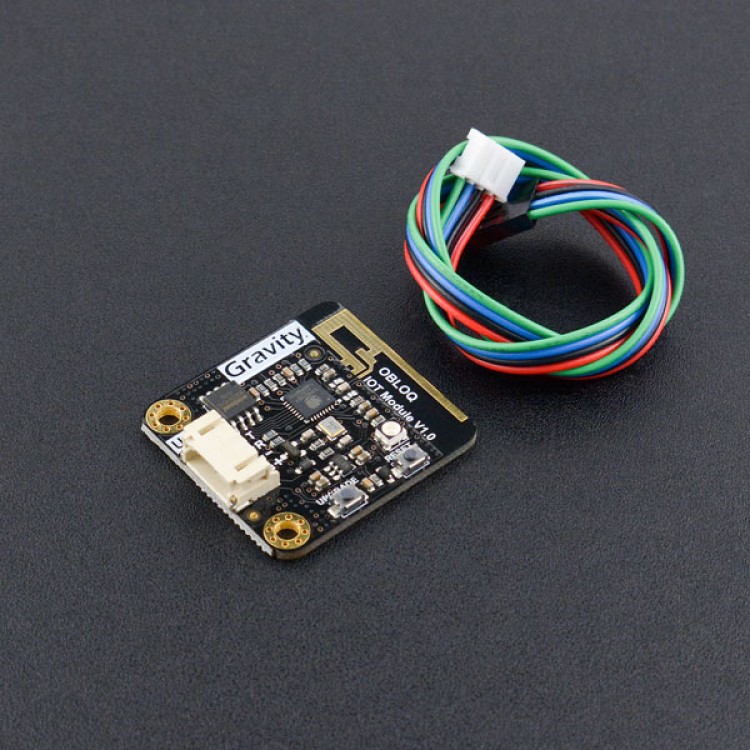

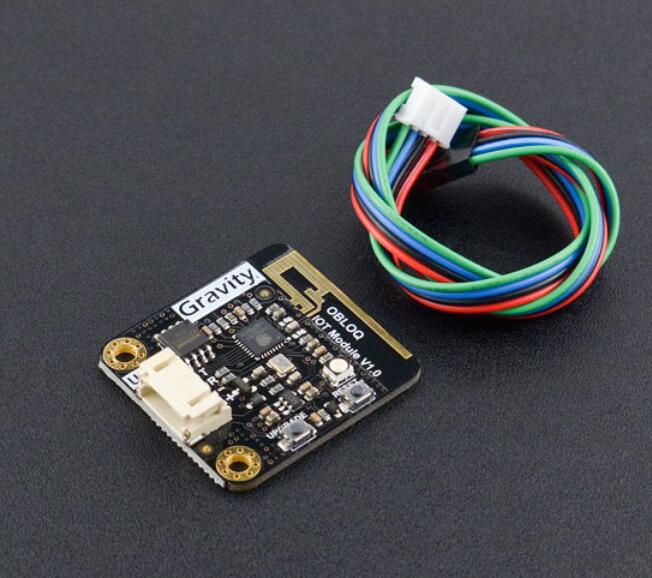

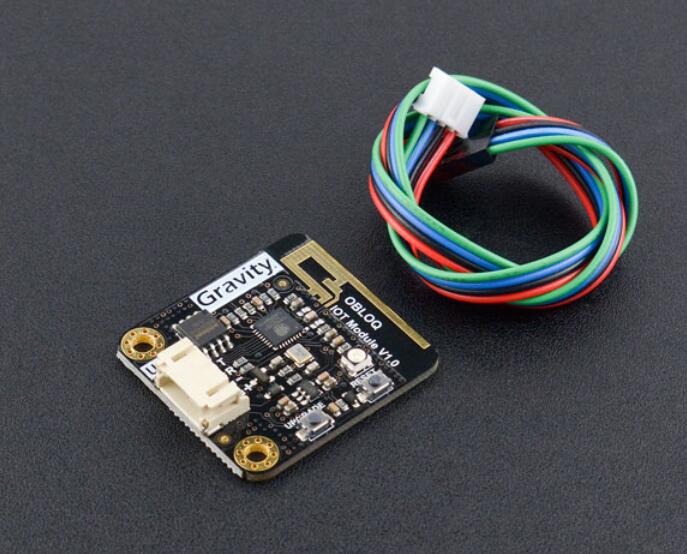

Package List:
- 1 x Gravity: UART OBLOQ - IOT internet of things Module
- 1 x Gravity: 4Pin Sensor cable
