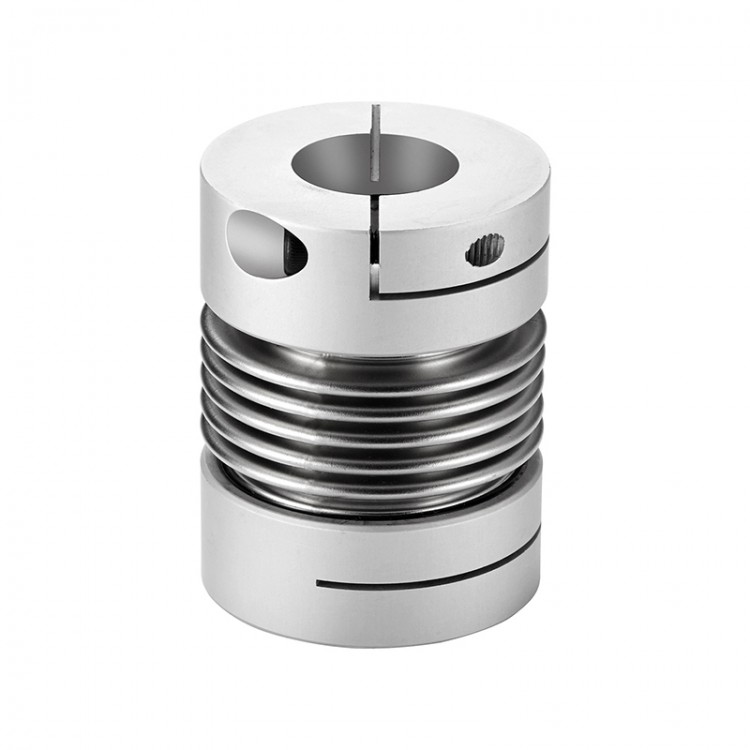

GRC55x72 Bellows Coupling 10mm-25mm Flexible Coupler for Servo Step Motor Encoder CNC
Features:
- High strength aluminum alloy material
- Elastic effect compensating radial,angle, axial deviation
- Spring design with buffering
- For encoder and micro motor

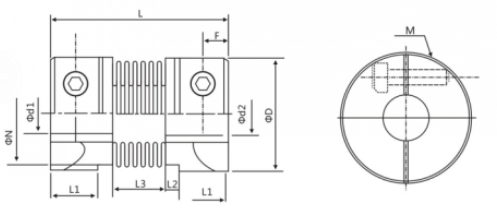

Specification:
- Model: GRC-55x72
- For d1,d2 shaft diameter (mm):10,11,12,12.7,14,15,16,17,18,19,20
- D: 55mm
- L: 72 MM
- L1:16.5mm
- L2:6mm
- L3: 27mm
- N: 51.9mm
- F: 10mm
- M: M6
- Torque: 12N.M
Tech parameter:
- Rated torque: 12N.M
- Radial deviation torlerance: 0.2mm
- Deflection torlerance: 2degree
- Axial deviation torlerance: +0.7mm -2.5mm
- Maximum speed:3900rpm
- Static torque: 860N.M/rad
- Inertia torque:3.7x10-5kg/m2
- Sleeve material: Aluminum alloy
- Surface process: Anodic oxidation treatment
- Weight: 200g
Packing Content:
- 1 x Coupling
