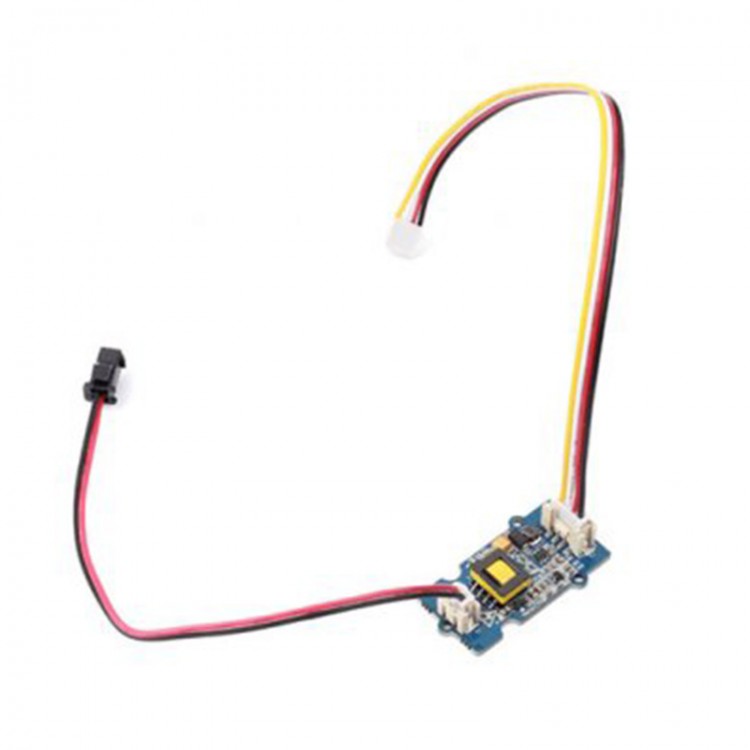

Grove-EL Mini DC3V-5V 300mA 20kHz Driver Module Integrated Inverter Transformer for Driving EL Wires
Description:
Grove - EL Driver is designed for driving EL Wires.It integrates a very small inverter to drive the EL Wire, so you can easily light up the EL Wire with just one single Grove cable.
Features:
- Grove compatible interface
- 3.3V/5V Compatible
- Integrated Inverter Transformer
Specification:
- Input Current: 300mA Max (According to the load)
- Input Voltage 3~5Vdc
- Output Voltage:70~110Vpp
- Output frequency: 8~20kHz
- Supported max EL Capacitance: 15nF
More information: click here
Package included:
- 1 x Grove-EL Driver
