GSM 1800 LTE 1800mhz 70dB Intelligent Control Mobile Repeater Phone Cell Phone Signal Booster Amplifier Extender

GSM 1800 LTE 1800mhz 70dB Intelligent Control Mobile Phone Signal Booster

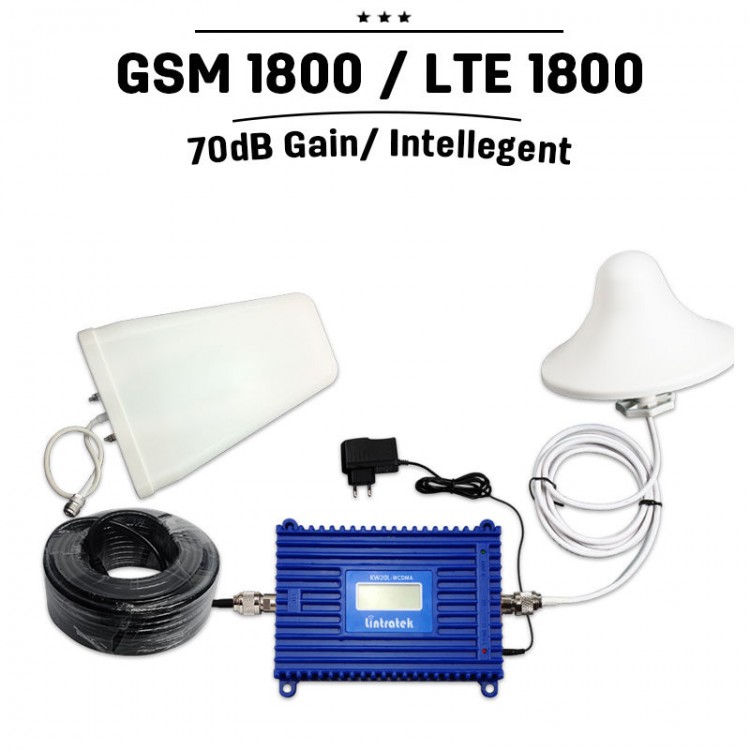

Product Including and Details:

log periodic antenna with 0.3 meters cable
Indoor ceiling Antenna with 2 meters cable

15 meters cable for connecting outdoor antenna and booster (N Male Connector)
Product Description:
- Model No.: KW20L-DCS
- LCD Display 20dBm GSM 1800 Mobile Signal Repeater DCS Cell Phone Signal Booster ALC GSM 1800MHZ Cellular Amplifier +Antenna
This repeater is suitable for GSM 1800 and 4G LTE 1800 in Europe, Brazil, ect.

Selling Point:
- New model from Lintratek
- Coverage: cover about 500-800sqm without barriers
- DCS 1800 repeater
- Great cover,70dB high Gain
- Easy to install.
- LCD Display.
- Self-oscillates alarm light :When this light is on, it means that you need to the outdoor antenna more far away from the indoor antenna to avoid self oscillates.
- AC Power Cord: defaulted EU plug,if you need American standard or some others please contact us before order.
- 1 Year Warranty.

Parameter Sheet:
- Device can work perfectly in condition of Outdoor signal strength more than-85db or -80db
- Working System: GSM 1800
- Frequency Range: Uplink:1710~1785mhz Downlink:1805~1880mhz
- Gain: 70db
- Output power: 20dbm
- Bandwidth: 75M
- Ripple in band: less than 5db
- VSWR: less than 3db
- MTBF: more than 50000 hours
- Power Supply: AC:100-240V DC:5V 2A
- Inpedance: 50 ohm
- RF connector: N female
- Size: 200*110*25cm
- Weight: 0.85KG
- Environment Conditions: IP40
- Feature: AGC Function ≥20dB

Product Including and Details:
- log periodic antenna with 0.3 meters cable
- Indoor ceiling Antenna with 2 meters cable
- 15 meters cable for connecting outdoor antenna and booster (N Male Connector)

Installation Approaches:
- Fix up outdoor antenna(log period antenna) on the housetop and point to signal tower.
- Connect  outdoor antenna to "BTS" in repeater via cable.(Notice:the machine must be away from outdoor antenna for  more than 10 meters)
- Connect indoor antenna(ceiling antenna)  to"MS" in repeater via cable(the machine must be away from indoor antenna for more than 1 meters)
- Plug the power adaptor,power light will be lighting ,when the outdoor antenna receive the strong signal the LCD will be display the signal
Please note that,when you find signal twinkling and have no full signal display  that means have no signal input and you need to check your outdoor antenna position.

Working principle:
- Outdoor antenna received the signal from signal tower.
- Then,through cable sent the signal to the indoor repeater.
- The repeater accepts  and improvs the signal.
- After that,the fine signal goes into indoor antenna,via cable to  your mobile phone.

Note:Before you buy this repeater , please make sure 1800mhz signal is match with your phone .
If you don't know about it , please make a phone call to your operator . Thank you .

Packaging Included:
- 1 x GSM 1800mhz Booster
- 1 x AC Power Cord
- 1 x Outdoor antenna
- 1 x Indoor antenna
- 1 x 10 meter cable
