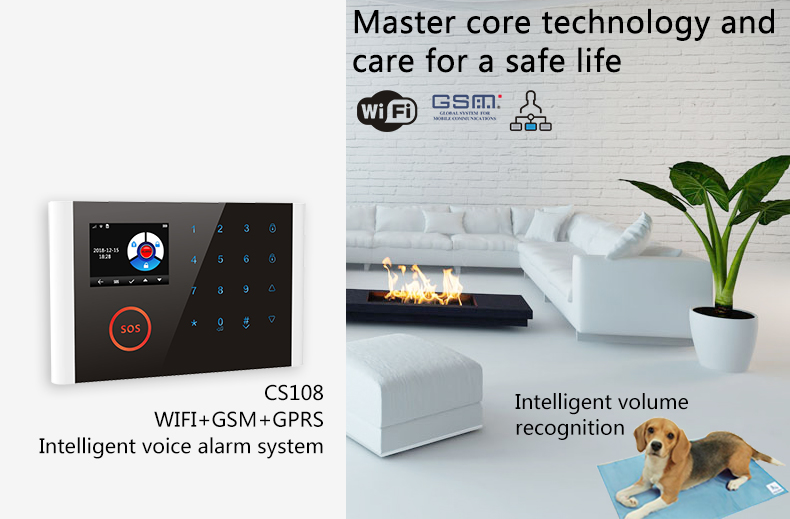

GSM Alarm Kit Home Alarm System Wifi+GSM+GPRS Home Security System Kit CS108 Package 2

GSM Alarm Kit Home Alarm System Wifi+GSM+GPRS Home Security System Kit CS108 Package 2

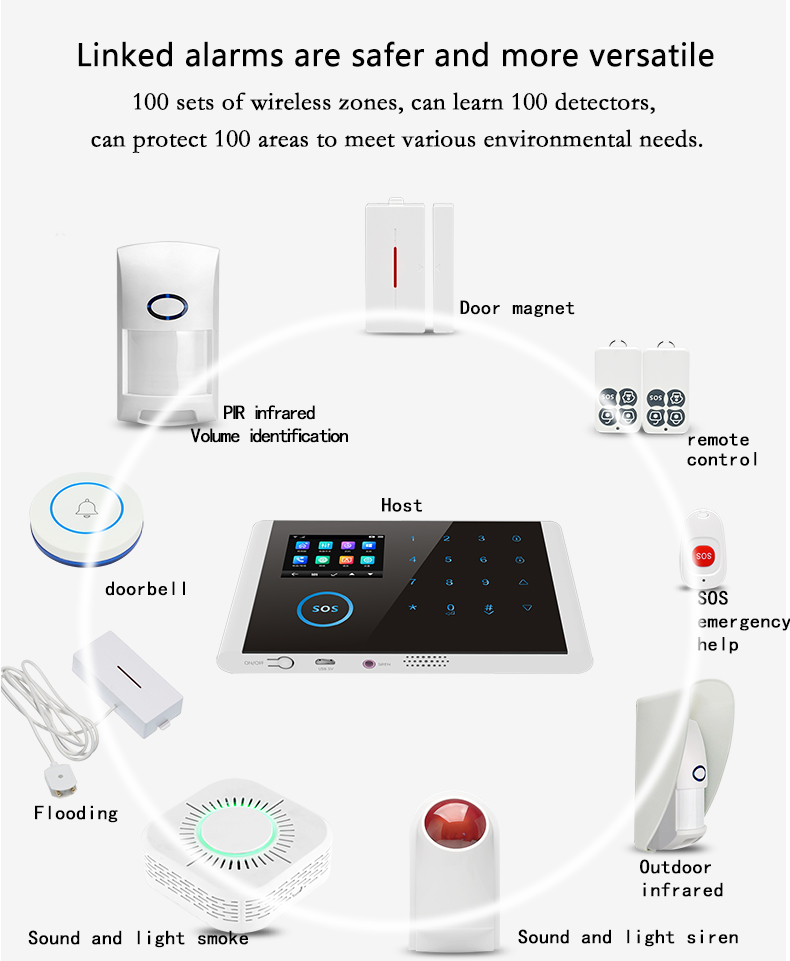

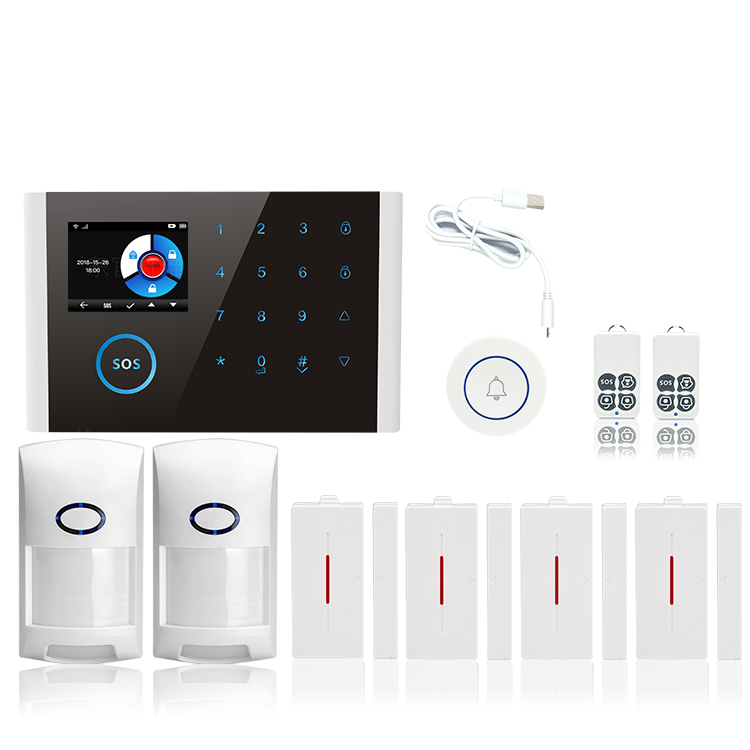

Package Included:
- 1 x Alarm Host
- 1 x User Manual
- 1 x Wireless Doorbell
- 4 x Sets of Wireless Door Sensors
- 2 x Wireless PIR Motion Sensors
- 2 x Wireless Remote Controls
- 1 x USB Cable

Alarm Host:
Features:

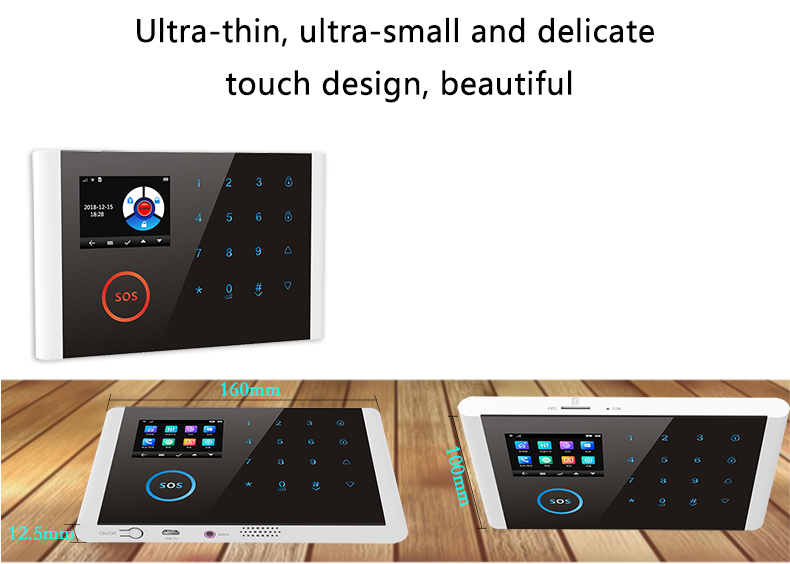

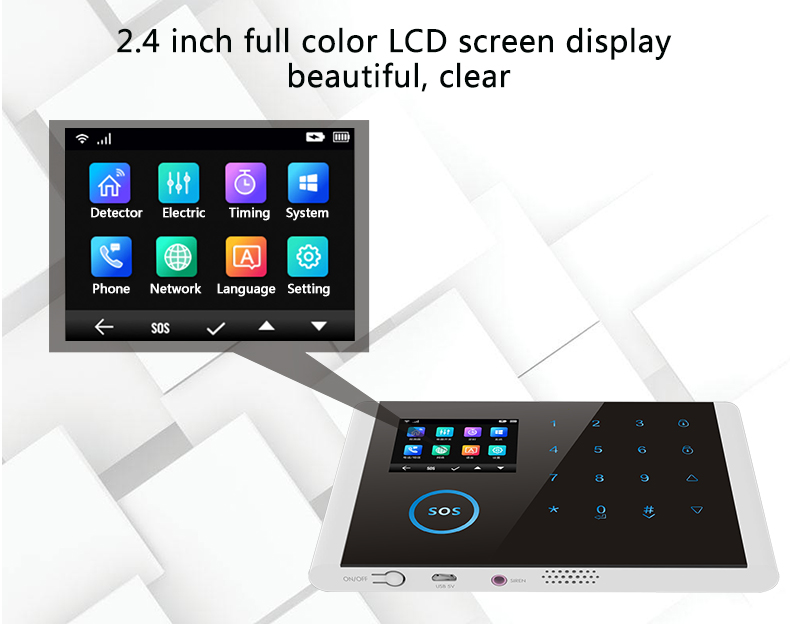

- 2.4-Inch TFT full color display screen with touch panel
- Easy to install with no wiring required
- With voice prompts and a color display screen, it is easy to operate

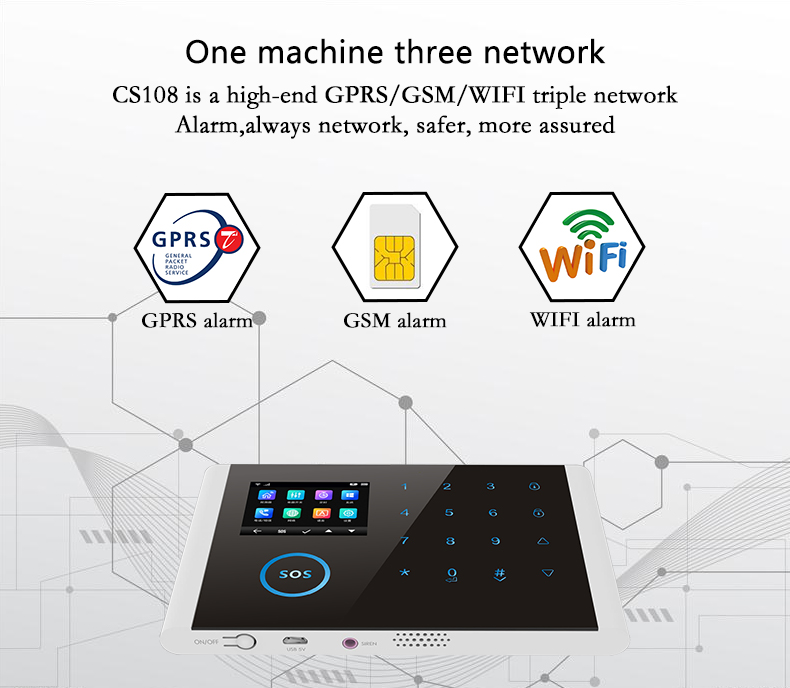

- WIFI + GSM + GPRS alarm system
- 3 In 1: It can be used as a doorbell, a telephone, and an alarm system
- SOS button to save your life; Duress code helps you to call the police secretly when in emergency

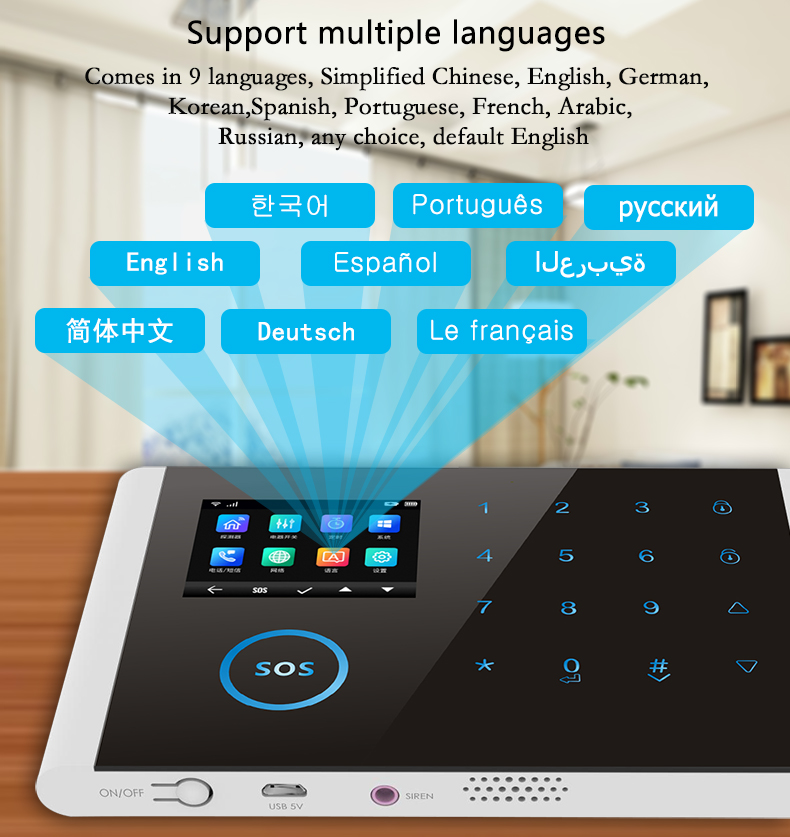

- Support 9 Languages: Chinese, English, German, Korean, Spanish, Portuguese, French, Arabic, Russian
- Pet-Friendly Volume Recognition: It can efficiently prevent your pet under 25kg from causing a false alarm
- Support multiple alarm channels, including APP alarm push, phone calls, and SMS

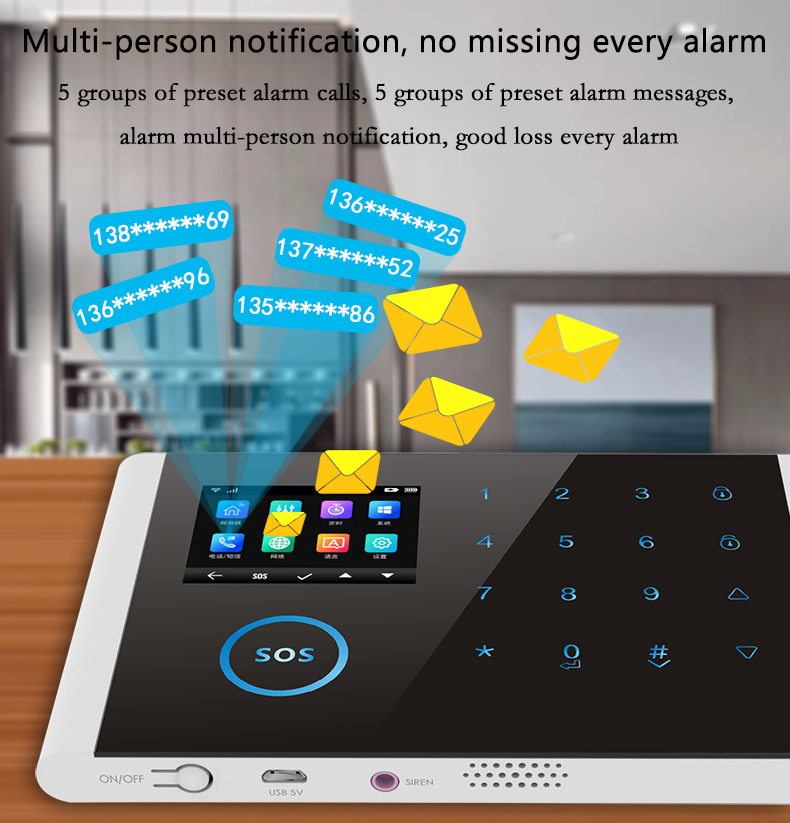

- Preset 5 groups of auto-dial phone numbers and SMS; Each group number can set SMS on/off and dial on/off respectively
- One-button operation to add wireless sensors
- Edit the names and the numbers of various zones such as doors, lobby, bedrooms,balcony, windows, smoke detectors, gas detectors, doorbells, PIR sensors, and door sensors
- Set multiple zones including access zones, internal zones, perimeter zones, doorbell zones, and 24-hour zones

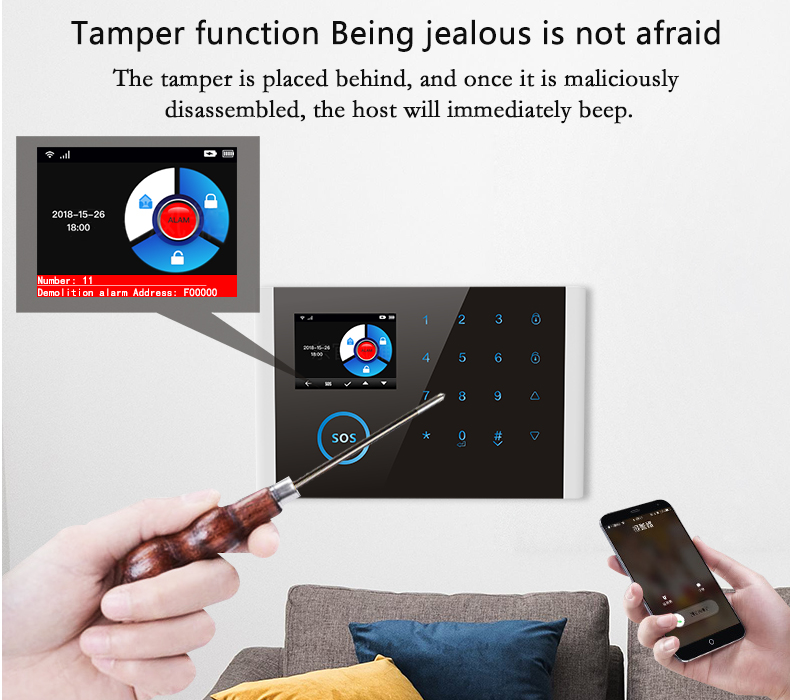

-  Support multiple extended alarm displays and alarms such as main power failure, backup battery defects, and anti-prying alarms (battery is not included)

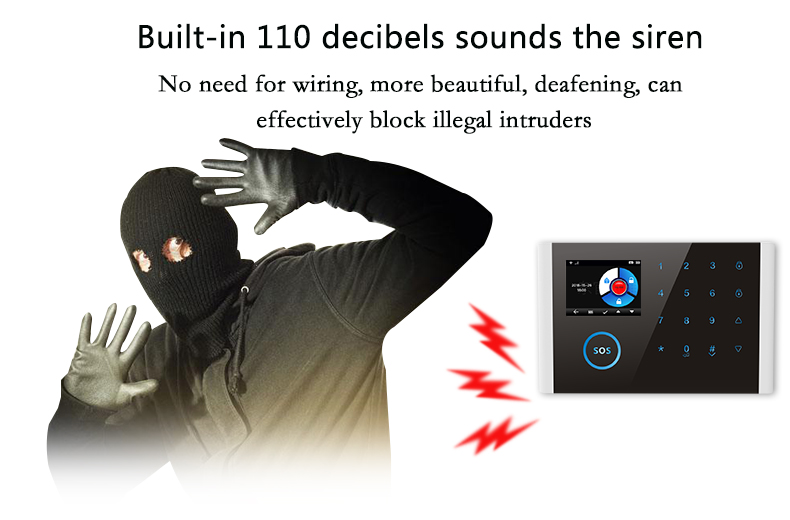

- Dual Speakers: A built-in speaker and an external siren
- Support the input of arbitrary zone numbers

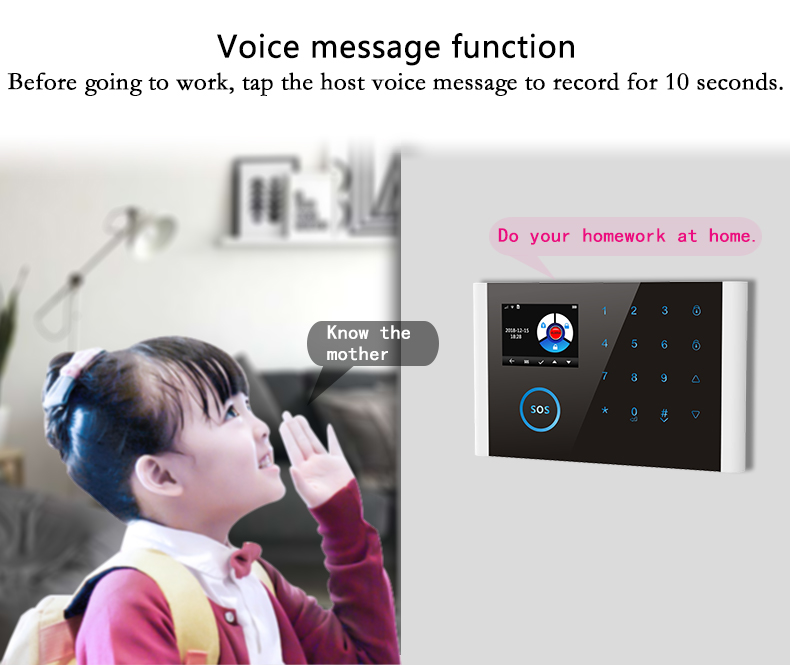

- Set arm/disarm time according to your routine time. You can leave a message before leaving

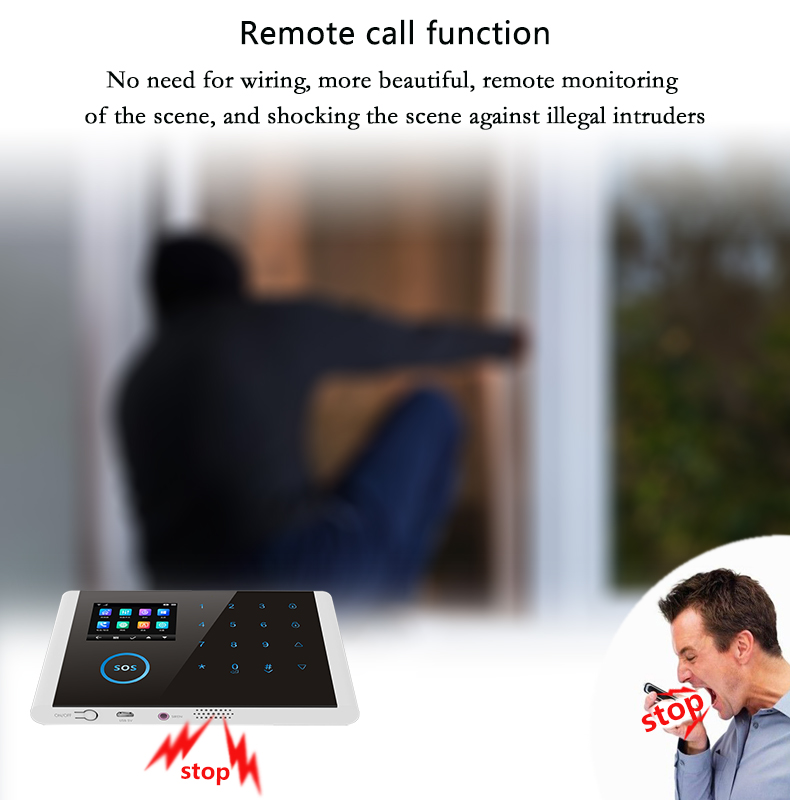

- Telephone Function: It enables two-way communication. You can talk with your family at any time. If an unexpected emergency happened to your family, you can answer the phone call from your family
- Support electrical switch linkage

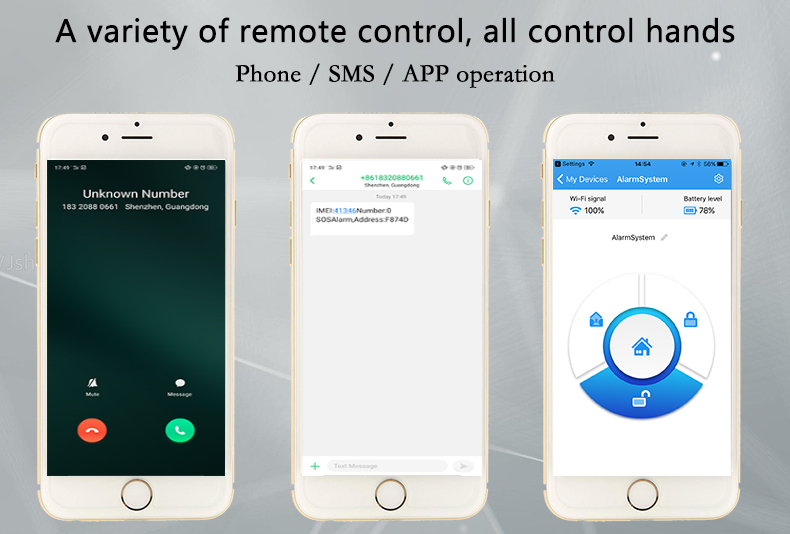

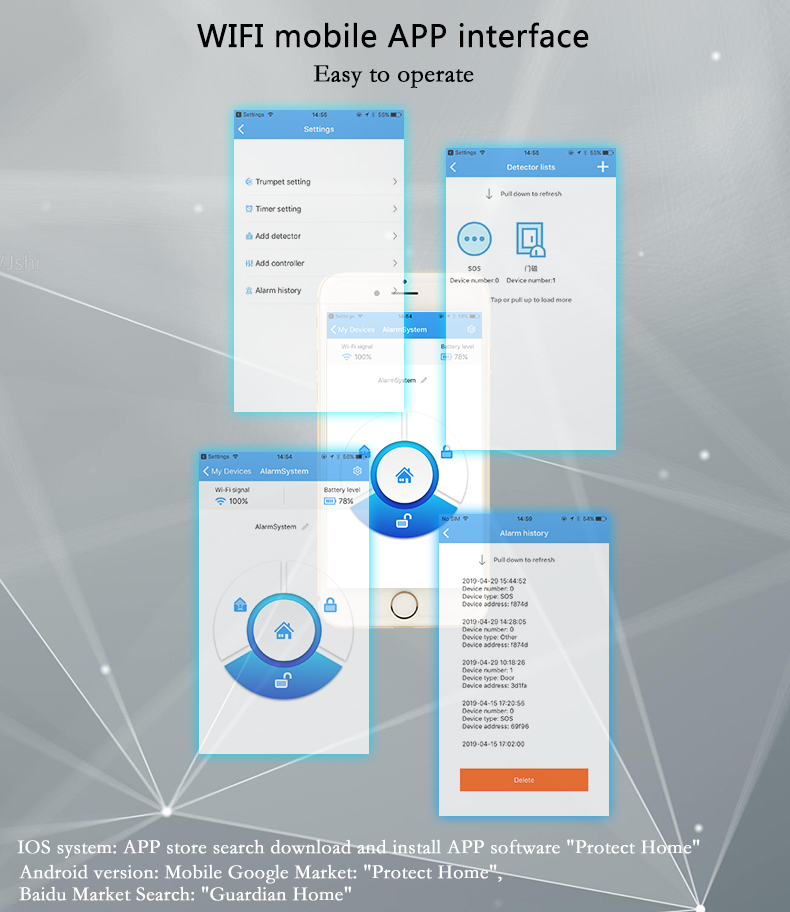

- Users can arm, disarm and get alarms from the host via APP
- Compatible with IOS Apply system and Android system to get alarm, arm, and disarm

Parameters:
- Power Supply: 110 to 230VAC (input); 5V / 1. 0A (output)
- Backup Power Supply: 3.7V/500mAh
- Standby Current: 80μA
- Alarm Current: ≤500mA
- GSM Communications System: 850/900/1800/1900mHz
- WIFI Standard: IEEE802.11b/g/n wireless standard
- Working Temperature: -10℃ to 60℃
- Working Humidity: ≤95%
- Wireless Frequency: 433MHMHz
- Siren: ≥110dB
- Transmission Outdoor Wireless Power: 10±14dB
- Alarm transmission: WIFI+GSM transport

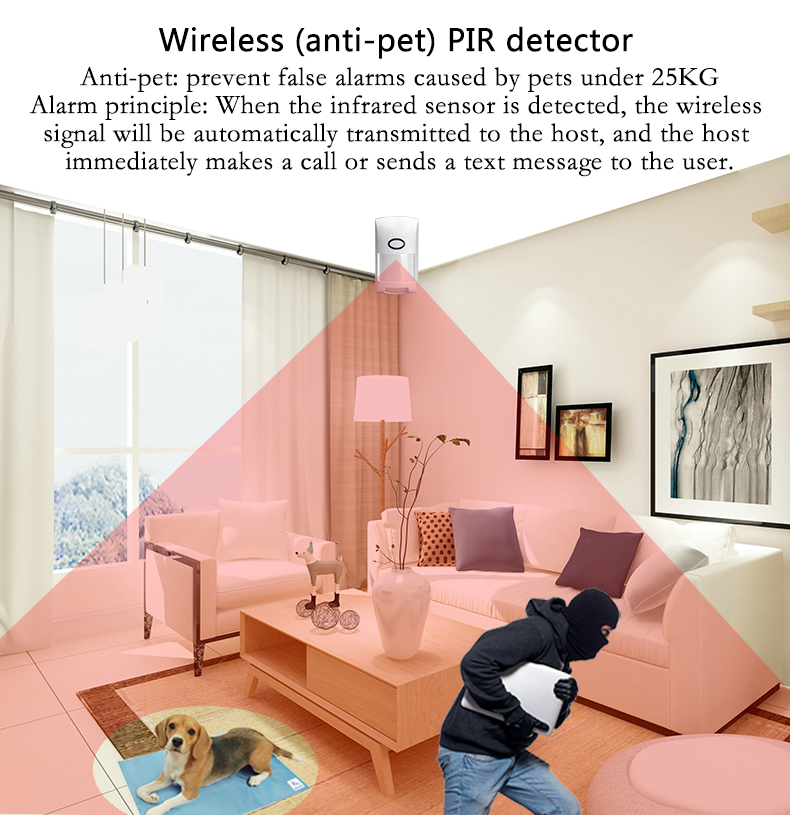

CT60M Wireless PIR Motion Sensor:
Features:
- Dual infrared + intelligent volume recognition + reflector glass + artificial intelligence quadruple technology.
- Intelligent identification technology, standby 9UA, and the lifespan of its power supply is up to 2 years. So there is no need to replace it frequently.
- Double lens, double temperature compensation technology.
- Reflector glass type detection technology helps effectively overcome the shortcomings of traditional detectors that do not alarm when there is sneaking person.
- Fresnel optical lens effectively prevents false alarms and failed alarms.
- Detection distance: 12m@25°C.
- Detection angle: 110°.
- Anti-white light intensity 10000Lux.
- Friendly to your pet under 25KG. If you are pet owner, we recommend you to use pet friendly PIR motion sensor to immunity your pet. It is because pets can even trigger a false alarm.

Specifications:
- Working Range: 200m (open space)
- Working Voltage: 3V (2 AA alkaline batteries are not included)
- Standby Current: ＜9μA
- Alarm Current: ＜10mA
- Wireless Frequency: 433.92MHZ (1527)
- Alarm Indicator: It is on for 3 seconds
- Working Environment: Indoors
- Anti-prying Switch: Normally Closed
- Transmission Way: Wireless Transmission
- Alarm Output: Alarm Report & Prying Resistant Report
- Installation Method: Hanging type with adjustable direction

CD100S Wireless Door Sensor:
Description:

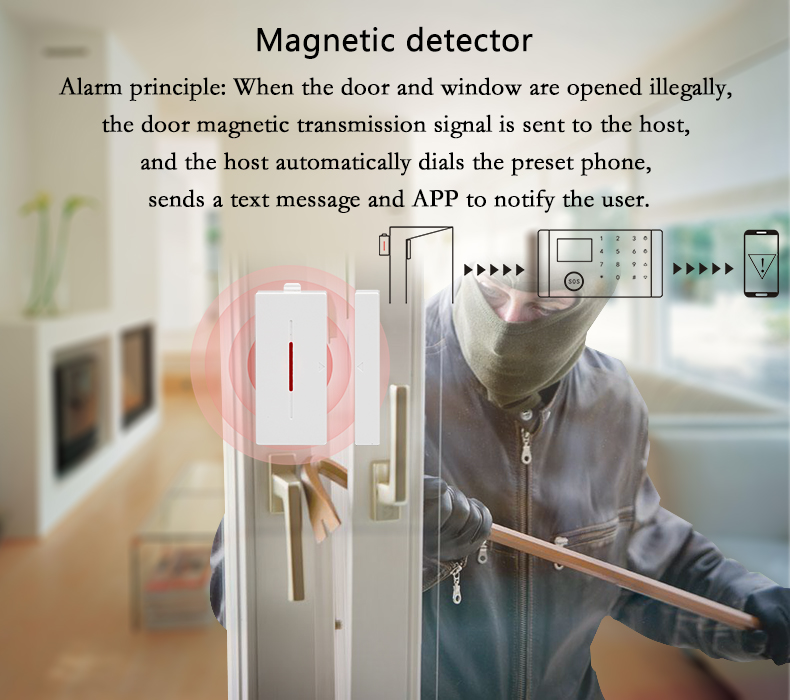

The wireless door magnetic detectors detect whether doors, windows, drawers, etc. Are illegally opened. They are mainly used in conjunction with the "alarm host". When the host is out of arming state, or when the door, window, is illegally opened, the wireless door magnetic detector sends an alarm. The signal is sent to the “alarm host”, the host will call the police. The wireless signal of the wireless door detector transmits 200-300 meters between the open space and the host.

Features:
- Ultra-low power gate magnetic special microprocessor, featuring longer duration time.
- Wireless transmission frequency 433.92.
- Built-in antenna design for beautiful and refined appearance.
- Quiescent current ≤ 1μA.

Specifications:
- Working Voltage: 12V (It can be powered by 23A battery. Battery is not included)
- Wireless Transmission Distance: ≥ 300 meters (open space)
- Transmission Frequency: 433.92MHZ
- Transmit Code Protocol: 1527 Protocol
- Static Current: ≤ 1μA
- Transmission Current: ≤ 10mA

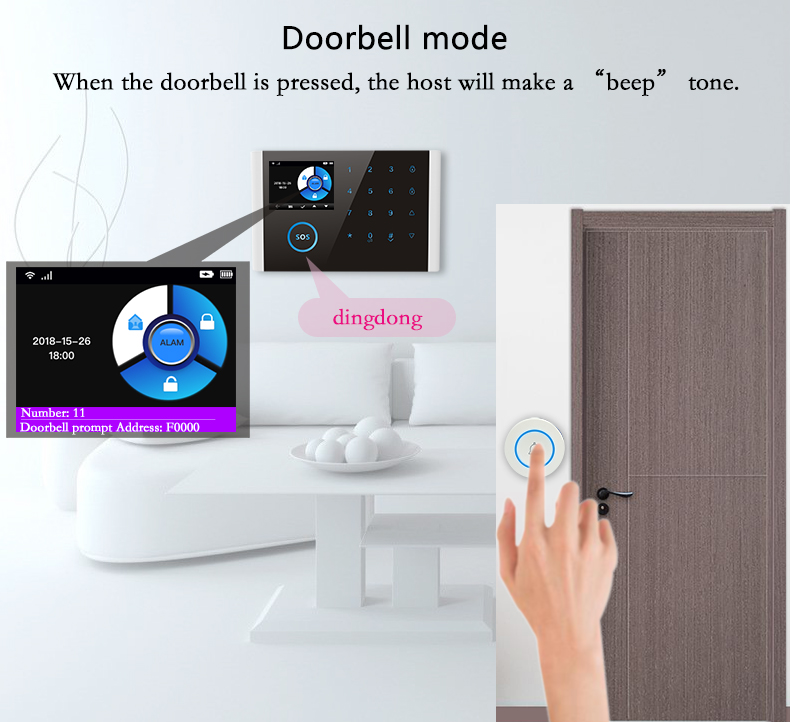

M6 Wireless Doorbell:
Features:
- Wireless working range: 50-80m
- Compact size and sleek appearance
- Its power supply lasts for 3 years

Parameters:
- Effective Control Range: 50-80m
- Transmission Frequency: 433.9MHz
- Working Voltage: 3V (CR2032).There is no need to replace it.
- Quiescent Current: 0
- Transmission Code Protocol: 1527 Protocol

RC22 Wireless 433 Remote Control:
Description:

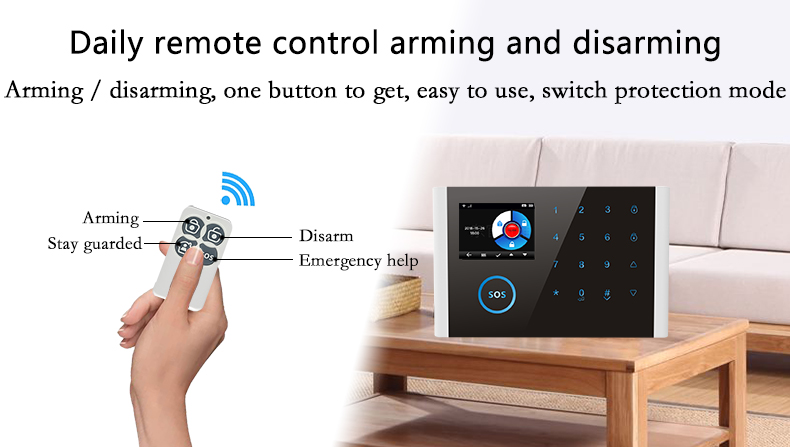

It is mainly used to control the host. You can get the host enter the armed state when you are going out. Press the host to unlock the state when you get home. You can make the host enter the home arming state when you are at home. Or press the SOS button in it to get the main unit to make a phone call when it is in emergency.

Features:
- Safe to use this waterproof, anti-pressure, anti-collision automatic control device.
- Compact size makes it easy to carry.
- It is designed with arming, disarming, fast bypass, and SOS buttons.
- The lifespan of its power supply is up to 3years. There is no need to replace it.

Specifications:
- Effective Range: 50-80m
- Working Frequency: 433.9MHz
- Working Voltage: 3V (CR2032)
- Quiescent Current: 0
- Transmit Code Protocol: 1527 Protocol
