Specification:
- TX:935Mhz-960Mhz
- RX:890Mhz-915Mhz
- Outpot power: TX 47dbm+-2dbm RX:5dbm+-2dbm
- ALC control:Input signal increase <10dbm at max output power,please close it when over 10db
- Gain:45+-3db
- Gain control range:>30db
- Gain control ans step error:<1db
- Ripple in band:<5.0db
- Frequency error:<0.01ppm
- Noise figure:<5.0db
- Oips:<45dbc
- Time delay:<0.5us
- Voltage:DC24-28V
- Current :50W at 10A，60W at 10A，70W at 15A，80W at 15A
Package included:

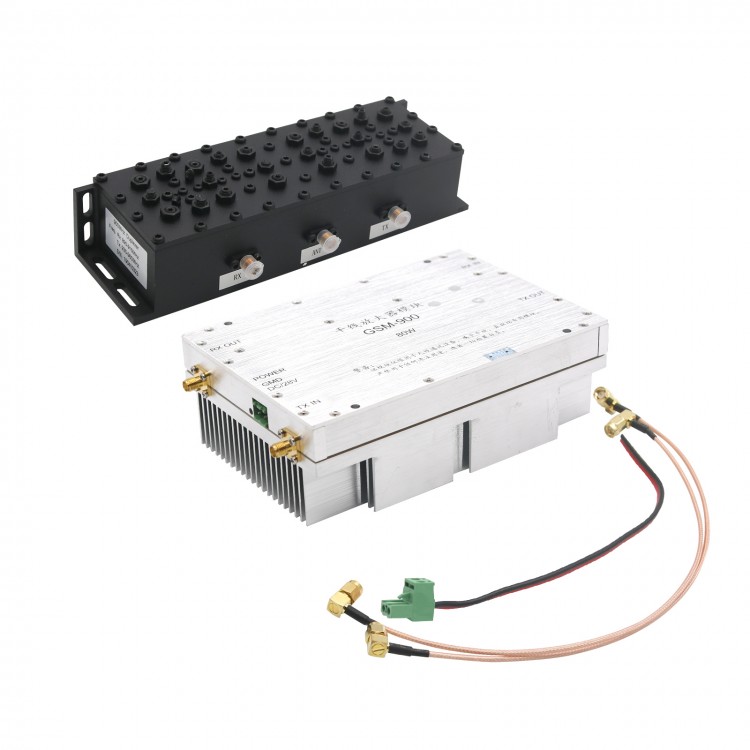

- 1 x Gsm9160 RF Power Amplifier
- 1 x Duplexer
- 1 x Feeder line
