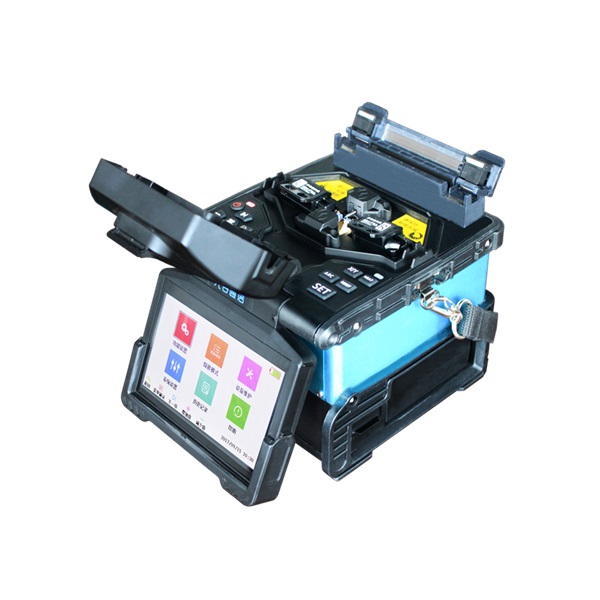

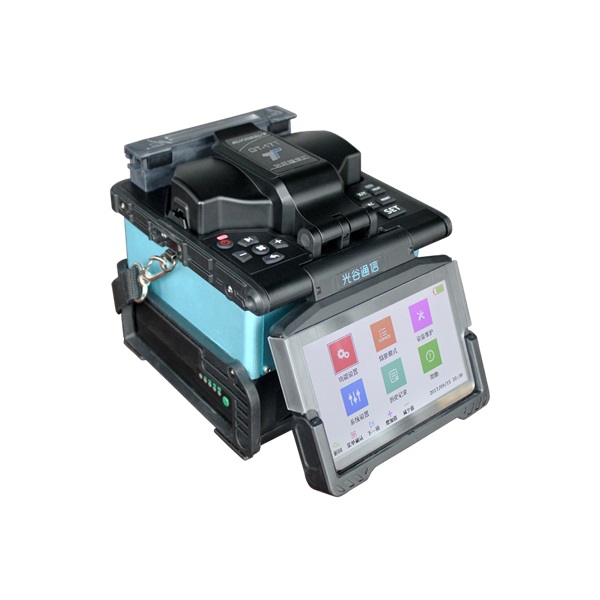

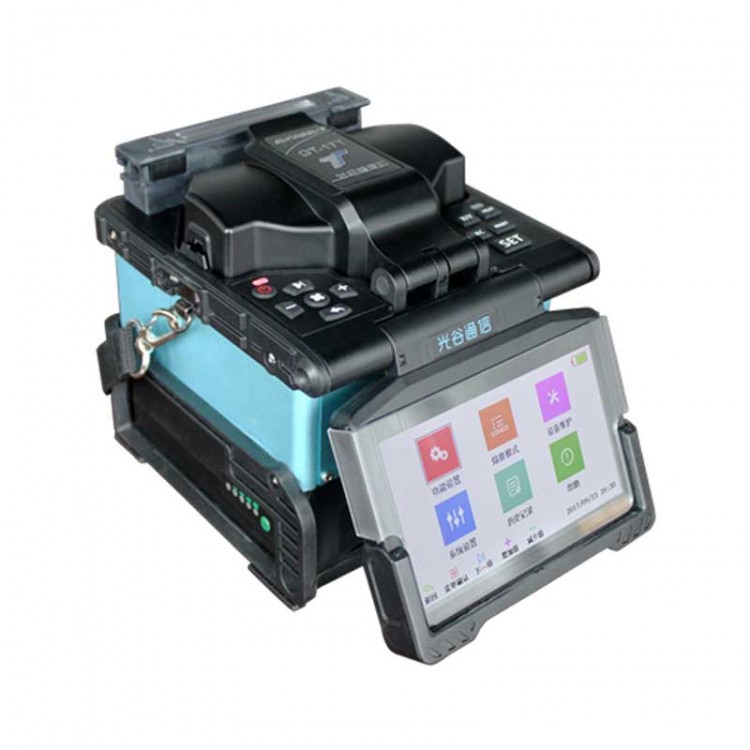

GT-17T Fusion Optic Splicer Fiber Welding Splicing Machine 4.3" LCD Screen

GT-17T Fusion Optic Splicer Fiber Welding Splicing Machine 4.3" LCD Screen

Product Description:
- GT-17T is a optic fusion splicer.4.3" color LCD screen,dual LED light.
- 7s fast fusion splicing,12s highly efficient heating.
- Intelligent battery capacity indication & low voltage auto switch off
- Can storage 10000 groups splicing record,10 groups splicing image,7800mAH li-on battery,can finish 300 times fusion heating.

Specification:
- For optical fiber type:SM,MM,DS,NZDS
- Typical splicing loss:
- SM:0.02dB,MM:0.01dB,DS:0.04dB,NZDS:0.04dB,
- Return loss:>60dB
- Operation mode:full auto,half auto
- Splicing time:9s
- Heating time:14s
- Optical fiber alignment:fiber core alignment;cladding alignment
- Optical fiber diameter:cladding diameter:80~150μm;coating diameter:100~1000μm
- Fiber cleaved length:8~16MM(Covered fiber diameter<250μm);16mm(Covered fiber diameter 250~1000μm)
- Magnification:X,Y axis independent display,360 times X-axis magnification; X,Y simultaneously display,180 times magnification.
- Monitor:4.3 inch 480x274 screen
- Tensile test:standard 2N
- Heat shrinkable tube length:60mm,40mm,20mm and a series of heat shrinkable tube
- External interface:USB
- Battery life:3000 times
- Battery capacity:fusion 300 times,charge time:3 hours
- Power supply:AC adapter,AC 100-240V input;DC 12.6V/5.0A output.Built-in li-on battery:11.1V,7800mAH.
- Operating condition:temperature:10-50 degrees,humidity:95%RH(40 degrees,no condensation);altitude:0-5000m
- Size:140x145x155mm(LxWxH)
- Weight:2.0kg

Package List:
- 1 x Main engine
- 1 x Optical fiber cutter
- 1 x Hexagon spanner
- 1 x Charging adapter
- 1 x Braces
- 1 x Carry the box key
- 1 x Special line charging power supply adapter
- 1 x Rubber insulated wire clamp
- 1 x Wire stripping pliers
- 1 x Cooling rack
- 1 x Carry the box cutter platform support
- 1 x Hand screw
- 1 x Hot melt extractor
- 1 x Split heating groove
- 1 x Optical fiber composite fixture
- 1 x Electrode
