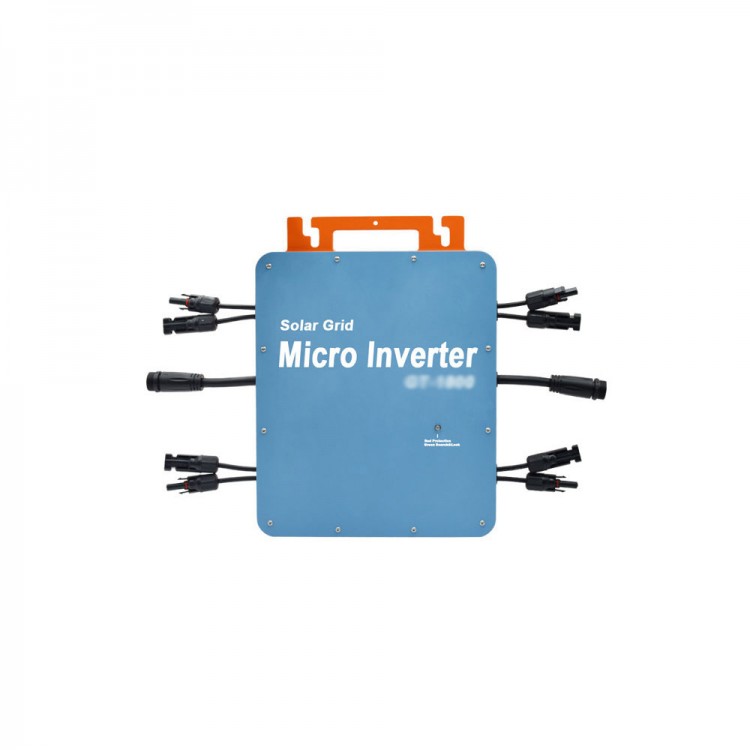

GT-2000 110V/230V 2000W Solar Grid Micro Inverter MPPT Intelligent WiFi Control IP66 Support Remote APP Upgrade

GT-2000 110V/230V 2000W Solar Grid Micro Inverter MPPT Intelligent WiFi Control IP66 Support Remote APP Upgrade

Description:
- A solar photovoltaic micro inverter is a device that converts direct current from a single solar cell module to alternating current.
- The DC power conversion of a micro inverter is achieved by alternating current from a single solar module. Each solar cell module is equipped with inverter and converter functions, and each component can independently convert current, so this is called a "micro inverter".
- Micro inverters can achieve maximum power point tracking (MPPT) at the component level, which has advantages over centralized inverters. This can optimize the output power of each module to maximize the overall output power.
- In addition, when combined with communication functions, it can also be used to monitor the status of various modules and detect faulty modules.
- Micro inverter technology proposes to integrate the inverter directly with a single photovoltaic module, and equip each photovoltaic module with a separate inverter module with AC/DC conversion function and maximum power point tracking function. The electrical energy generated by the photovoltaic module is directly converted into AC power for use by AC loads or transmitted to the grid.
- When one of the battery panels is not functioning properly, only that one will be affected. Other photovoltaic panels will operate at their optimal working conditions, resulting in higher overall system efficiency and greater power generation.

Features:
- Ultra thin waterproof streamlined appearance design, IP66 waterproof rating, built-in waterproof rubber ring, MC4 waterproof joint, stainless steel screws never rust.
- WiFi connection, remote APP control.
- High speed maximum power point tracking (MPPT).
- Global voltage/frequency adaptation.
- Smartphone APP monitoring system.
- IP66 waterproof rating.
- Forward type full bridge topology high-frequency modulation grid connected mode.
- Input completely isolated electricity for safer and more flexible use.
- Multiple parallel stacking devices.
- No installation or maintenance required.

Specification:
Input Data (DC, PV):
- Number of input MC4 connector: 4 sets
- MPPT voltage range: 22V - 48V
- Operation voltage range: 18V - 60V
- Maximum input voltage: 60V
- Startup voltage: 22V
- Maximum input power: 2000W
- Maximum input current: 16Ax4

Output Data (AC):
- Single-phase grid type: 120V & 230V
- Rated output power: 2000W
- Maximum output power: 2000W
- Nominal output current: 16.6A at 120VAC; 8.6A at 230VAC
- Nominal output voltage: 120VAC/230VAC
- Default output voltage range: 80V-160V at 120VAC; 180V-270V at 230VAC
- Nominal output frequency: 50Hz/60Hz
- Default output frequency range: 48Hz-51Hz at 50Hz; 58Hz-61Hz at 60Hz
- Power factor: > 0.99%
- Total harmonic distortion: THD < 5%
- Maximum units per branch: 1 units at 120VAC; 1 units at 230VAC

Efficiency:
- Peak efficiency: 95%
- Nominal MPPT efficiency: 99.5%
- Night power consumption: < 1W

Mechanical Data:
- Operating ambient temperature range: -40℃ to +65℃
- Storage temperature range: -40℃ to +85℃
- Dimension (WxHxD): 255 x 340 x 45mm (not include connectors and cables length)
- Net weight: 3.65kg
- Max current of AC bus cable: 20A
- Waterproof grade: IP66
- Cooling mode: cooling fan

Other Features:
- Connection: WiFi (cloud monitoring)
- Transformer design: high frequency transformers, without isolation
- Integrated ground: equipment ground is provided by the PE in the AC cable. No additional ground is required.
- Protection functions: isolated island protection, voltage protection, frequency protection, temperature protection, current protection, etc.
- Design compliance: EN IEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC55014-2:2021, EN IEC55014-2:2021

Package Included:
- 1 x Solar Inverter
