Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $200.92 | $196.82 | $190.67 | $182.47 | Contact US |

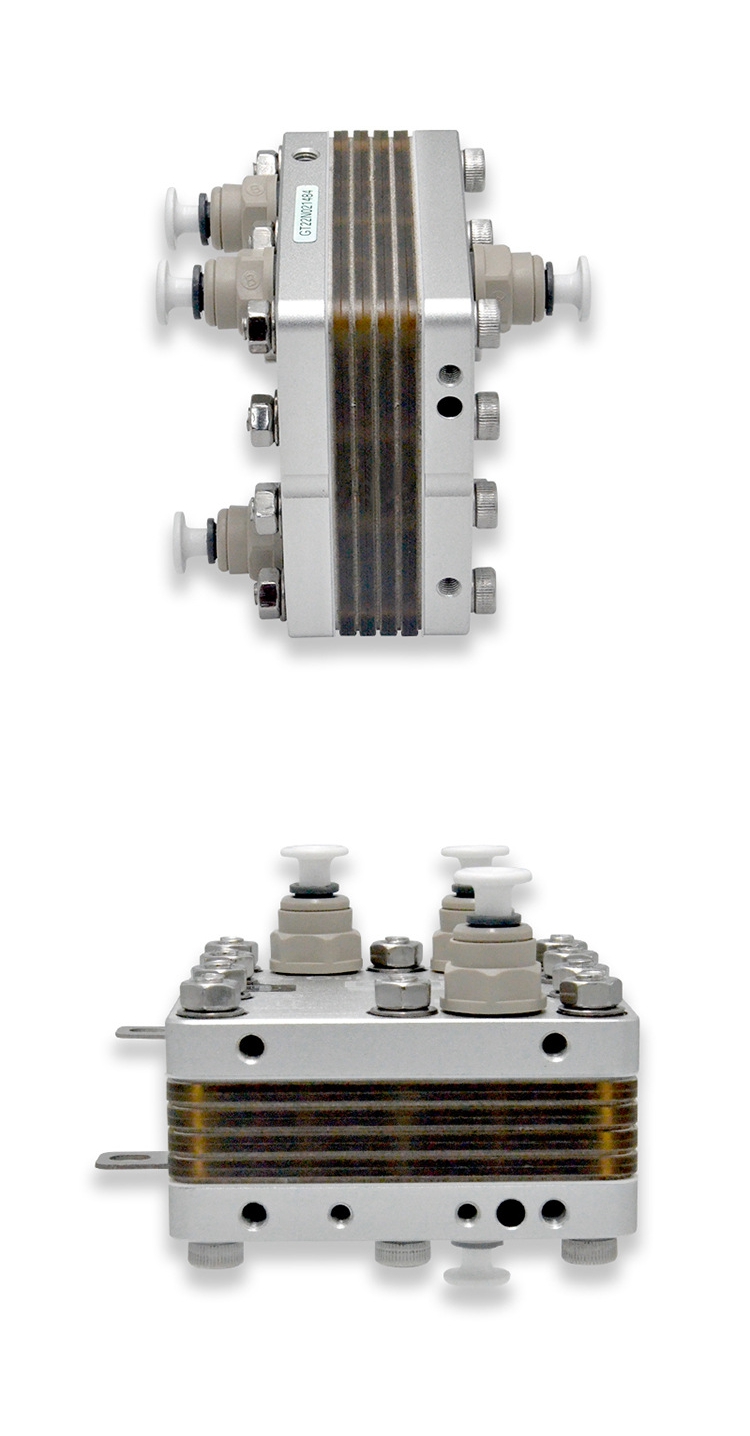

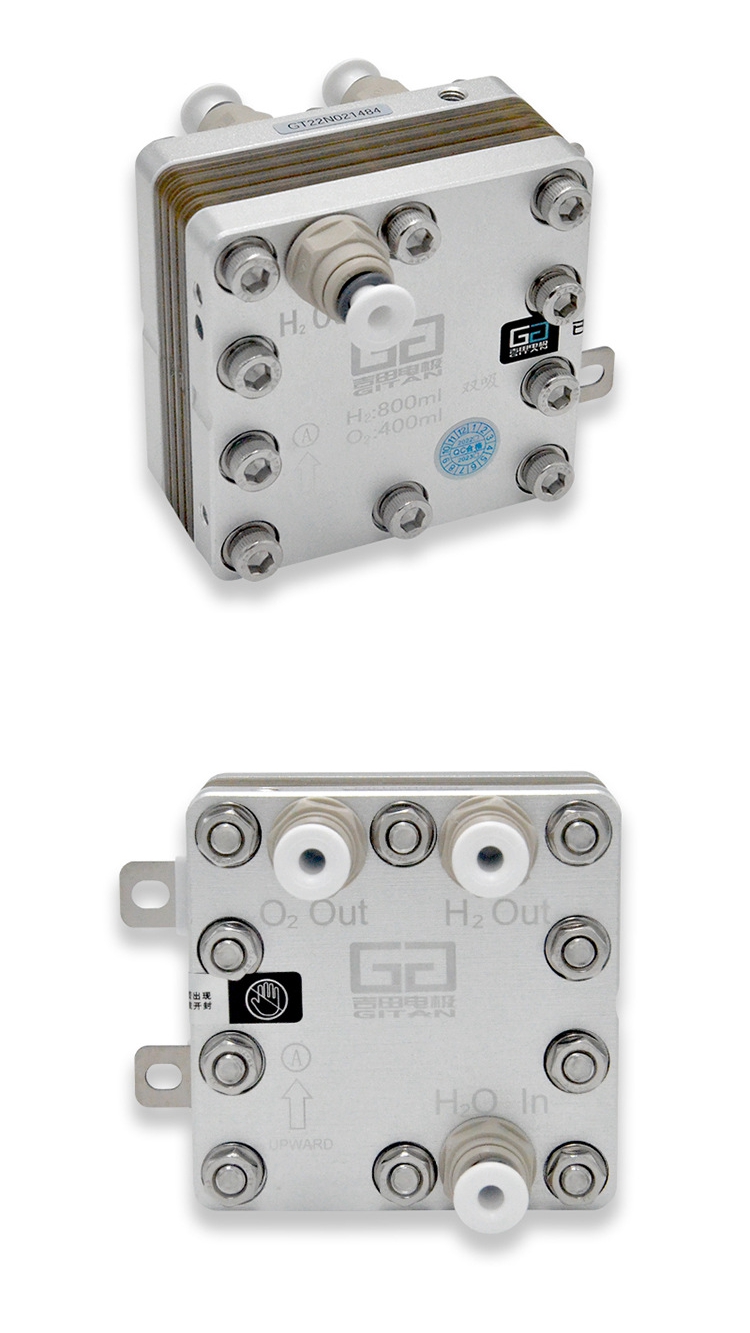

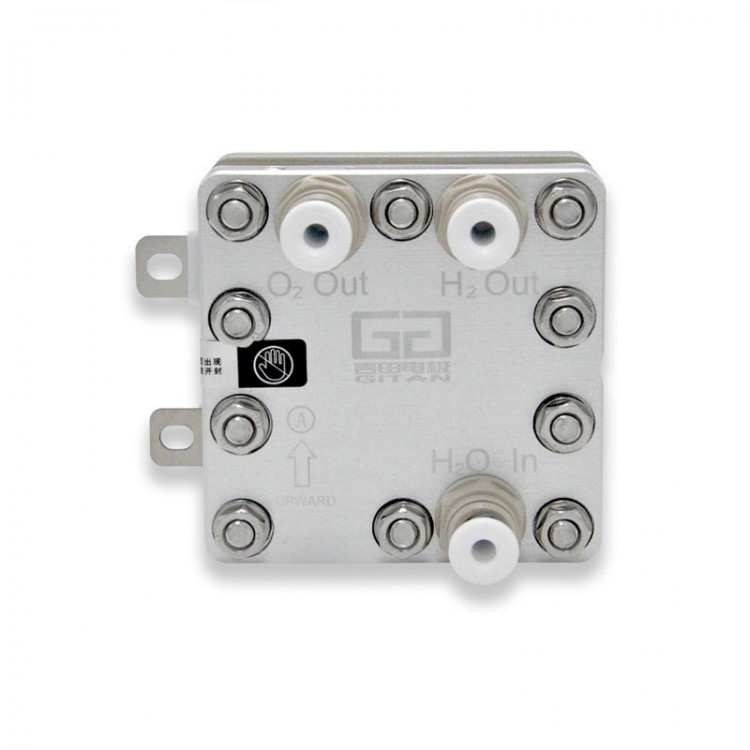

GT-A800A-4200 800ML Electrolytic Cell Module PEM Hydrogen Generator for Pure Water and Distilled Water
Specification:
- Model: GT-A800A-4200
- Hydrogen yield: 4x200 ± 10ml/min
- Working medium: pure water or distilled water, TDS < 5ppm
- Input water pressure: <0.2MPa
- Output pressure: 1.0MPa
- Water supply: water tank - module cycle between the water supply, water level difference needs to be more than 15cm
- Product size: 96 x 80 x 74mm
- Mounting hole size: 4 - M5
- Inlet and outlet diameter: 1/4 inch quick connector
- Power supply type: constant current power supply
- Input voltage: DC12 - 14V
- Input Current: 25 - 27A
- Surface temperature: <60℃
Package Included:
- 1 x Hydrogen Generator
