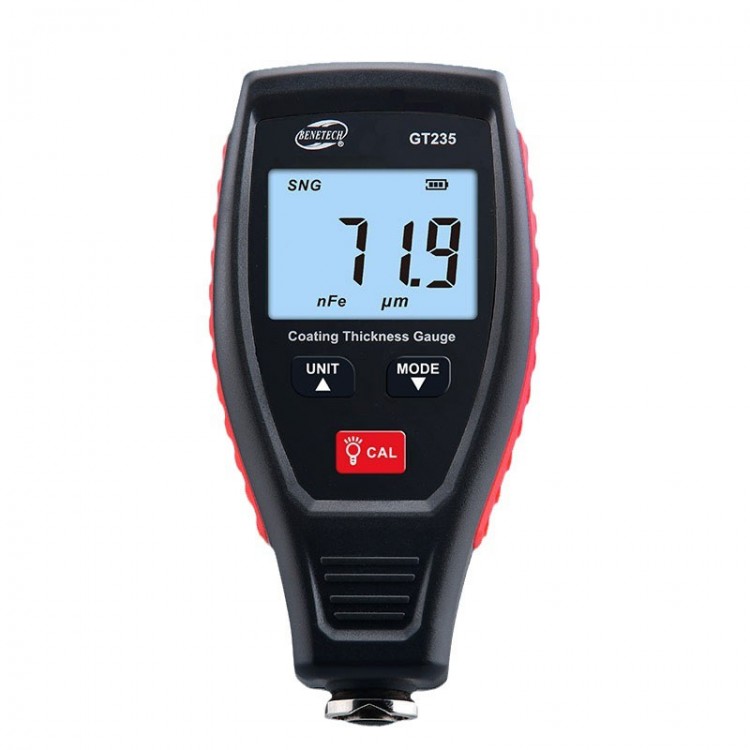

GT235 Coating Thickness Gauge with 0-1800μm Range for Iron and Aluminum & Automobile Paint Surface
Description:
GT235 coating thickness gauge can make a quick and effective measurement of the thickness of the non-metallic coating on the non-magnetic metal substrate and the thickness of the non-magnetic coating of the magnetic metal substrate. It can also automatically identify the magnetic metal substrate and non-magnetic metal substrate. It is widely used in the inspection field of automobile manufacturing, metal processing industry, chemical industry, commodity inspection, etc.
Features:
- Measuring the thickness of non-magnetic coating on the magnetic metal substrate
- Measuring the thickness of the non-metallic coating on the non-magnetic metal substrate
- Automatically identifying the non-magnetic metal substrate and magnetic metal substrate
- Large display screen with HD backlight and supports screen rotation
- Suitable for iron and aluminum
- Metric and imperial units
- Single measurement mode, continuous measurement mode and differential measurement mode
- Zero-point calibration and basic calibration
- Automatic shutdown
Specifications:
- Measurement Range: 0~1800μm/70.8mil/1.8mm
- Resolution: (0.1μm (<100μm), 1μm (≥100μm))/0.1mil/0.001mm
- Measuring Error: ±5μm (≤150μm); ±(3%H+1μm) (>150μm)
- Minimum Diameter of Magnetic Substrate: 12mm
- Minimum Thickness of Magnetic Substrate: 0.5mm
- Minimum Curvature Radius of Convex Magnetic Substrate: 2mm
- Minimum Curvature Radius of Concave Magnetic Substrate: 11mm
- Minimum Diameter of Non-magnetic Substrate: 50mm
- Minimum Thickness of Non-magnetic Substrate: 0.5mm
- Operating Temperature Range: -20 to 40℃ (It is recommended to calibrate the gauge again for use in different environments, especially for large temperature difference)
- Operating Humidity: 10~95%RH
- Overall Dimensions: 62mm x 27mm x 121.5mm/2.4" x 1.1" x 4.8"
- Weight: 105.03g/0.2lb
Package Included:
- 1 x Set of Coating Thickness Gauge
Packaging Details:
- Weight: 0.45kg
Note:
- 2pcs 1.5V AAA alkaline batteries are not included.
