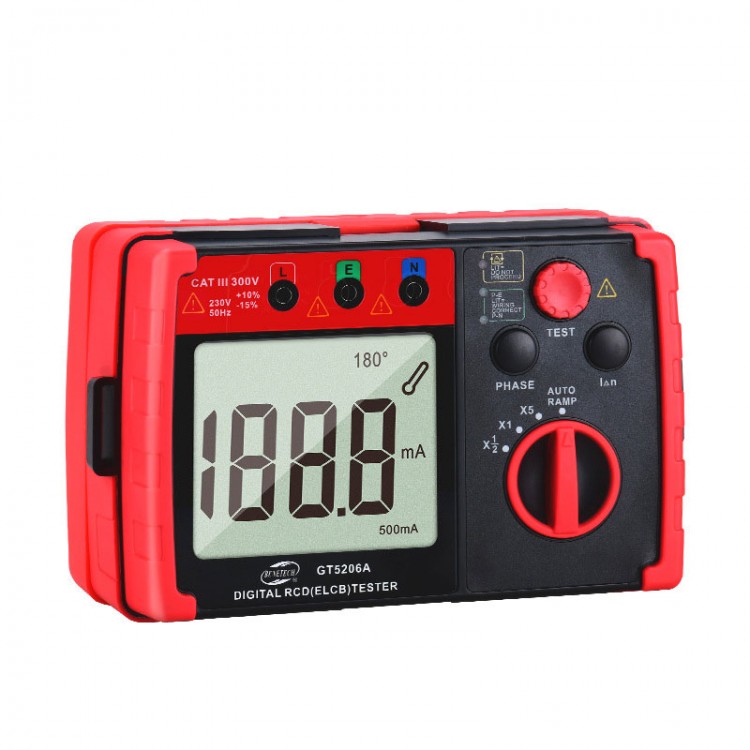

GT5206A RCD Tester (ELCB) Tester Residual Current Device Tester w/ AUTO RAMP & Automatic Data Hold
Description:
GT5206A RCD tester is controlled by an intelligent microcontroller chip. It boasts high precision, high reliability and high stability. AUTO RAMP function enables simultaneously testing action time and action current of fault. According to LCD icon prompts, there is an instruction to check whether the wiring is correct. After the test is completed, the measurement results will be automatically displayed. There are 0 ° and 180 ° phase options, which can detect the quickest trigger time. "OL" is displayed for over range. Furthermore, GT5206A is equipped with FUSE safety protection and CAT III 300V safety level.
Features:
- It is only suitable for single-phase 230V / 50Hz (with power supply voltage range
- Wiring check: Three LED indicator lights help you to check whether the wiring is correct or not. If two green indicator lights P-E and P-N are on, and red indicator light is off, then the wiring is correct. The test can only be triggered when the wiring is correct
- Phase angle selection: you can choose to start the test from positive (0 °) or from half cycle negative (180 °)
- "OL" is displayed for over range: when the test trip action time exceeds the maximum test time, the LCD will display "OL mS"
- Automatic data hold: After the test is completed, the displayed measurement results will be held for a certain period of time
- AUTO RAMP test: The AUTO RAMP function can test tripping current and time simultaneously.
- Shutdown alarm: After 3 minutes of operation, the instrument will let out a shutdown beep alarm
- Built-in FUSE security protection
- Power supply: directly supplied by the circuit under test (power supply 230V / 50Hz)
Package Included:
- 1 x RCD tester main unit
- 1 x Three-plug test lead
- 1 x User manual
- 1 x Cloth bag

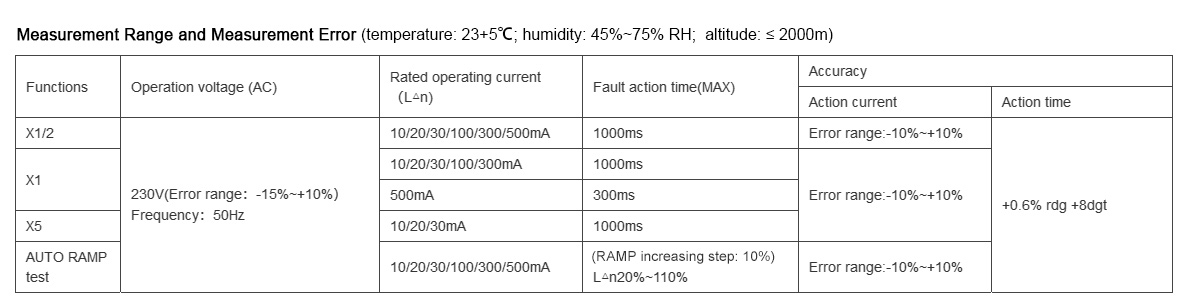

Other Parameters:
- Operating Voltage: 230V/50Hz (voltage range: 195~253V)
- Phase angle: With
- Wiring check: With
- Automatic data hold: With
- Working environment temperature: 0°C~40°C
- Working environment humidity: ≤80%RH
- Storage environment temperature: 20°C~60°C
- Storage environment humidity: ≤75%RH
- Power supply: directly supplied by the line to be tested (230V/50Hz power supply)
Packaging Details:
- Weight: 1.5kg
