Parameters:
Basic Parameters:
- Model Number: GTB-600
- Maximum Input Power: 600 Watt
- Peak Power Tracking Voltage: 22-50V
- Min / Max Starting Voltage: 22-55V
- Maximum DC Short-circuit Current: 30A
- Maximum Input Operating Current: 27.2A
- Ambient Temperature Range: -40℃ to 60℃
- Dimensions(L x W x H): 280 x 200 x 40mm
- Weight: 1.62kg
- Waterproof Level: IP65
- Cooling Way: Self-cooling
- Communications Mode: WiFi mode
- Power Transmission Mode: Reverse transfer, load priority
- Monitor System: Mobile APP, PC browser
- Electromagnetic Compatibility: EN50081.part1, EN50082.part1
- Grid Disturbance: EN61000-3-2 Safety EN62109
- Grid Detection: CE EN-50438
- Certificate: CE

Output Data:
Output Parameters @120V:
- Peak Output Power: 600 Watt
- Rated Output Power: 600 Watt
- Rated Output Current: 5A
- Rated Voltage Range: 80-160VAC
- Rated Frequency Range: 48-51Hz/58-61Hz
- Power Factor: >99%
- Max Unit Per Branch Circuit: 5pcs (Single-phase)

Output Efficiency @120V:
- Static MPPT Efficiency: 99.5%
- Maximum Output Efficiency: 95%
- Night Time Power Consumption: < 1W
- THD: < 5%

Output Data:
Output Parameters@230V:
- Peak Output Power: 630 Watt
- Rated Output Power: 600 Watt
- Rated Output Current: 2.6A
- Rated Voltage Range: 180-260VAC
- Rated Frequency Range: 48-51Hz/58-61Hz
- Power Factor: >99%
- Max Unit Per Branch Circuit: 10pcs (Single-phase)

Output Efficiency@230V:
- Static MPPT Efficiency: 99.5%
- Maximum Output Efficiency: 95%
- Night Time Power Consumption: < 1W
- THD: < 5%

LED Display:
1. Red light 3 second---Red LED light 3 second
while device starts , then in working condition;
2. Green flash fast---MPPT searching;
3. Green flash slow---MPPT + searching;
4. Red flash slow---MPPT - searching;
5. Green lights on 3s and off 0.5s---MPPT locked;
6. Red light steady---a. Islanding protection; b.Over-temperature protection; c.Over / low AC voltage protection; d.Over / low DC voltage protection; e.Fault Remarks:
LED flashing in the process of being working condition:inverters connected to AC & DC sides→Red LED light 3 second→Green LED flash fast(MPPT searching)→Green LED flash slow(MPPT + searching)/ Red LED flash slow (MPPT - searching) / Green LED lights on 3s and off 0.5s (MPPT locked).

Structure of Solar Power System

Installation:
Step1: Installation for fixed the inverter on the PV holder with the screws attached is as following:


Step2: Connect the two DC terminal of the PV to the inverter, positive to positive, negative to negative. Show below:

Step3: Open the waterproof cap on AC output side of the micro inverter, then plug to AC power line. Show below:

Step4: Plug the AC output line to main AC cable;
Step5: Repeat the first step to the third step to complete the installation of micro inverters;
Step6: Finally, please connect the AC main cable to the utility grid.

Connection:

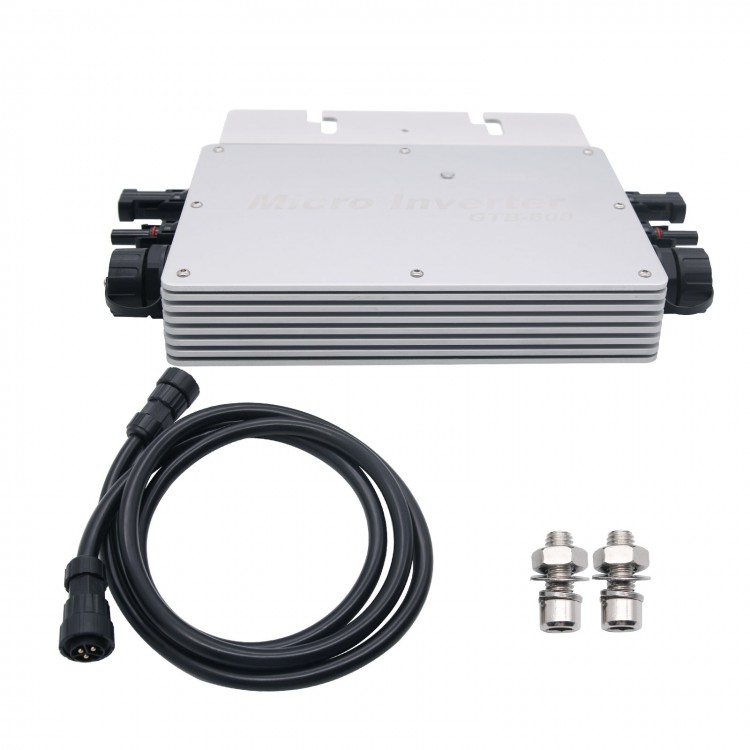

Package Included:
- 1 x Solar Micro Inverter
- 1 x Warranty Card
- 1 x User Manual
- 1 x Certificate of Quality
- 1 Pouch of Screw for Micro Inverter Installation
- 1 x AC Cable

Notes:
-Please connect the inverter following the operation instruction show above. If you have any question, please contact with relative persons.
-Non-professionals do not disassemble.Only qualified personnel may repair this product.
-Please install inverter in the low humidity and well- ventilated place to avoid the inverter over-heating, and clear around the inflammable and explosive materials.
-When using this product, avoid children touching, playing, to avoid electric shock.
-Connected solar panels, battery or wind generators DC input DC power supply cable.
