GTI300W120V/230V AC Solar Grid Tie Micro Interver Pure Sine Wave Power

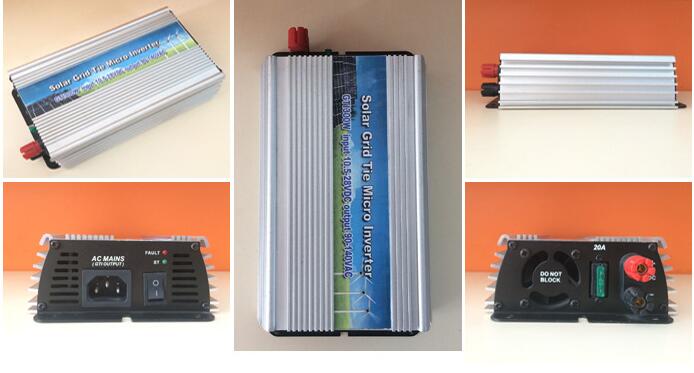

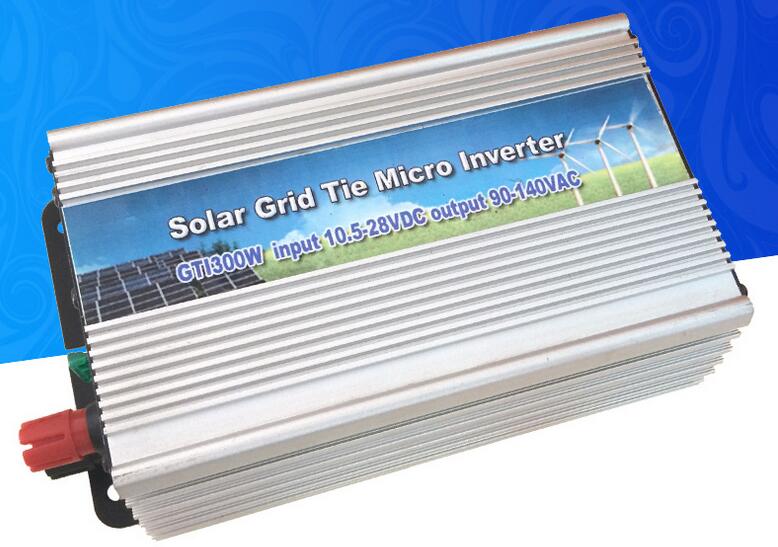

GTI300W120V/230V AC Solar Grid Tie Micro Inverter Pure Sine Wave Power

System Function:

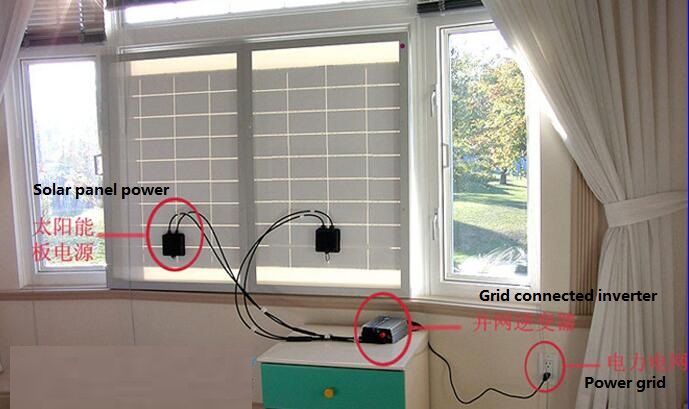

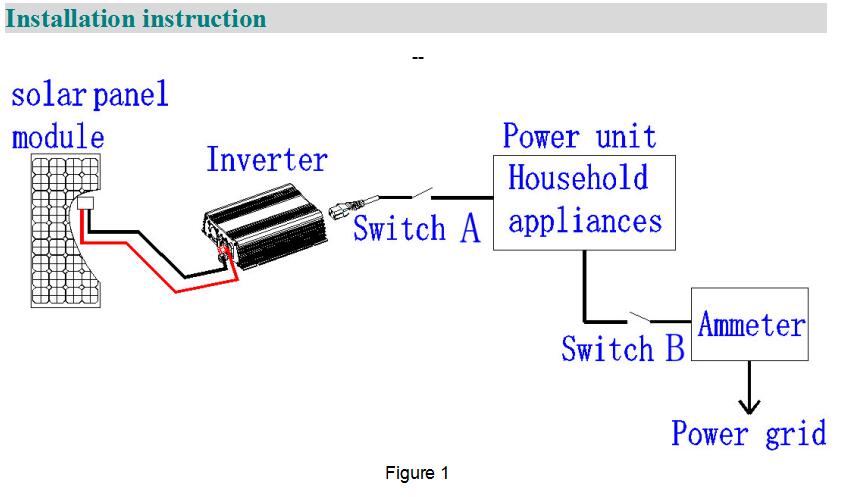

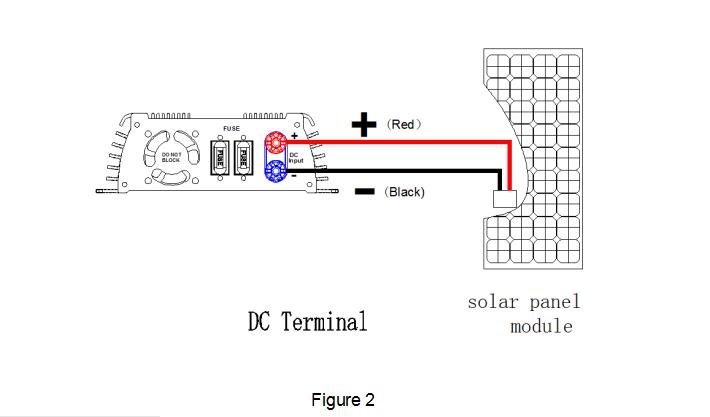

- Directly connected to the solar panels (do not need to connect the battery)
Using precise MPPT function, APL functions, the inverter automatically adjust the solar panels of maximum output power，simply connect the solar panel to the grid inverters. Do not need to connect the battery.
- AC 0 angle with high precision auto-detection:
AC phase angle of 0 through isolation amplifier then input to the MCU for high-precision detection and analysis. The phase shift rate is less than 1%, thus achieve high-precision with phase modulation AC output together.
- Synchronous High-frequency Modulation
In the process of the grid, usually adapt the same phase angle in parallel. (ie, When the two-phase alternating current total is equal to 0.Use switch to combination the two AC fusion) and the product is rectified AC half-frequency AC to 100Hz first, then the machine use the high frequency current in the circuit and semi-100Hz frequency alternating current generated combination, to achieve high-frequency modulation.

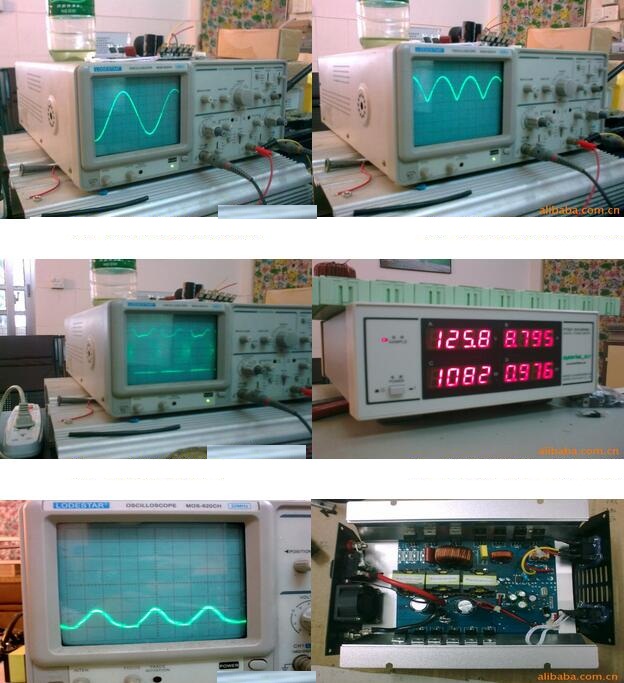

- Pure Sine Wave Output
Use SPWM directly to make pure sine wave output.
- Automatic Sensing Function Solar Luminosity
Use the latest luminosity perception operation technology. The different illuminate angle and intensity of the solar panel will produce different current output. Use advanced CPU to operate the different illuminance and the data can be directly displayed on the LCD. Then you can visually see the sense of the strength of the sun unit. Used more convenient.
- Power Automatically Locked (APL)
In different current fluctuations, we should use the MPPT function. When the MPPT function adjusted to the maximum power point, the product automatically powers locked in maximum power point, then made the output power more stable.
- Maximum Power Point Tracking (MPPT)
Because the current intensity and the voltage changes at any time, if there is no power point tracking, there will be a lot of problems. In the past time, usually adopt a solar controller, but this product uses high-precision MPPT operation power, automatic and immediate adjust the solar panels output power at the maximum output point, then achieve a stable output purposes.
- Automatically Adapt To Different Load Power Factor
Adapt to any of the power load.
- Constant Current, Constant Power
This product is constant current, constant output power, without any overload, over-current phenomenon.
- Automatically Shut Down When The Power Output Of a Fault
When the city power system is in failure, the inverter will automatically turn off the output.
- Current Limit Protection
    Current limit

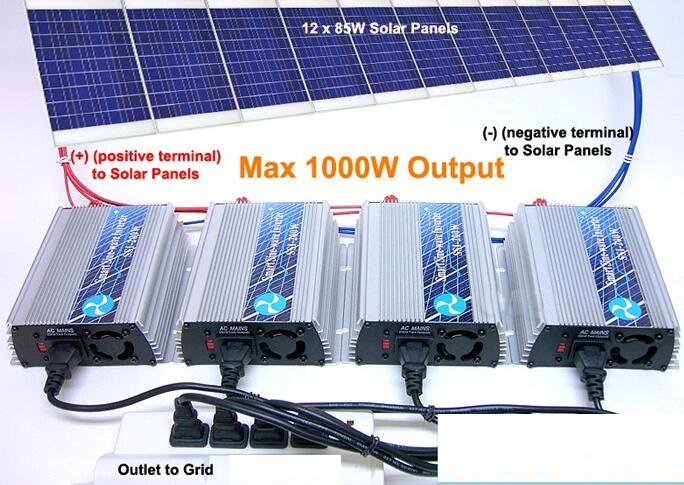

- Stack Multiple Machines
    Multiple small power inverters in parallel can achieve large output power.
- High-Frequency High Conversion Rate
Adapt high frequency converter, the output more efficient.

Product Parameter:
Grid-series models:300W
Recommend use solar panels:420Wp/Vmp=18V/Voc=21V
DC Maximum Input Power:400W
DC maximum voltage:VpvDC30.2VDC
DC voltage range:Vpv 10.5V~28VDC
Maximum output power factor:99%
Maximum input current:20A
AC output power:300W
AC maximum output power:300W
Anti-voltage protection:Fuse
AC standard voltage range:90~140VAC/180~260VAC
AC frequency range:55Hz~63Hz/ 45Hz-53Hz
Output current total: THDIAC <5%
harmonic distortion:<1%
Phase:VAC;f AC
Islanding protection: Current-limiting
Output short circuit protection: LED
Show:Wall hanging
Installation:Wall hanging
Cooling: Fan
Standby Power:<1W
Night Power:<1W
Ambient temperature range:-25 ℃~60℃
Humidity:0~99%(Indoor Type Design)
Waterproof:Indoor Type Design
Electromagnetic Compatibility:EN50081.part1   EN50082.part1
Power System Disturbance:EN61000-3-2  EN60950-1
Network test:DIN VDE 1026
Certificate:CE

Package List:
- 1 x GTI300W120V/230V AC Solar Grid Tie Micro Inverter
- 1 x Standard AC wire
- 1 x User manual
