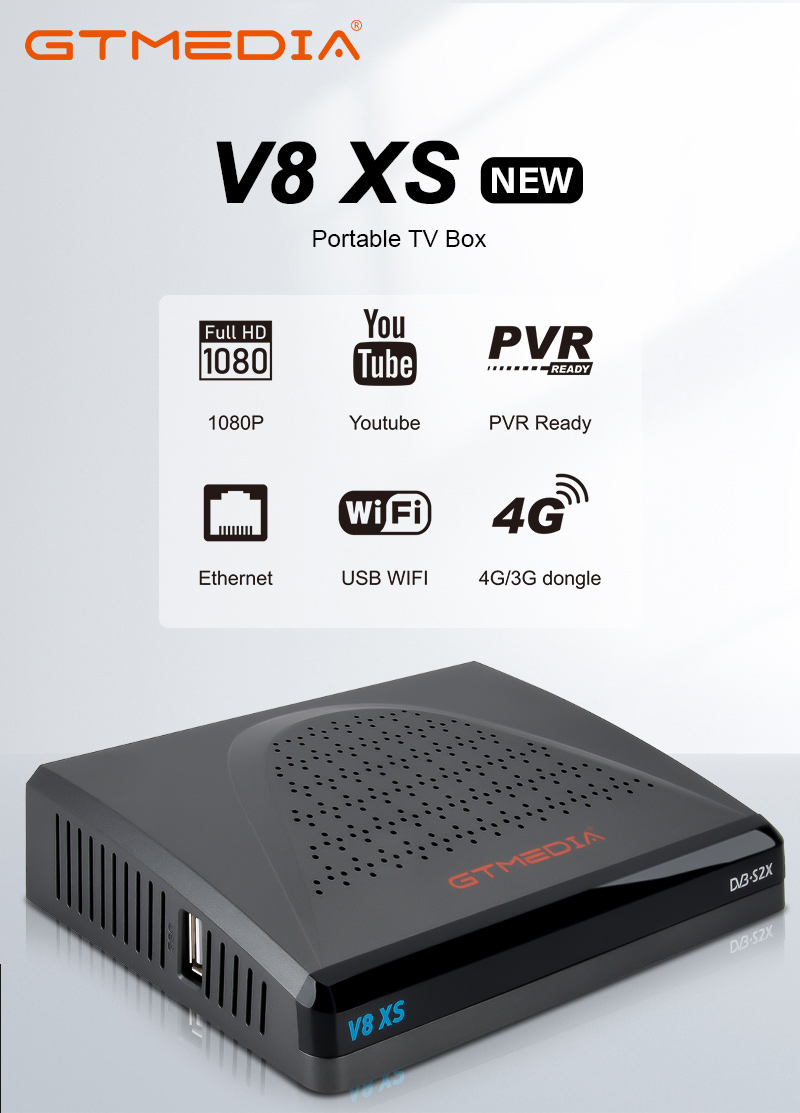

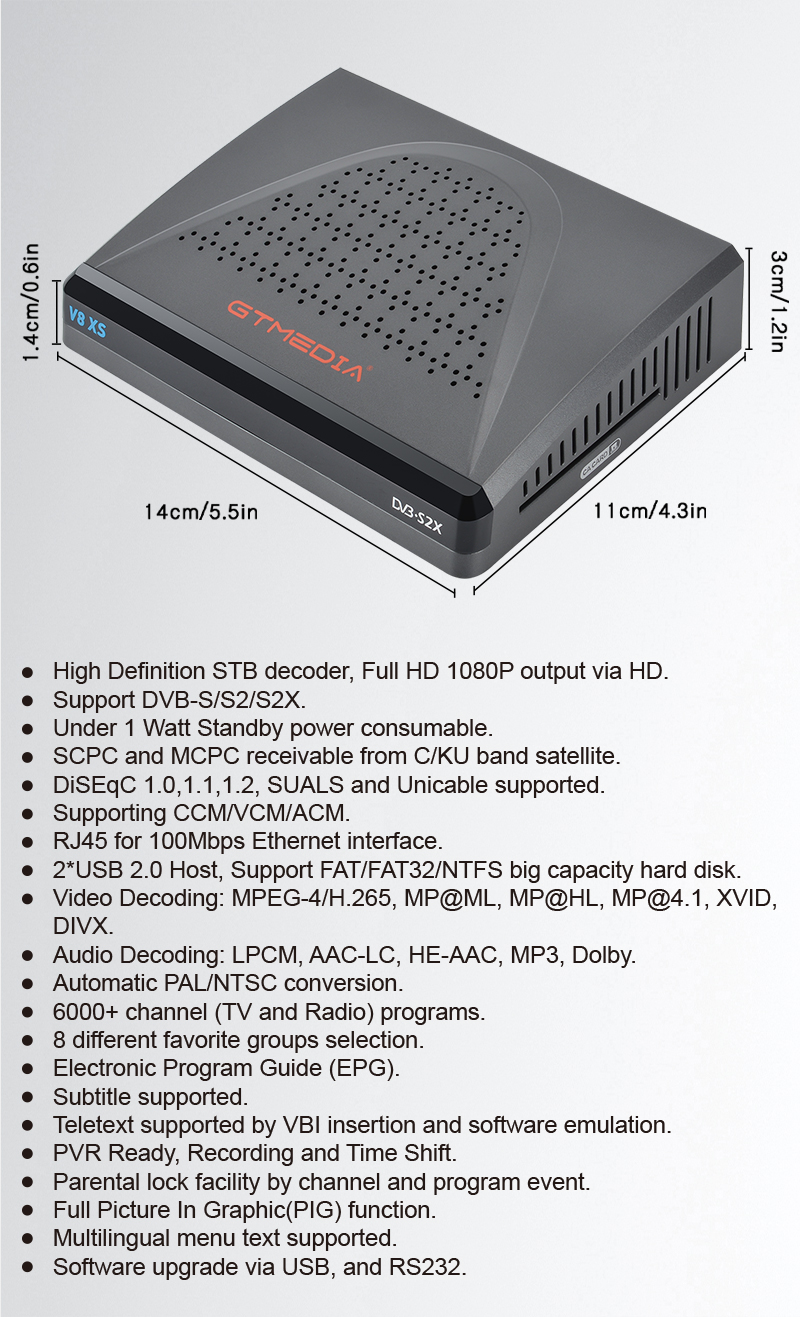

GTMEDIA V8 XS Digital Satellite TV Receiver Box Set Top Box for DVB-S2X/S2/S Youtube Football World

GTMEDIA V8 XS Digital Satellite TV Receiver Box Set Top Box for DVB-S2X/S2/S Youtube Football World

Features:
1. Support DVB-S/S2/S2X, VCM/ACM/multi-stream/T2-MI, AVS+, H.265 8bit 10bit
2. Support smart CA card
3. Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support
4. Support for Online Movie. For MEGOGO, TED, You porn, Porn hub, REDTUBE, Porn Tu be, Youtube, allplay, I TV, TikTok, Football World, etc.
5. Support APPS (for Stalker Youtube IPTV Weather)
6. Support for Network Sharing Cccam, Newcam and Mgcam
7. Technical support website: www.freesat.cn

Specifications:
Hardware Specifications:
- Panel display: 4-digit white LED display
- LED Indicator: Power ON: Green; Standby: Red
- Button: NOT
- LAN: 10/100 Ethernet with EPHY
- IR: Exit IR for 38KHz. Infrared Remote control

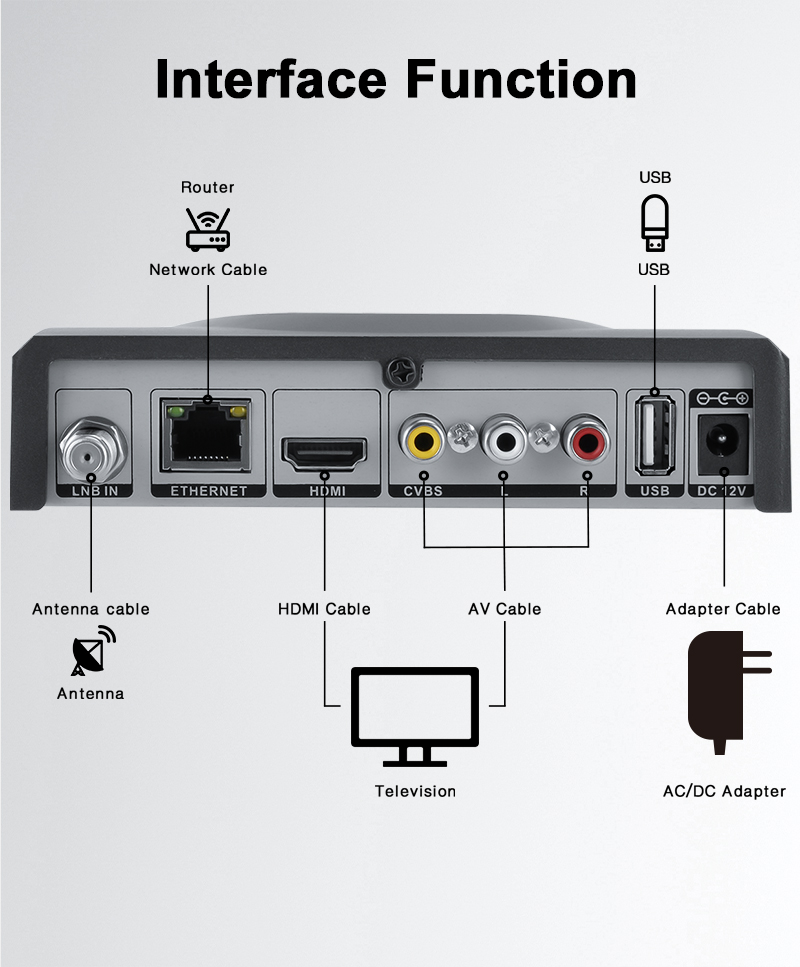

- Rear Panel: LNB IN (Frequency Range: 950MHz to 2150MHz), HD OUT (HD 1.4), AV OUT (RCA*3), 2*USB HOST, 1*RJ45, 1*CA Card slot and DC IN (DC12V/1.5A)

Main Chip Sets:
- CPU: NRX8600
- Flash Memory: 64MB SPI Flash
- DDR2 Memory: 1G bit SDRAM

TS Demux:
- Demultiplexer: ISO/IEC 13818-1
- Sampling rate: Up to 122MHz

Video Decode:

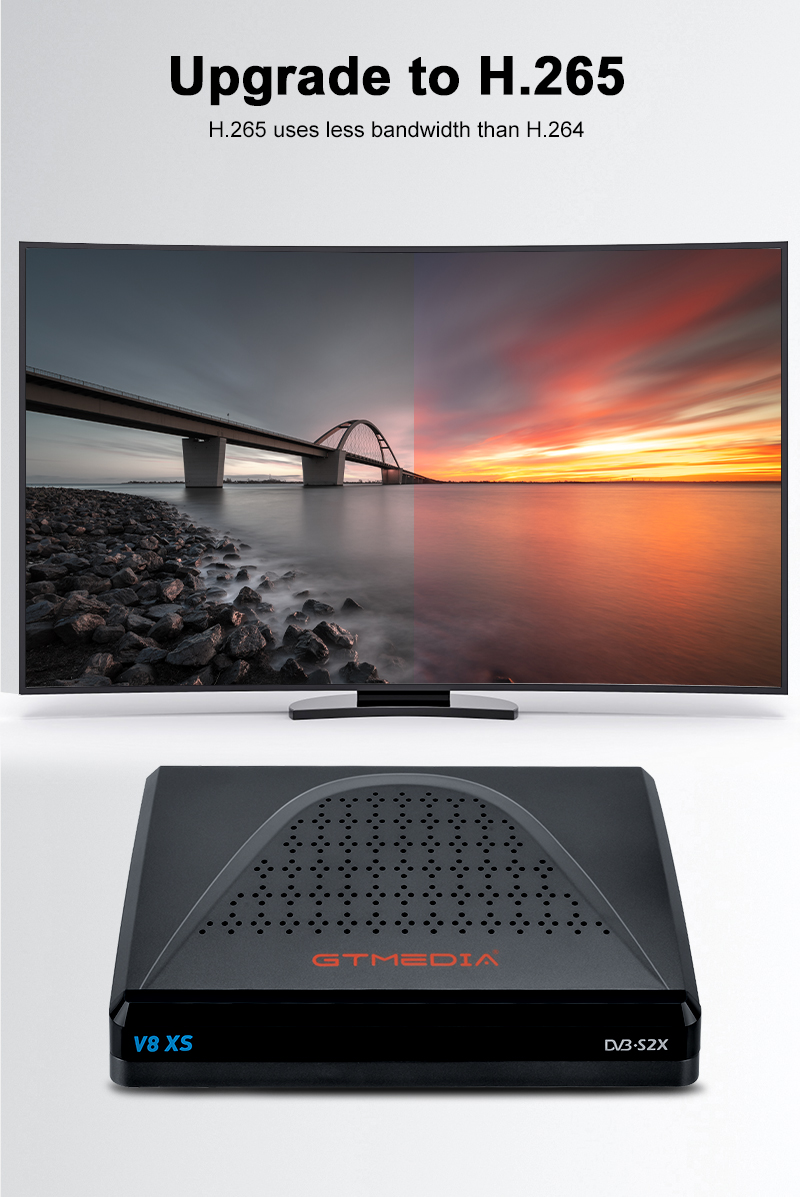

- Video Decode: Advanced High Definition video decoding. MPEG1/MPEG2/MPEG4/H264/H265/AVS/AV. S+/VC1, MPEG1, MPEG2. MPEG4, H.264/MPEG4 AVC, VC1, H.265/HEVC on both SD and HD sources
- TV System: Automatic PAL/NTSC conversion
- Aspect Mode: 4:3 PS 4:3LB 16:9 Full Screen

Audio Decode:
- Audio Decode: Embedded high performance audio digital signal processor supports MPEG-1 Layer I/II/III, MPEG-2 Layer II and WMA audio playback and processing
- Sound Mode: LEFT/RIGHT/STEREO/MONO
- Sampling Frequency: 32KHz, 44.1KHz and 48KHz
- Audio: PCM RAW Mute

DVB-S/S2 Specifications:
- System standard: EN300421, ETS 302 307
- Frequency Range: 950~2150MHz for DVB-S/S2/S2X baseband demodulator
- LNB Power and Polarization: DiSEqC1.0/1.1/1.2/USALS Motor fully support. Support Unicable, 13/18V DC at 400mA MAX, 22KHz±0.4KHz (0.6V±0.2V)tone, with overload protection
- Input Level Range: -80dBm to -20dBm (average power)
- Symbol Rates: DVB-S QPSK, DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
- DVBS2 Demodulator: Support constant coding and modulation (CCM)
- Carrier frequency acquisition range: ±5MHz for symbol rates above 3Msps and ±3MHz for the remaining symbol rates
- Symbol Rates: 1-55MSps
- Roll-off factors: Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
- Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 for DVB-S, 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates
- ANT. Connector: Connector: IEC TYPE F. Input Impedance: 75 Ω

Software Features:
- Standard: Embedded high performance DVB-S/S2/S2X demodulator.
- Channel Search: Support automatic network search for new added transponders
- Channels Number: 5000+ channels TV and Radio programmable
- Channel: Recording one channel, you can view another channel under the same TP. Various channel editing function(favorite, move, lock, skip, delete, rename, find and sort)
- Favorites: 8 different favorite groups selection
- OSD Language: English, French, Deutsch, Italian, Spanish, Portuguese, Russian, Polish, Swedish, Thai, Indonesia, etc.
- OSD Color: 32-bits OSD with anti-flickering
- OSD Setting: Support OSD Timeout and Transparency, Subtitle Display
- Other Setting: Sets up multiple habitual operation Settings
- Parental Ctrl: Parental control for channels
- Easy Menu: Plug and play. With an easy to use Menu System
- EPG: Fully support to 7 days Electronic Program Guide (EPG)
- Subtitle: support DVB EN300743 and EBU
- Teletext: support DVB ETS300472 by VBI
- Software upgrade: Software upgrades through USB port
- Time Set: Time set by GMT offset automatic and manual. Summer Time supported
- Timer: 5 event timers, off/Once/Daily/Weekly Mode

USB Decode:
- USB 1.0/2.0: Support FAT/FAT32/NTFS big capacity hard disk
- PVR Option: USB 2.0 for PVR, TIMESHIFT, media files playback
- Media Codec: TS, mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files
- Audio Codec: WMA, MP3
- Photo Codec: JPG, BMP, PNG, GIF
- USB WIFI: USB WIFI MT6701

Physicals:
- Power Supply: AC 100V～250V, 50/60Hz
- Power Consumption: 10W for operation and <1 W for standby mode
- Temperature: 0℃ to +45℃ for operation; -10℃ to +60℃ for storage
- Humidity: 20~90%, non-condensed

Package Included:
- 1 x Digital satellite TV receiver
- 1 x Remote control
- 1 x Power adapter
- 1 x HDMI cable
- 1 x User manual
- 1 x Warranty card
