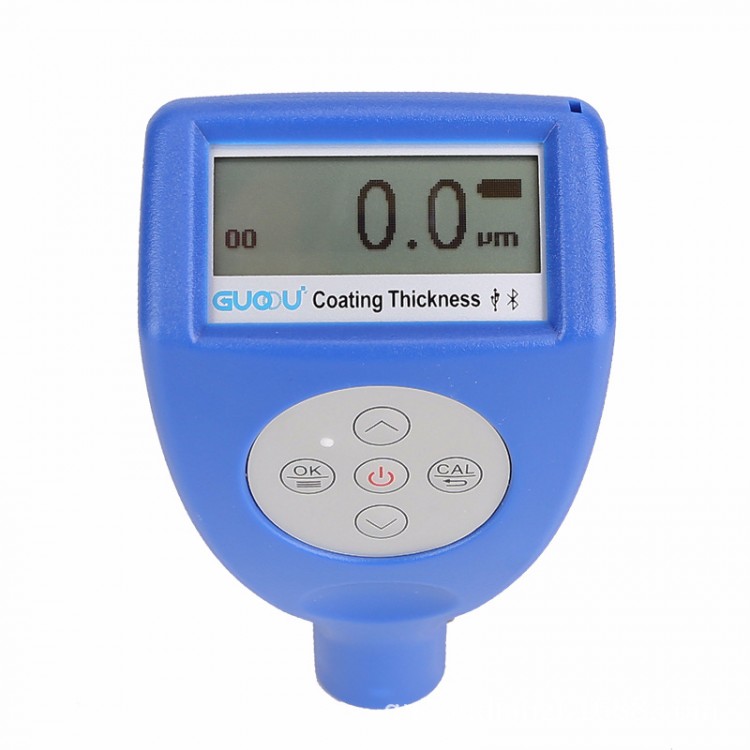

GTS810NF Aluminum Substrate Bluetooth Eddy Current Coating Thickness Gauge Measuring Range 0~1500μm

GTS810NF Aluminum Substrate Bluetooth Eddy Current Coating Thickness Gauge Measuring Range 0~1500μm

Description:
Based on the second-generation functions, the third-generation Bluetooth coating thickness gauge adds functions such as storage, Bluetooth, USB, backlight, red and green dual-color LED indicators, and menu operations. It comprehensively strengthens the testing of software and hardware, high and low temperature, anti-drop, probe wear, test speed, test stability, voltage stability, etc. It can automatically identify magnetic or non-magnetic substrates, and then adopt the corresponding test method, which is suitable for various measurement environments. It can measure the thickness of the non-conductive coating on the non-magnetic substrate and the non-magnetic coating on the magnetic substrate.

The eddy current coating thickness gauge is a non-magnetic instrument with a wide range of applications. Its technical parameters fully comply with national standards.

This instrument is a portable coating thickness gauge for eddy current split bodies, which can measure coating and coating thickness quickly, without damage, and accurately. It can be used in laboratories and engineering sites. This instrument can be widely used in the automotive industry, manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. It is an indispensable instrument for the material protection profession.

NFe quality probe detects the thickness of all insulating coatings, such as paint, plastic, porcelain, etc. These coatings must be applied to non-magnetic metal substrates such as aluminum, copper, brass or stainless steel.

Functions:
● The magnetic thickness measurement method is used to measure the thickness of the non-magnetic covering layer on the magnetic metal substrate;
● Quickly measure and display the value.
● Negative number display function to ensure the accuracy of the zero point calibration of the instrument and improve the test accuracy;
● Two shutdown methods: manual shutdown and automatic shutdown;
● Low voltage prompt;
● Micro power consumption design, less than 10 microampere current in standby mode;
● Measurement method: N eddy current;
● Graphic menu operation, rich information prompt, easy to operate;
● USB and Bluetooth data transmission: For Windows upper computer, Android, iOS App. Real-time display of measurement results, with data statistics and browsing functions;
● Data storage and data browsing;
● Backlit dot matrix display, red and green LED indicators, buzzer prompt sound;
● Single point measurement, continuous measurement;
● The minimum operating temperature of the instrument is -20℃, and the maximum is 70℃;
● The abrasion resistance of the probe is not less than 800,000 measurements;
● Improve the shell and internal structure design to enhance the product's anti-fall and impact resistance;
● Improve hardware circuits and algorithms: enhance high and low temperature adaptation and accuracy, and enhance the recognition of substrates of different thicknesses and shapes;
● There are buzzer prompts during operation, red light and green light prompt;
● Single-point calibration and two-point calibration and five-point calibration can be used for calibration;
● The upper and lower limits can be set to exceed the limit alarm function.

Specifications:
- Power supply: USB 5V or 2 AA batteries (batteries are not included)
- Operation method: graphical menu button operation
- Human-computer interaction: buttons, backlit dot matrix screen, indicator light, buzzer
- Data transmission: USB, Bluetooth
- PC software: For Windows PC, Android App client, iOS App client
- Applicable occasions: insulating coating on conductive and non-magnetic substrate
- Measuring range: 0~1500μm
- Resolution: 0.1μm (0~99.9μm), 1μm (100~1500μm)
- Minimum curved surface: convex 5mm/concave 5mm
- Minimum measuring area: 10 x 10mm
- Thinnest base: 0.4mm
- Use environment: temperature -10 to 50℃, humidity 10-85%RH
- Measurement accuracy error: zero-point calibration ±(1+2%H); multi-point calibration ±(1+2%H). H means coating thickness
- Product size: 126 x 69 x 35mm/5 x 2.7 x 1.4 inch (excluding the size of probe)

Package Included:
- 1 x Coating Thickness Meter
- 5 x Standard Films [50μm, 100μm, 250μm, 500μm, 500μm (optional: 12μm, 25μm)]
- 1 x Base Substrate (Aluminum base)
- 1 x Manual

Note:
- It can also be powered by 2pcs AA batteries which are not included.

High Quality Products:
● Test response speed can be maintained 1 to 2 times per second;
● Scientific zero-return operation mode, as long as the probe touches the substrate, it can be zeroed if it is suspended;
● Positive and negative numbers display the test value, and it is clear whether the zeroing is in place at a glance, which improves the test accuracy;
● Add temperature drift control system and high-end chip control system, which has relatively good linearity, stability and repeatability;
● In addition to the single-point calibration and two-point calibration functions, three-point calibration and five-point calibration are added, and factory calibration is restored. When the measurement head of the instrument exceeds the normal range due to long-term wear and tear, the user can directly re-enter data to the instrument to repair the instrument's probe system, restore measurement accuracy, and save return time and transportation costs.
